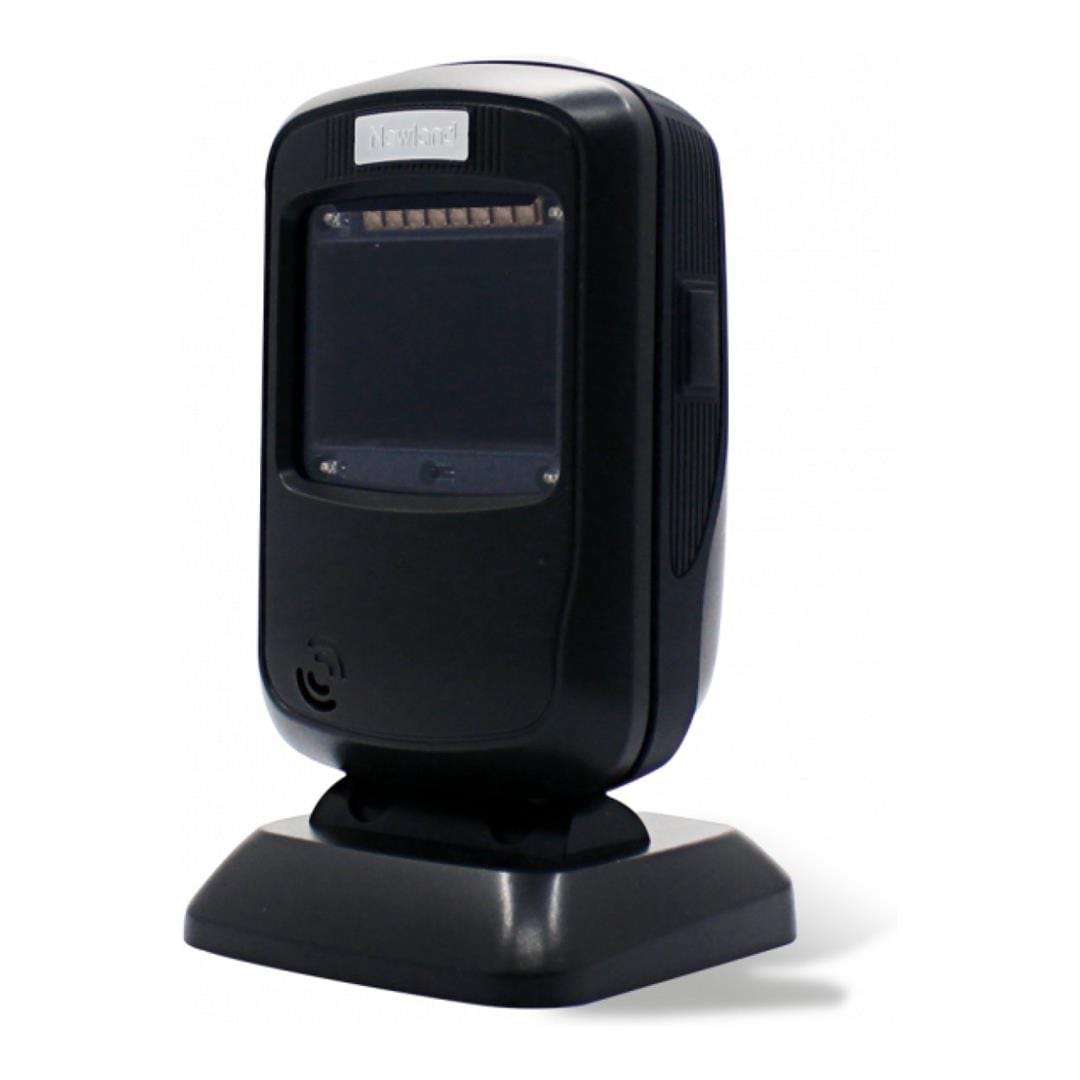

Newland FR40 Koi Fixed POS Presentation Barcode Scanner Black NLS-FR4080-20
As the first megapixel scanner on the market, the Koi reads 1D and 2D barcodes, including Aztec, with speed and ease. Equipped with a switch to toggle between paper and screen modes you are assured to have the best optimized reading every time.
With user-friendliness being at the forefront of POS systems, the FR40 Koi features soft illumination with a 10-degree tilt that ensures comfort for both employees and customers. Combined with its superior performance and level of comfort, theFR40 Koi is the perfect addition to any POS system.
First megapixel presentation scanner
At the top of the line, the FR40 Koi reads 1D and 2D barcodes, including Aztec, with speed and accuracy. It is the first presentation scanner on the market that includes a megapixel camera and is capable of reading even the most complex codes. This makes it the perfect solution for applications like POS systems in retail and pharmacy, ticket verification and more.
Unmatched flexibility
With a switch to toggle between paper and screen mode, the FR40 Koi is ready for any barcode that it is presented with. This added flexibility, leaves this hardware unaffected.
Comfortable Illumination
With a 10° angle and soft illumination, the FR40 Koi guarantees comfort to both customers and employees. When facing outwards, the illumination will not draw unnecessary attention.
IP52 rated sealing
With an IP52 rated seal, the FR40 Koi is protected against dust, water and other contaminants.
1.2 drop resistance
The FR40 Koi withstands multiple 1.2m drops to concrete (six sides, one drop per side).
IR trigger
The IR sensor in the FR40 Koi enables the speedy capture of any barcode presented to it, markedly increasing output and productivity.
Specifications
1D: All major 1D symbologies, including EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar, Code 39, Code 11, MSI-Plessey, Plessey.
2D: All major 2D symbologies, including PDF417, Data Matrix, QR Code, Micro QR Code, Aztec.
Image Sensor: 1280x800 CMOS
Illumination: White LED
Depth of Field EAN 13 (13mil): 10-210mm
Depth of Field QR (15mil): 10-180mmF
ield of View Horizontal: 51°
Field of View Vertical: 32°
Scan Angle Roll: 360°
Scan Angle Pitch: ±50°
Scan Angle Skew: ±45°
Minimal Print Contrast: 25%
Motion Tolerance: 2.5m/s
Current 5VDC Operating: 219mA (typical)
Dimensions (mm): 83(W)x81(D)x148(H)mm
Input Voltage: 5VDC±5%
Interfaces: RS-232, USB
Notifications: Beep, LED indicator
Power Consumption: 1041mW (typical)
Weight: 293g
Operating Temperature: -20°C to 60°C
Storage Temperature: -40°C to 70°C
Humidity: 5% to 95% (non-condensing)
Electro Static Discharge (ESD): ±14 kV (air discharge), ±8 kV (direct discharge)
Drop: 1.2m
IP Rating: IP52
