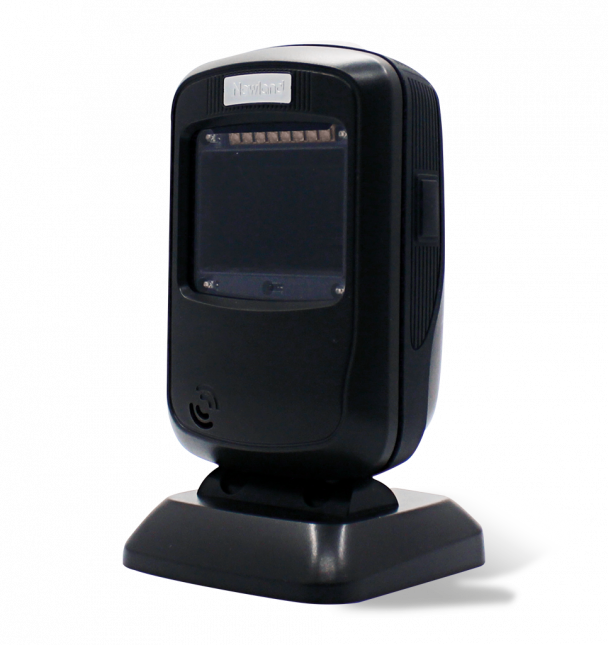

Newland FR40 Koi Barcode Scanner Megapixel Precision for POS & Self-Service
The Newland FR40 Koi is a high-performance presentation barcode scanner designed for fast-paced retail, hospitality, healthcare, and entertainment environments. As the first megapixel presentation scanner on the market, it delivers exceptional accuracy when reading both 1D and 2D barcodes, including complex formats like Aztec.
Its dual-mode toggle allows seamless switching between scanning from paper or mobile screens, ensuring optimal performance in any scenario. With soft illumination, a 10° tilt angle, and infrared auto-triggering, the FR40 Koi offers a comfortable and intuitive experience for both customers and staff.
Built to last, it features IP52-rated sealing, 1.2m drop resistance, and supports USB and RS232 interfaces for flexible integration into POS systems and kiosks.
Key Features:
- First megapixel presentation scanner for 1D & 2D barcodes
- Toggle switch for paper vs. screen scanning optimization
- Infrared sensor for fast auto-triggered scanning
- Soft illumination with ergonomic 10° tilt for user comfort
- IP52-rated housing with 1.2m drop resistance
- Dual interface: USB & RS232
- EasySet software for quick configuration
- 5-year manufacturer's warranty
Ideal for: Retail checkout, pharmacy counters, loyalty programs, ticketing kiosks, and healthcare reception desks.
Technical Specifications
Category | Specification |
|---|
Barcode Types | 1D: EAN-13, UPC-A/E, Code 128, Code 39, ITF, Codabar, GS1, etc. |
| 2D: QR Code, Data Matrix, PDF417, Micro QR, Aztec |
Image Sensor | 1280 × 800 CMOS |
Illumination | White LED |
Depth of Field | EAN-13 (13mil): 10210mm; QR (15mil): 10180mm |
Field of View | Horizontal: 51°; Vertical: 32° |
Scan Angles | Roll: 360°; Pitch: ±50°; Skew: ±45° |
Motion Tolerance | 2.5m/s |
Print Contrast | ?25% |
Interfaces | USB, RS232 |
Power Supply | 5VDC ±5% |
Operating Current | 219mA (typical) |
Power Consumption | 1041mW (typical) |
Dimensions | 83 × 81 × 148 mm |
Weight | 293g |
Notifications | Beep, LED indicator |
Operating Temp | -20°C to 60°C |
Storage Temp | -40°C to 70°C |
Humidity | 5%95% (non-condensing) |
Drop Resistance | 1.2m to concrete |
IP Rating | IP52 |
ESD Protection | ±14kV (air), ±8kV (direct) |
Configuration Tools | EasySet software |
Certifications | FCC Part 15 Class B, CE EMC Class B, RoHS |
Warranty | 5-Year Manufacturer's Carry-In Warranty |
