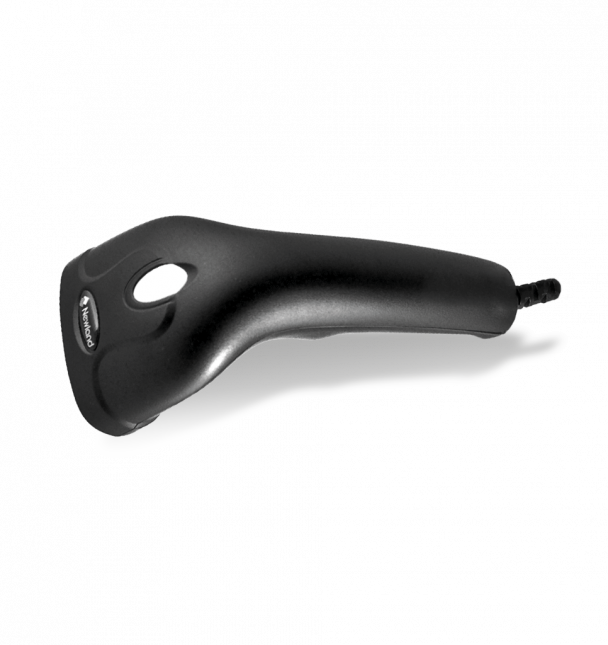

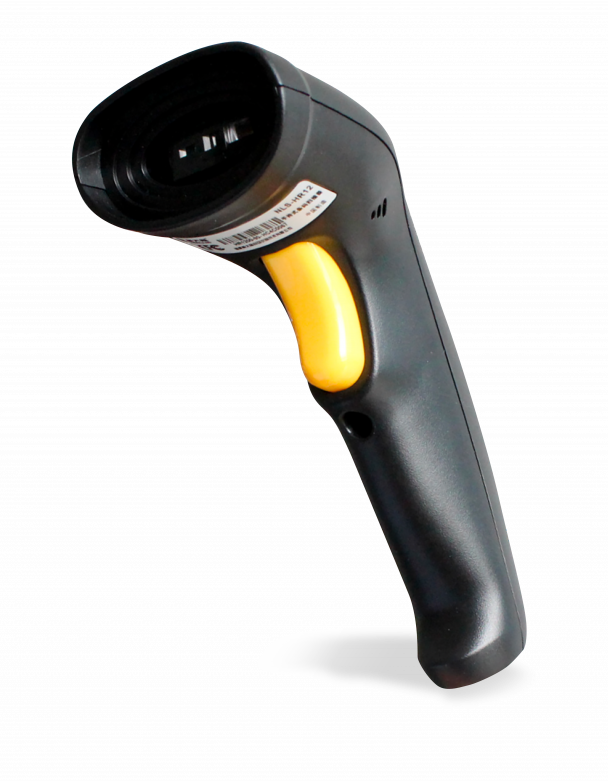

Newland HR12 Anchoa Fast, Reliable, and Budget-Friendly Barcode Scanning

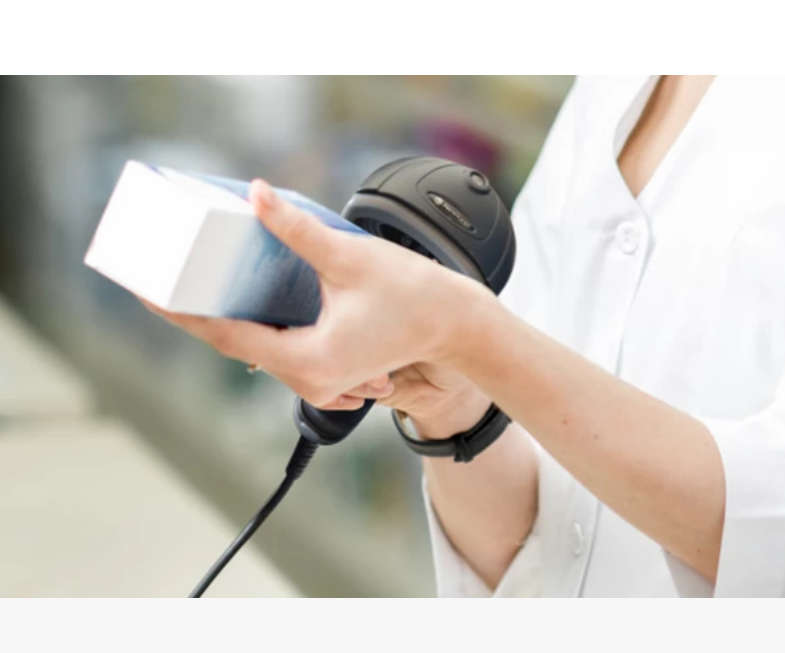

The Newland HR12 Anchoa is a compact and ergonomic 1D handheld barcode scanner designed for high-speed scanning in retail, hospitality, logistics, and healthcare environments. With a scan rate of 300 scans per second, it delivers exceptional accuracy and speed, even with low-contrast or damaged barcodes.
Built with Newland's advanced CCD sensor and laser aimer, the HR12 Anchoa supports all major 1D symbologies and operates with ultra-low power consumptionmaking it an eco-friendly and cost-effective solution for businesses of all sizes.
Its IP41-rated housing, lightweight design, and plug-and-play USB interface ensure seamless integration and reliable performance in demanding workflows.
Key Features:
- High-speed scanning: Up to 300 scans/sec
- Supports all major 1D barcode symbologies
- CCD image sensor with red LED illumination
- Ergonomic, lightweight design (130g with USB)
- USB interface for easy plug-and-play setup
- IP41-rated for dust and moisture resistance
- Eco-friendly: Operates on just 55mA ± 5mA
- 5-year manufacturer's warranty
Ideal for: Retail chains, inventory management, express delivery, healthcare, manufacturing, food traceability, and meter reading.
Technical Specifications
Feature | Details |
|---|
Barcode Types | All major 1D symbologies incl. EAN, UPC, Code 128, Code 39, ITF, GS1 |
Image Sensor | CCD 1500 |
Illumination | Red LED (610nm640nm) |
Scan Rate | Up to 300 scans/sec |
Scan Modes | Trigger, Sense, Continuous, Command Trigger |
Depth of Field | EAN-13 (13mil): 50655mm; Code 39 (5mil): 55165mm |
Field of View | Horizontal: 40° |
Scan Angles | Roll: ±30°, Pitch: ±60°, Skew: ±60° |
Print Contrast | Minimum 30% |
Processor | 0110 Chip |
Interface | USB (2m direct cable) |
Dimensions | 163 × 68.4 × 58.5 mm |
Weight | 130g (with USB cable) |
Material | PC, ABS |
Notifications | Beep, LED indicator |
Operating Temp | -20°C to 60°C |
Storage Temp | -40°C to 85°C |
Humidity | 5%95% (non-condensing) |
ESD Protection | ±8kV (contact), ±10kV (air) |
IP Rating | IP41 |
Certifications | FCC Part 15 Class B, CE EMC Class B, RoHS |
Warranty | 5-Year Manufacturer's Carry-In Warranty |
