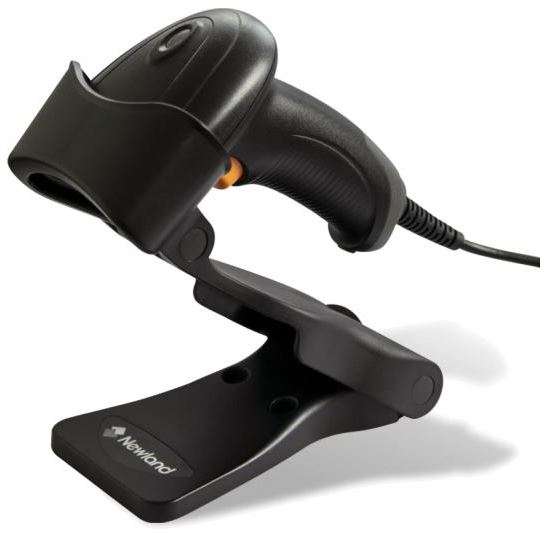

Newland HR22 Dorada II 2D CMOS handheld reader USB, 3 m coiled USB cable & foldable Smart stand, 640 x 480 CMOS image sensor, White LED illumination, Red LED aiming
Overview:
HR22 Dorada IIThe highest profile successes of the Dorada series have come in industries and applications looking for a 2D scanner at the price of a 1D scanner. Offering a cost-effective handheld scanning solution, the HR22 Dorada II offers an upgrade fitting growing demands by the market.
1D & 2DDual InterfaceCPUCMOSCMOSIP421.5m dropEasySetFeatures:
Supporting the step from 1D to 2D.The HR22 Dorada II is specifically developed to provide a cost-effective scanning solution that allows customers to enjoy the capabilities of a 2D scanner for a price that the market had previously expected of 1D-only scanners.
Neat design.The handheld scanner has a clean design that is not out of place on a countertop. The adjustable stand, as well as saving space and keeping your workspace clutter-free, is attractive enough to sit alongside POS equipment in a customer facing environment.
Aiming at the right code.The HR22 Dorada II now uses white illumination so the red LED aimers can be even more clearly seen. Ensuring the scanner is correctly lining up the code, it adds an extra level of confidence to the user.
Durable construction.The HR22 Dorada II has a more than suitable IP42 rating for its key applications and is drop resistant up to 1.5m. Its durable housing guarantees optimal protection so falls from desktops and countertops are no issue.
CPU decoding for more codes and more control.The Dorada II now uses Newland CPU processor decoding. The benefits of CPU-based decoding include improved configurations for data handling, as well as retaining additional flexibility to add more barcode symbologies. This includes Italian Pharma code found in pharmaceutical sales, as well as tracking and Aztec, common in airline boarding passes, ticketing and some retail loyalty.
Handsfree scanning.The handheld scanner is autosense ready, meaning it can switch from trigger press to handsfree by docking the scanner in the adjustable stand. Scanner available with stand as a kit.
Specifications:PerformanceImage Sensor 640x480 CMOSIllumination White LEDAiming Red LED (625nm)Depth of Field EAN 13 (13mil) 50-260mmDepth of Field CODE 39 (5mil) 50-115mmDepth of Field PDF417 (6.67mil) 50-120mmDepth of Field Data Matrix (10mil) 35-125mmDepth of Field QR (15mil) 30-170mmMinimal Print Contrast 20%Scan Angle Roll 360° (QR 15mil)Scan Angle Pitch ±55° (QR 15mil)Scan Angle Skew ±55° (QR 15mil)Field of View Horizontal 45°Field of View Vertical 34°Data Capture1D All major 1D symbologies, including Code 11, Code 128, Code 39, GS1-128 (UCC/EAN 128), AIM 128, ISBT 128, Codabar, Code 93, UPC-A, UPC-E, Coupon, GS1 Composite, EAN-8, EAN-13, ISBN/ISSN, Interleaved 2 of 5, Matrix 2 of 5, Industrial 25, ITF6, ITF-14, Standard 25, China Post 25, MSI Plessey, Plessey, GS1 Databar (RSS).2D All major 2D symbologies, including PDF417, Micro PDF417, Micro QR, QR Code, Data Matrix, Aztec.PhysicalDimensions (mm) 145x101x68Weight 111gInterfaces RS-232, USBNotifications Beep, LED indicatorInput Voltage 5VDC±5%Current @ 5VDC Operating 190mA (typical), 201mA (max.)Current @ 5VDC Standby 35mAPower Consumption 950mW (typical)EnvironmentalOperating Temperature -20°C to 60°C (-4°F to 140°F)Storage Temperature -40°C to 70°C (-40°F to 158°F)Humidity 5% to 95% (non-condensing)Electro Static Discharge (ESD) ±15 kV (air discharge), ±8 kV (direct discharge)Drop 1.5mIP Rating IP42SoftwareConfiguration Tools EasySetCertificationsHardware FCC Part15 Class B, CE EMC Class B
