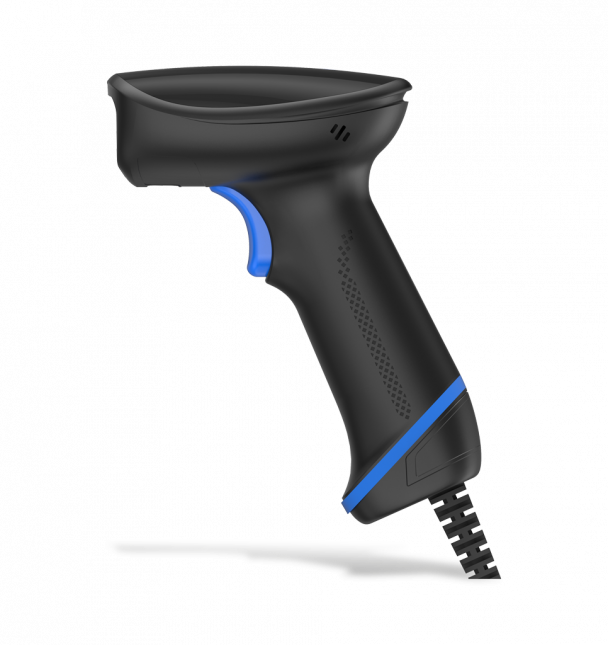

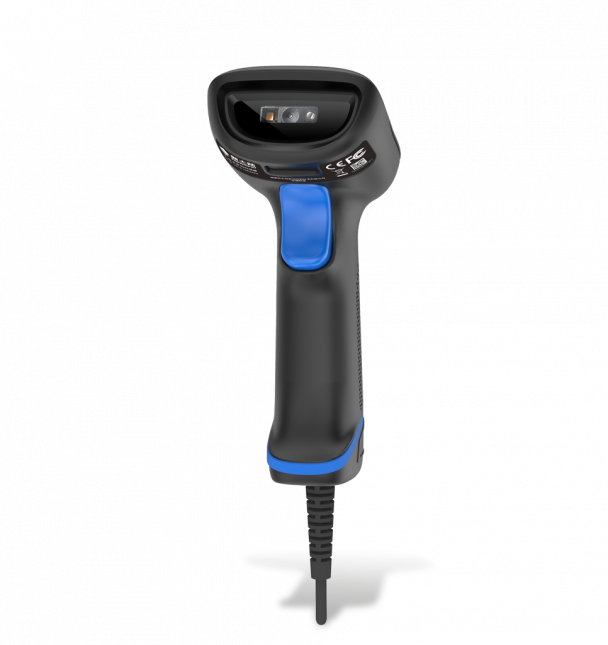

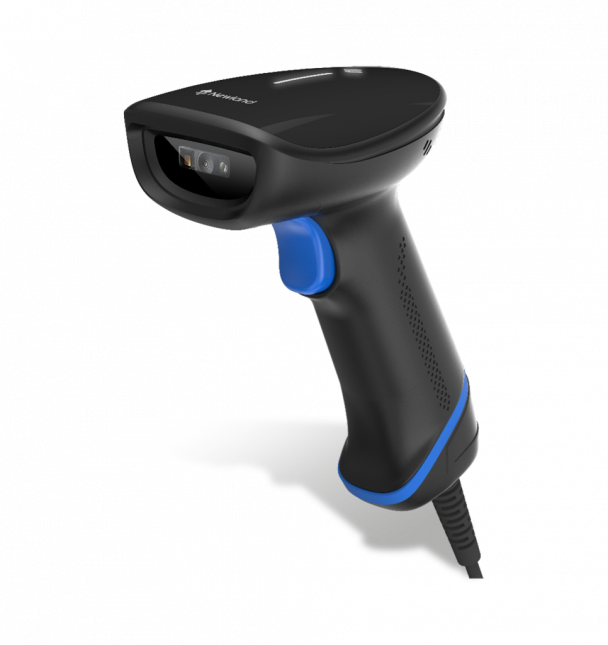

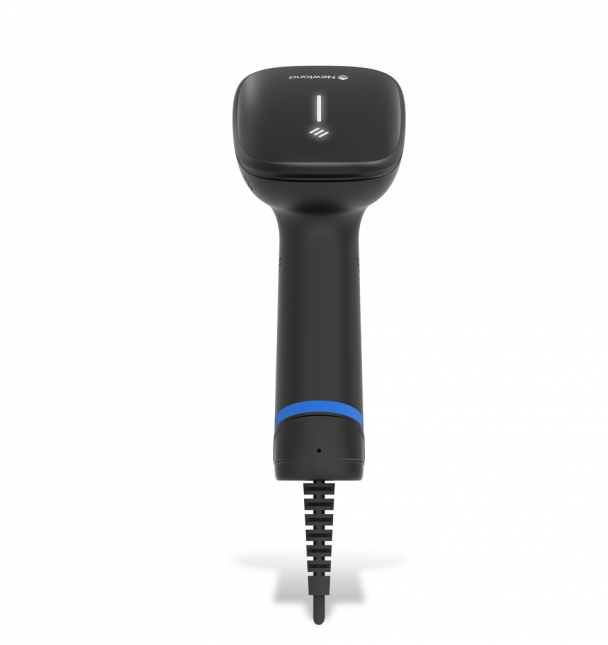

Newland HR23 Dorada Corded Barcode Scanner High-Performance 2D Scanning at 1D Pricing
The Newland HR23 Dorada Corded is a compact, ergonomic handheld barcode scanner that delivers exceptional 2D scanning performance at the cost of a typical 1D device. Powered by Newland's advanced decoding technology, it reads high-density, damaged, and distorted barcodes with speed and precisionmaking it ideal for retail, healthcare, hospitality, and ticketing environments.
Designed for comfort and durability, the HR23 Dorada features a lightweight build, IP52-rated protection, and 1.5m drop resistance. It supports USB and RS232 interfaces, and is fully configurable via Newland's EasySet software. Optional smart stands and gooseneck mounts allow for seamless hands-free scanning.
Key Features:
- 2D CMOS sensor with red LED aimer and white LED illumination
- Reads 1D & 2D barcodes from paper and screens
- Ergonomic, lightweight design (137g) for all-day use
- IP52-rated housing with 1.5m drop resistance
- USB (KBW, CDC, HID-POS) and optional RS232 interface
- EasySet software for configuration, cloning & firmware updates
- Optional smart stand and gooseneck mount for hands-free scanning
- 5-year manufacturer's warranty
Ideal for: Retail checkout, pharmacy counters, loyalty programs, ticketing booths, and hospitality front desks.
Technical Specifications
Category | Specification |
|---|
Barcode Types | 1D: EAN-13, UPC-A/E, Code 128, Code 39, ITF, Codabar, GS1, etc. |
| 2D: QR Code, Data Matrix, PDF417, Micro QR, Aztec |
Image Sensor | 640 × 480 CMOS |
Aimer / Illumination | Red LED aimer, white LED illumination |
Resolution | ?3mil |
Depth of Field | EAN-13 (13mil): 50280mm; Code 39 (5mil): 50120mm; PDF417 (6.7mil): 40120mm |
| DataMatrix (10mil): 30125mm |
Field of View | Horizontal: 45°; Vertical: 34° |
Scan Angles | Roll: 360°; Pitch: ±60°; Skew: ±60° |
Print Contrast | ?20% |
Interfaces | USB (KBW, CDC, HID-POS); Optional RS232 |
Power Supply | 5VDC ±5% |
Operating Current | 190mA (typical); 200mA (max) |
Standby Current | 35mA |
Dimensions | 95 × 68 × 161 mm |
Weight | 137g |
Notifications | Beep, LED, vibration |
Operating Temp | -20°C to 60°C |
Storage Temp | -40°C to 70°C |
Humidity | 5%95% (non-condensing) |
Drop Resistance | 1.5m to concrete |
IP Rating | IP52 |
ESD Protection | ±8kV (contact), ±15kV (air) |
Configuration Tools | EasySet software |
Certifications | CE, FCC, RoHS 2.0, IEC62471 |
Included Accessories | 3.5m coiled USB cable (CBL030UA) |

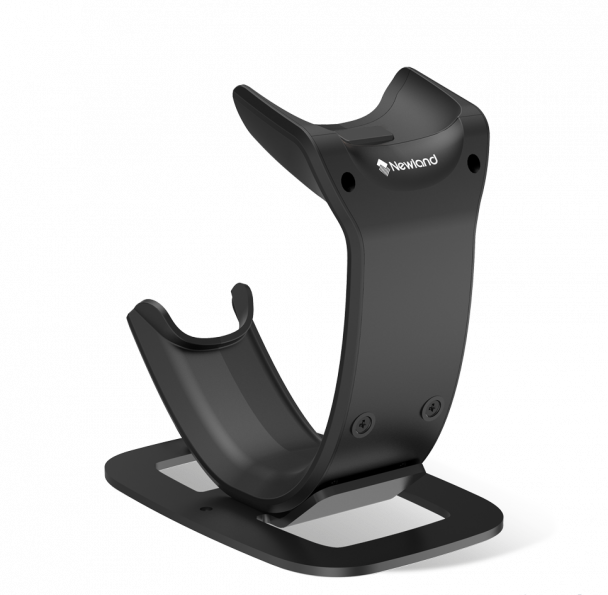

Accessories | Smart adjustable stand |
Warranty | 5 Year Manufacturers Carry-In Warranty |
