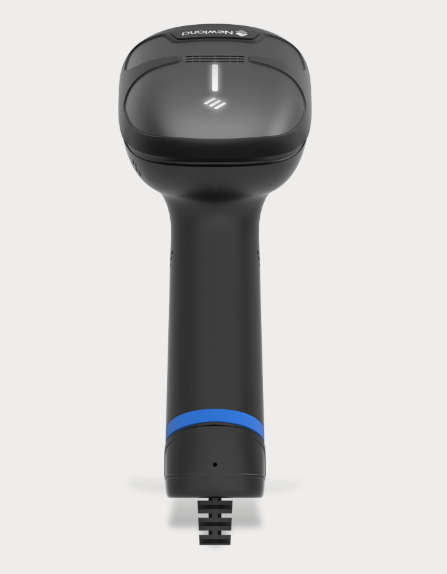

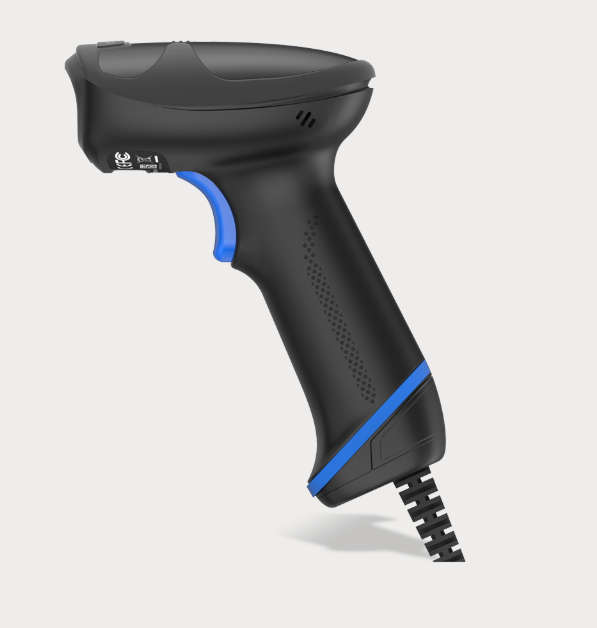

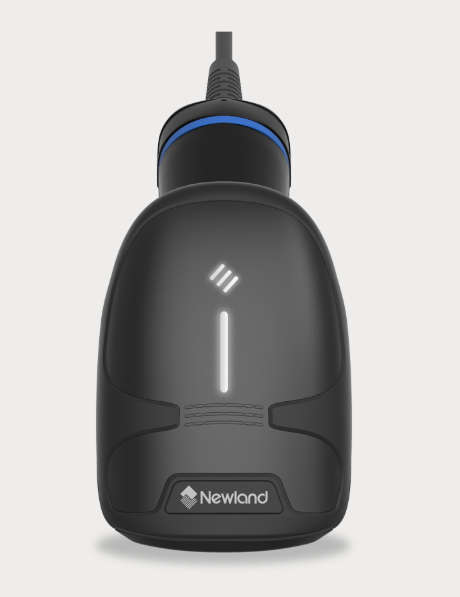

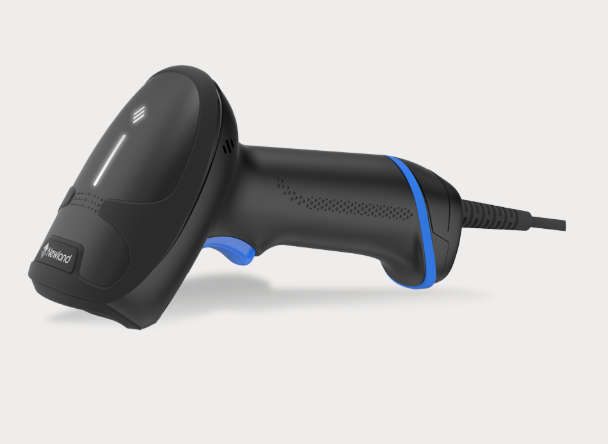

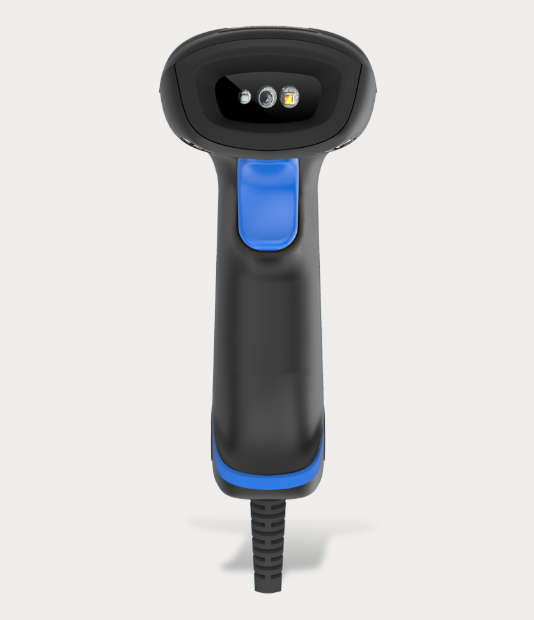

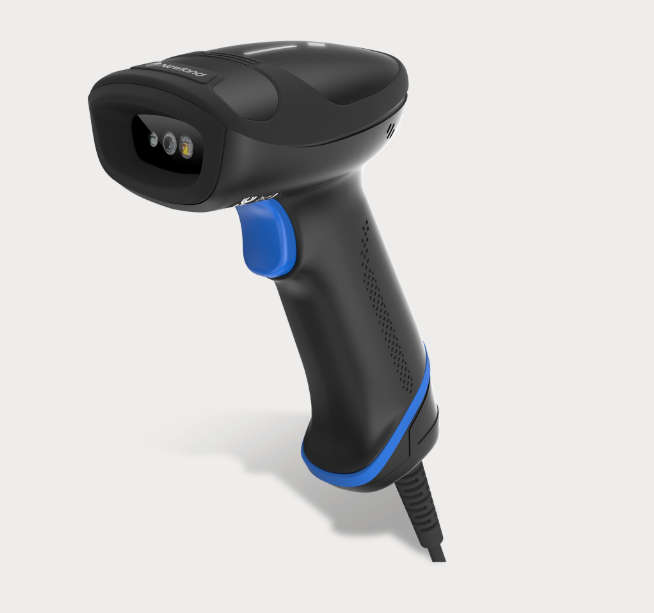

Newland HR33 Marlin 2D Megapixel Handheld Scanner Autosense, 3.5m USB Cable, Adjustable Smart Stand
The Newland HR33 Marlin (NLS?HR3300?SA) is a high?performance 2D megapixel handheld scanner designed for retail, POS, warehousing, logistics, and office environments. Equipped with a powerful CMOS megapixel imager, advanced decoding algorithms, and autosense mode, the HR33 delivers fast and accurate scanning of both 1D and 2D barcodes including QR codes, PDF417, and Data Matrix.
Its ergonomic design, 3.5?meter coiled USB cable, and included smart adjustable stand make it ideal for both handheld and hands?free scanning. The HR33 Marlin reads barcodes from paper labels, mobile screens, and even damaged or low?contrast codes with ease.
Built for durability and daily commercial use, the scanner features reinforced housing, long?life trigger, and plug?and?play USB connectivity for seamless integration with POS systems, PCs, and tablets.
What's in the Box
- Newland HR33 Marlin 2D Megapixel Handheld Scanner
- 3.5?meter coiled USB cable (CBL030UA)
- Smart adjustable stand
- User Manual
- Quick Start Guide
- Warranty Documentation
Key Features
- 2D Megapixel CMOS Imager Reads all major 1D & 2D barcodes.
- Autosense Mode Hands?free scanning with automatic detection.

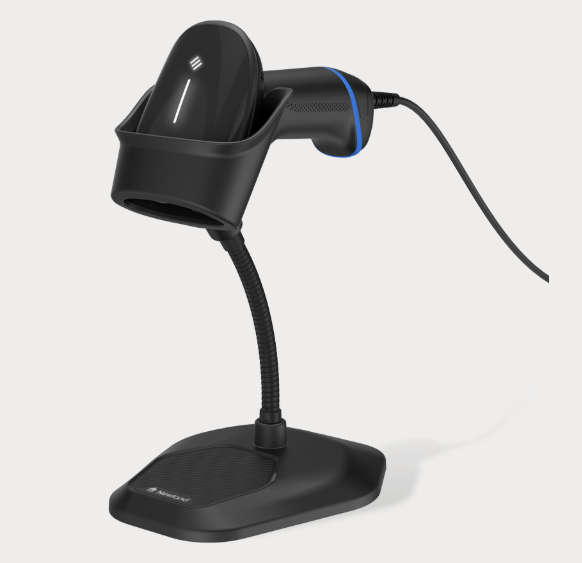

- Smart Adjustable Stand Included Ideal for POS and counter setups.
- High-Speed Decoding Fast and accurate barcode capture.
- Reads from Mobile Screens Optimized for QR and digital barcodes.
- Ergonomic Lightweight Design Comfortable for all?day use.
- 3.5m Coiled USB Cable Flexible and durable for busy environments.
- Plug?and?Play USB Connectivity No drivers required.
- Durable Construction Reinforced housing for daily commercial use.
Technical Specifications
Performance
| Sensor | CMOS Megapixel (1280 × 800) |
| Light Source | White LED |
| Scan Rate | High-speed decoding |
| Motion Tolerance | Excellent (supports fast-moving barcodes) |
| Print Contrast | ?25% |
Supported Symbologies
| 2D Barcodes | QR Code, Data Matrix, PDF417, Micro QR, Aztec |
| 1D Barcodes | EAN?13, EAN?8, UPC?A, UPC?E, Code128, Code39, Codabar, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, MSI?Plessey, GS1?128 |
Connectivity
| Interface | USB (3.5m coiled cable) |
| Autosense | Yes |
Physical
| Dimensions | 161 × 67 × 95 mm |
| Weight | 150g |
| Color | Black |
| Stand | Smart adjustable stand included |
Environmental
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -40°C to 70°C |
| Humidity | 5%95% (non-condensing) |
| Drop Resistance | 1.5m |
Certifications
| Certifications | CE, FCC, RoHS |
