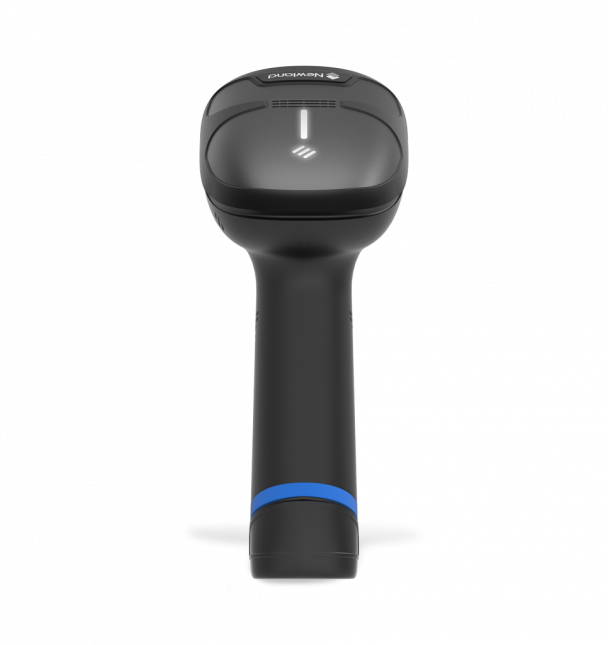

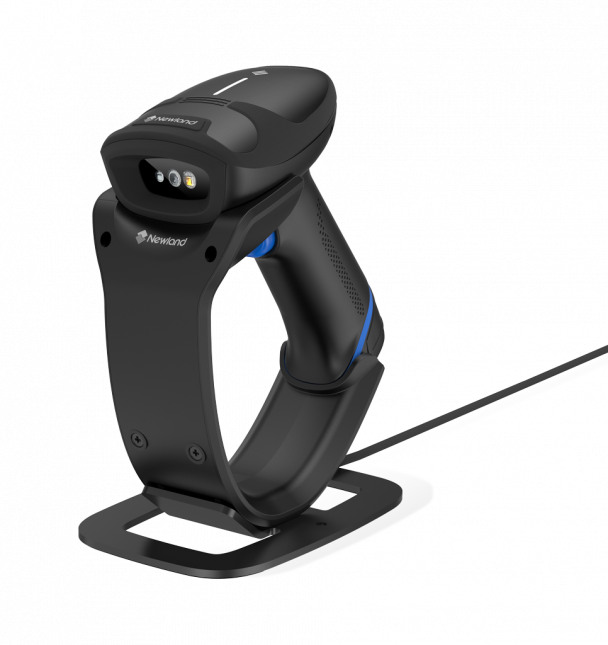

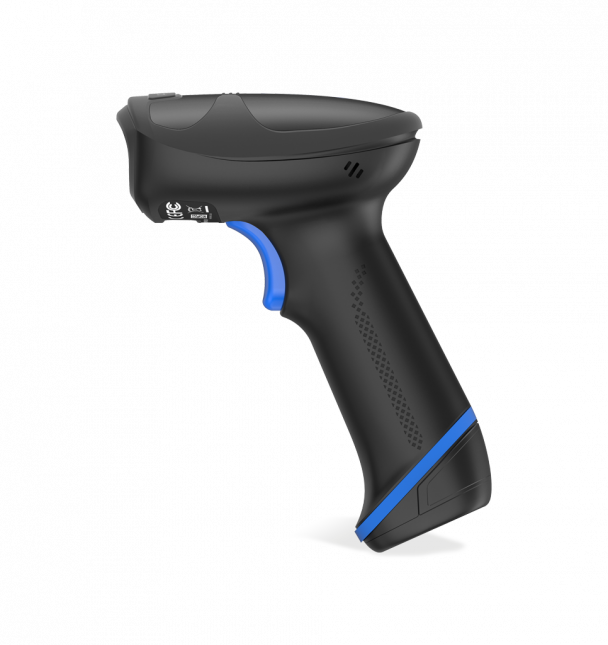

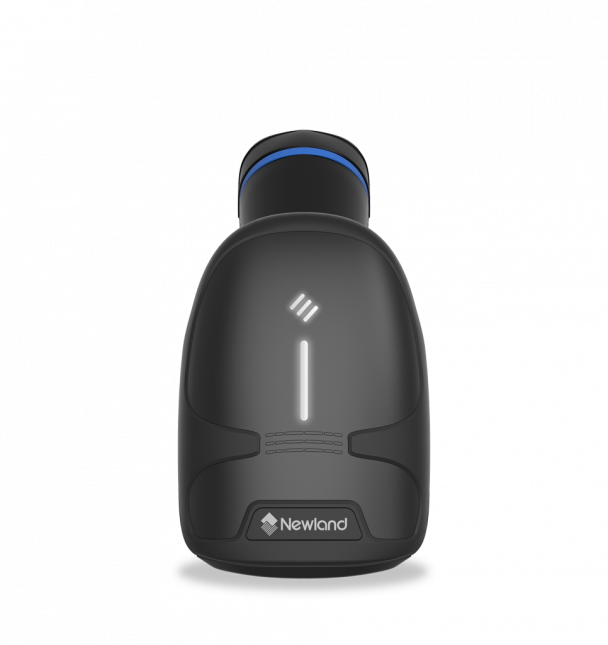

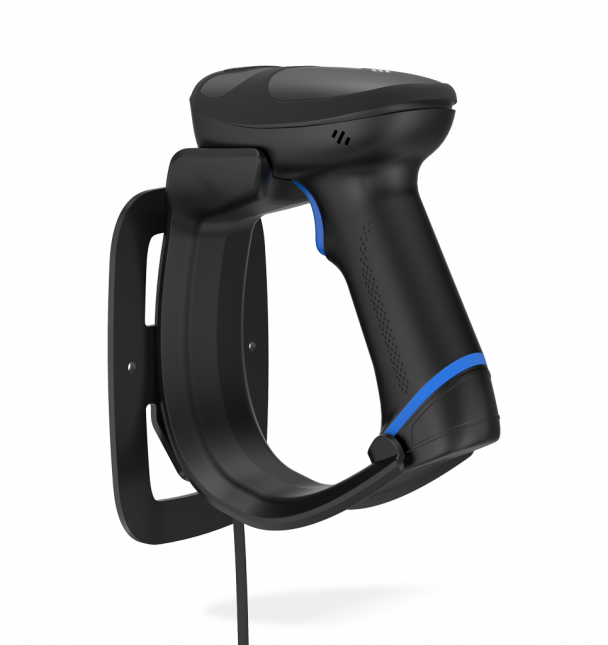

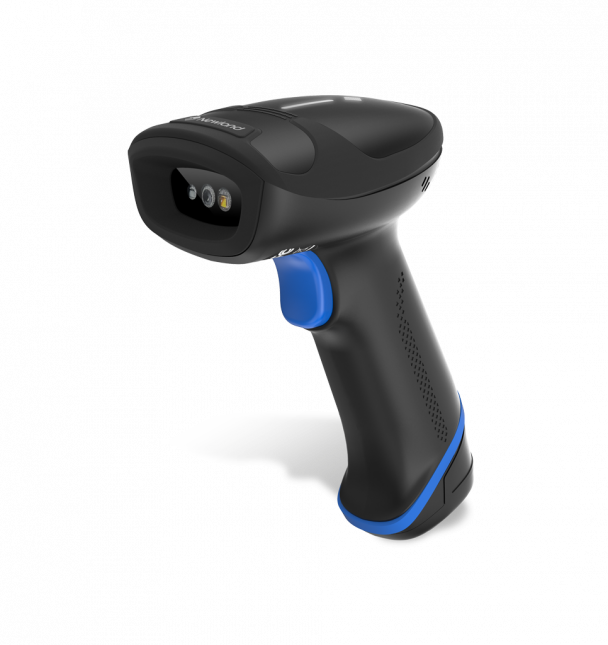

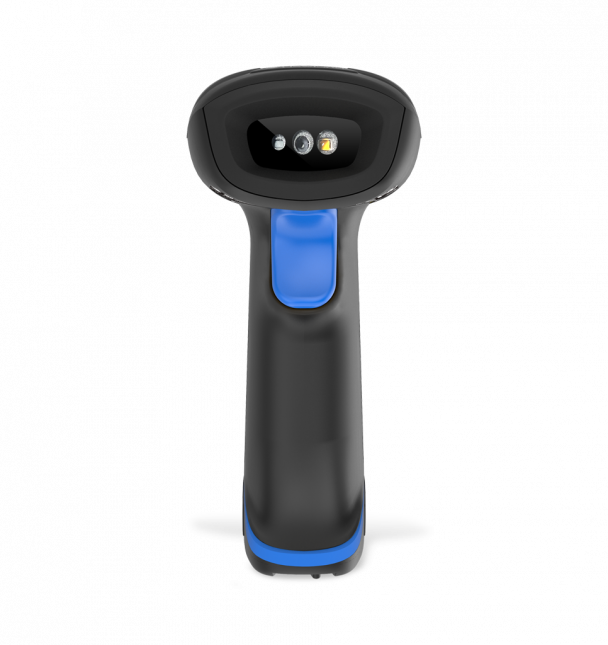

Newland HR33 Marlin Bluetooth Handheld Scanner Precision, Power & Portability
The Newland HR33 Marlin Bluetooth is a high-performance 2D barcode scanner designed for fast, accurate data capture in retail, logistics, warehousing, and healthcare environments. Featuring a megapixel CMOS sensor, Bluetooth 5.0 connectivity, and advanced decoding technology, it scans even damaged or high-density barcodes with ease.
With a 100m wireless range, 15-hour battery life, and IP52-rated durability, the HR33 is built for uninterrupted productivity. Its replaceable 2600mAh battery, magnetic charging cradle, and support for real-time and batch scanning modes make it a versatile tool for any workflow.
Key Features:
Technical Specifications
Feature | Details |
---|---|
Sensor | 1280 × 800 CMOS megapixel |
Barcode Types | 1D & 2D (QR, PDF417, Data Matrix, Aztec, OCR, etc.) |
Aiming & Illumination | Laser aimer, white LED |
Resolution | ?3mil |
Depth of Field | EAN-13: 40535mm; Code 39: 50230mm; PDF417: 45215mm; DataMatrix: 30245mm |
Field of View | Horizontal: 48°, Vertical: 30° |
Scan Angles | Roll: 360°, Pitch: ±60°, Skew: ±65° |
Print Contrast | ?15% |
Battery | 2600mAh lithium-ion, replaceable |
Battery Life | ?15 hours (scan every 6 seconds) |
Charge Time | ?6 hours |
Connectivity | Bluetooth 5.0, USB (Type A) |
Wireless Range | ?100m (open space) |
Communication Modes | Real-time, asynchronous, batch |
Memory | ?16,384 code entries (60+ bytes each) |
Notifications | Beep, LED, vibration |
Dimensions (Scanner) | 117.5 × 87.5 × 144 mm |
Dimensions (Cradle) | 140 × 90 × 144.5 mm |
Weight | Scanner: 210g; Cradle: 340.5g |
Operating Temp | -10°C to 50°C |
Storage Temp | -40°C to 70°C |
Humidity | 5%95% (non-condensing) |
Drop Resistance | Scanner: 1.5m; Cradle: 1.2m |
IP Rating | IP52 |
Software | EasySet, Advanced Scripting |
Certifications | CE, FCC, RoHS, IEC62471, IEC60825 |
Warranty | 5-Year Manufacturer's Carry-In Warranty |
