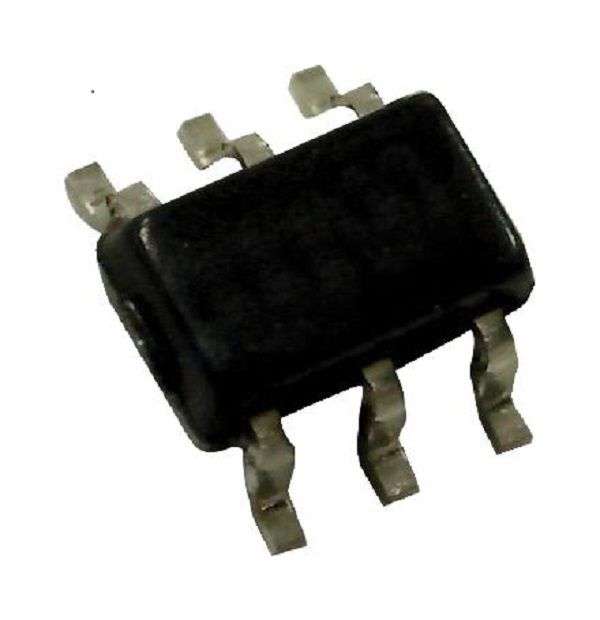

Nexperia (74AVC1T45GW,125) Transceiver, 74AVC1T245, 800 mV to 3.6 V

Product OverviewThe 74AVC1T45GW is a single-bit dual supply Voltage Level Translator/Transceiverwith 3-state output that enables bidirectional level translation. It featurestwo 1-bit input-output ports, a direction control input and dual supply pins.Both VCC(A) and VCC(B) can be supplied at any voltage between 0.8 and 3.6Vmaking the device suitable for translating between any of the low voltage nodes.Pins A and DIR are referenced to VCC(A) and pin B is referenced to VCC(B). AHIGH on DIR allows transmission from A to B and a LOW on DIR allows transmissionfrom B to A. The device is fully specified for partial power-down applicationsusing IOFF. The IOFF circuitry disables the output, preventing any damagingbackflow current through the device when it is powered down. In suspend modewhen either VCC(A) or VCC(B) are at GND level, both A and B are in thehigh-impedance OFF-state.High noise immunitySuspend modeIOFF circuitry provides partial power-down mode operationComplies with JEDEC standardsLatch-up performance exceeds 100mA per JESD 78 class IIInputs accept voltages up to 3.6VLow noise overshoot and undershoot
