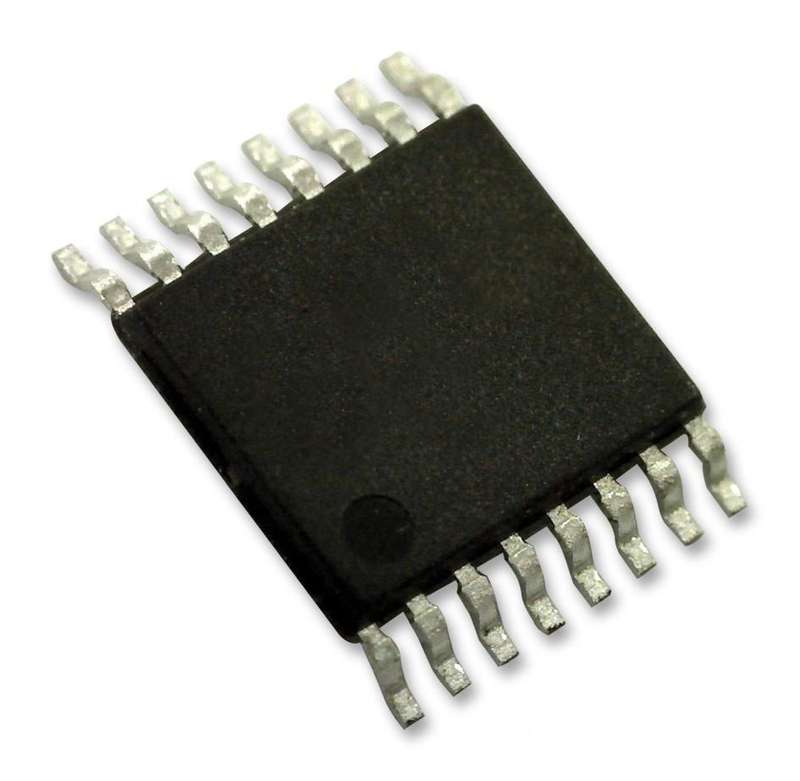

Nexperia (74HC4020PW,118) Binary Ripple Counter, HC Family

Binary Ripple Counter, HC Family, 101 MHz, 2 V to 6 V, TSSOP-16Product OverviewThe 74HC4020PW is a 14-stage Binary Ripple Counter with a clock input (CP), anoverriding asynchronous master reset input (MR) and 12 buffered parallel outputs(Q0 and Q3 to Q13). The counter advances on the high-to-low transition of clock.A high on MR clears all counter stages and forces all outputs low, independentof the state of clock. Each counter stage is a static toggle flip-flop. Thisdevice features reduced input threshold levels to allow interfacing to TTL logiclevels. Inputs also include clamp diodes, this enables the use of currentlimiting resistors to interface inputs to voltages in excess of VCC.CMOS Input levelComplies with JEDEC standard No. 7AApplicationsClock & Timing, Industrial, Consumer Electronics, Computers & ComputerPeripheralsProduct InformationLogic Family / Base Number: 74HC4020Counter Type: Binary RippleClock Frequency: 101MHzCount Maximum: 16383Logic Case Style: TSSOPNo. of Pins: 16PinsSupply Voltage Min: 2VSupply Voltage Max: 6VLogic IC Family: 74HCLogic IC Base Number: 744020Operating Temperature Min: -40°COperating Temperature Max: 125°CProduct Range: -MSL: MSL 1 - Unlimited
