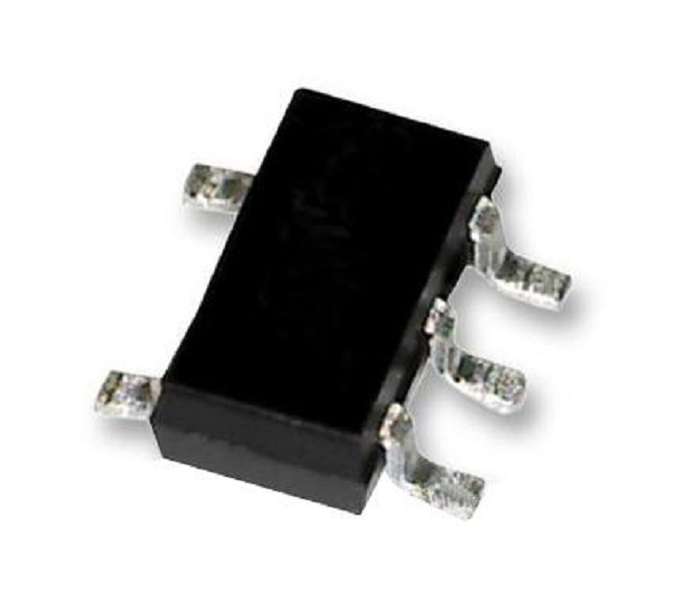

Nexperia (74LVC1G07GV,125) Buffer, 1.65 V to 5.5 V, SC-74A-5

Buffer, 74LVC1G07, 1.65 V to 5.5 V, SC-74A-5Product OverviewThe 74LVC1G07GV,125 is a non-inverting Buffer with open-drain output. The opendrain output can be connected to other open-drain outputs to implementactive-LOW wired-OR or active-HIGH wired-AND functions. Inputs can be drivenfrom either 3.3/5V devices. This feature allows the use of this device in amixed 3.3 and 5V environment. Schmitt-trigger action at all inputs makes thecircuit tolerant for slower input rise and fall time. This device is fullyspecified for partial power-down applications using IOFF. The IOFF circuitrydisables the output, preventing the damaging backflow current through the devicewhen it is powered down.High noise immunityCMOS low power consumptionDirect interface with TTL levelsComplies with JEDEC standard5V Tolerant input/output for interfacing with 5V logicLatch-up performance exceeds 250mAInputs accept voltages up to 5VApplicationsIndustrial, Automation & Process Control, Signal ProcessingProduct InformationLogic Family / Base Number: 74LVC1G07Logic Device Type: Buffer, Non InvertingLogic Case Style: SC-74ANo. of Pins: 5PinsSupply Voltage Min: 1.65VSupply Voltage Max: 5.5VLogic IC Family: 74LVCLogic IC Base Number: 741G07Operating Temperature Min: -40°COperating Temperature Max: 125°CProduct Range: -Automotive Qualification Standard: -MSL: MSL 1 - Unlimited
