NEXTEK USB LAN (USE USB PORT TO CONNECT STANDARD LAN CABLE)

NEXTEK USB LAN (USE USB PORT TO CONNECT STANDARD LAN CABLE)

Part #2010070

Network Speed:10Mbps or 100Mbps Automatically.
Connectors: 1xRJ-45 Shielded Phone jack.

Overview:

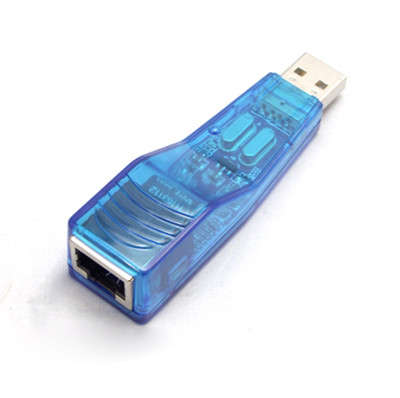

The easiest way to add a network connection to your laptop or desktop computer!
Simply connect the USB 2.0 to Fast Ethernet Adapter to your laptop/notebook or
desktop computer's USB 2.0 port and add a 10/100 Fast Ethernet LAN connection.

Features:
-Integrated Fast Ethernet MAC, physical chip and transceiver in one chip.
-Support 10Mb/s and 100Mb/s N-way auto negotiation operation.
-Complaint to USB interface version1.0/1.1/2.0
-Full-Speed (12Mbs/s USB Device.
-Support all USB standard command.
-Supports Suspend/Resume detection logic
-Supports 4 endpoints

1.1 control endpoint with maximum 8-byte packet
2.1 bulk In endpoint with 64 bytes/packet
3.1 bulk Out endpoint with 64 bytes/packet
4.1 interrupt in endpoint with 8 bytes/packet

-18K bytes SRAM built in.(2k bytes for Tx buffer, and 16k bytes for Rx buffer)
-Uses 93C46 to store resource configuration, ID parameter, etc
-Half/Full duplex 10/100 Mbps operation
-Support Full Duplex Flow control (IEEE 802.3x)
