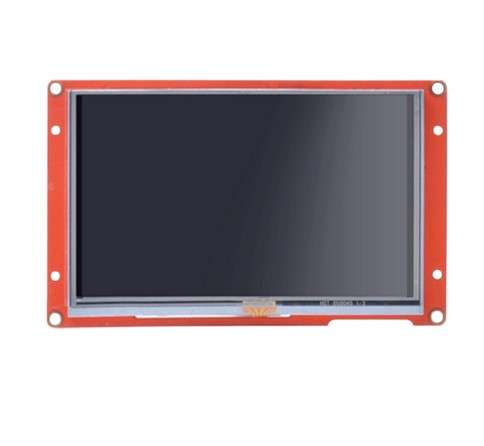

Nextion Intelligent NX8048P050-011R 5 Inch HMI Resistive Touch Display
Product Description
NX8048P050-011R is a 5.0 Nextion Display with a Resistive touchscreen display. This display is from the Newly launched Intelligent series and is very easy to use and can be interfaced to the Microcontroller using a simple UART port. The Nextion display can be easily interfaced with any Microcontroller using just 2 wires.
Nextion NX8048P050-011R is a 5.0 Intelligent series SMART HMI Touch display having a resistive touch screen. Nextion displays have a built-in microcontroller that controls the display, it takes care of which button has been clicked, creating text, storing images, or change the background. The Nextion display then communicates with your microcontroller using serial communication at a 9600 baud rate.
The Nextion Intelligent NX8048P050-011R 5.0 Resistive Touchscreen Display is so simple to the interface that it can easily work with Arduino, Raspberry Pi, ESP8266, ESP32, PIC Microcontroller, AVR controller, ARM Microcontroller and you won't believe it will work even with basic 8051 microcontrollers basically it will work with any board or Microcontroller that has UART port.
Product Features
- 5" LCD-TFT HMI display module
- 840 x 480 screen resolution
- RGB 65K true-to-life colors
- Resistive touch panel
- 300 nit Brightness
- Onboard 200MHz MCU
- 512 KB of SRAM
- 128 MB of Flash memory
- 1024 Byte EEPROM
Product Specification
- Model Type: Intelligent HMI Display
- Model No.: NX8048P050 011R
- Touch Type: Resistive
- Operating Voltage (V): 5 V
- Operating Current (mA): 220
- Touch: > 1 million
- Backlight: LED
- Brightness (NIT): 300nit
- Serial Port: 3.3V/5.0V TTL
- Flash Memory: 120 MB
- RAM Memory: 512 KB
- Length (mm): 138
- Width (mm): 85
- Height (mm): 12
- Weight (g): 122
- Shipping Weight: 0.179 kg
- Shipping Dimensions: 16 × 9.5 × 3.5 cm
Package Includes

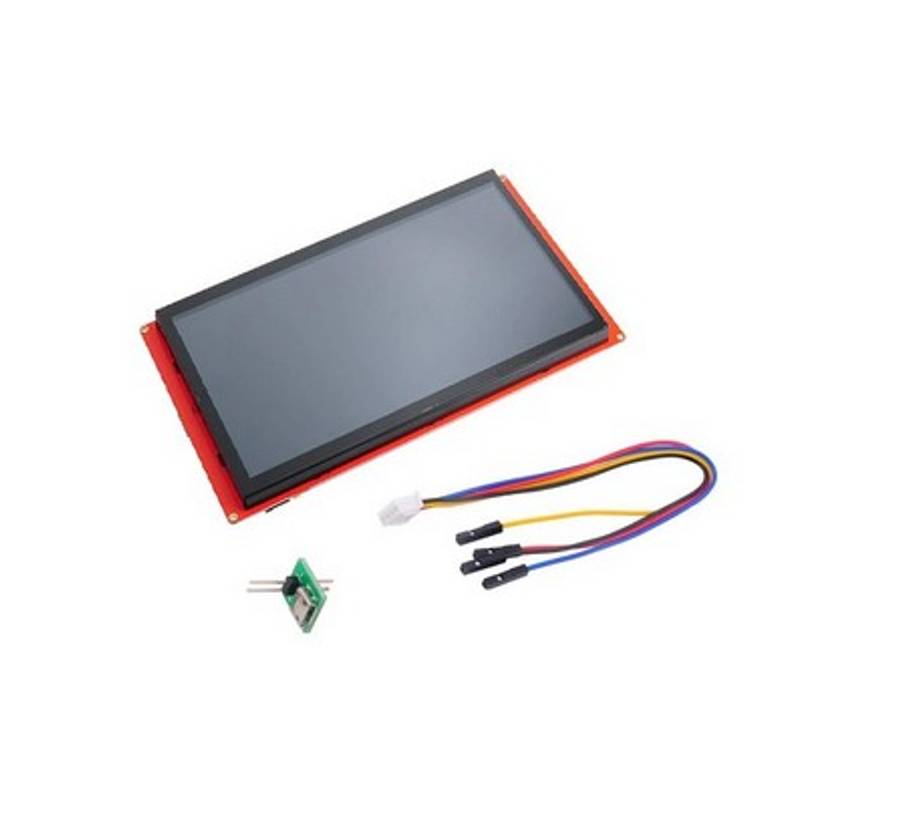

1 x Nextion Intelligent NX8048P050_011R 5.0" HMI Resistive Touch Display
Please note: Locally stocked. Available for immediate shipping.
