What Can Nextion Do
During the process of embedded system design, one of the most annoying, time-consuming things is the human-machine interface design. You need a slick chart or slick graph, quick page designs,?you need resources stored for quick processing, you will find the answer inside the amazing Nextion Products Line.
Nextion is optimized to meet your specific human-machine interface needs using open and standardized interfaces in hardware and software, which allows efficient integration into your automation systems.
Man machine systems, Visualization, Humans Interaction, Cognition, Visual perception, Machine intelligence, Cybernetics, even robotics, are just a few examples, where HMI concepts play an important role.
What Value Can Nextion Bring
As an embedded engineer, do you remember those old days when you design the human machine interface for an embedded system? You have to spend weeks in low level design.
Nextion is designed to work with minimal design effort as all of the data and control signals are provided by the device to interface directly to the display. This offers enormous advantage to the designer in development time and cost saving and takes away all of the burdens of low level design.
Nextion will help you quickly design visually in hours not?weeks, turn long coding work into simple drag and drop operation, at a reasonable cost. What you only need, is interface a serial port to Nextion display hardware.
Demo speaks louder than words, here comes another video show you how quickly and easily an application can be designed by dragging and dropping objections to the virtual screen on a WYSIWYG design IDE - Nextion Editor.
Compare to the basic?Nextion?displays, the enhanced ones have added some new functions, such as: supporting built-in RTC, supporting save data to Flash, supporting GPIO, larger flash capacitive and larger CPU clock.

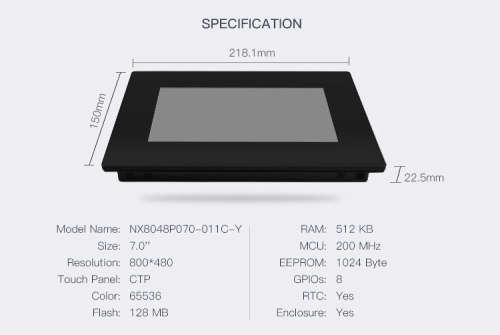

Features

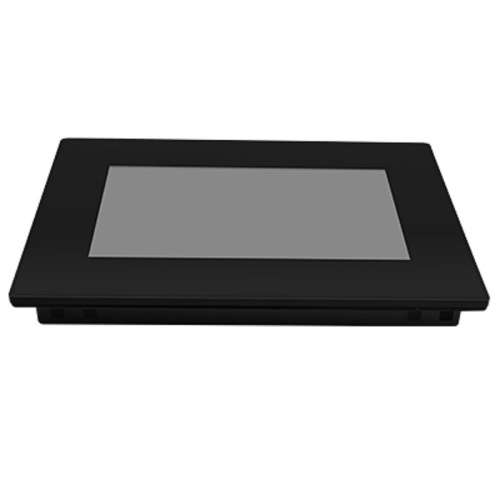

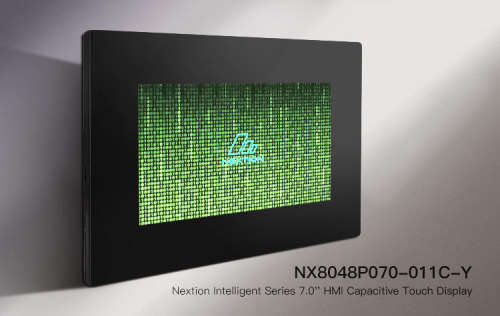

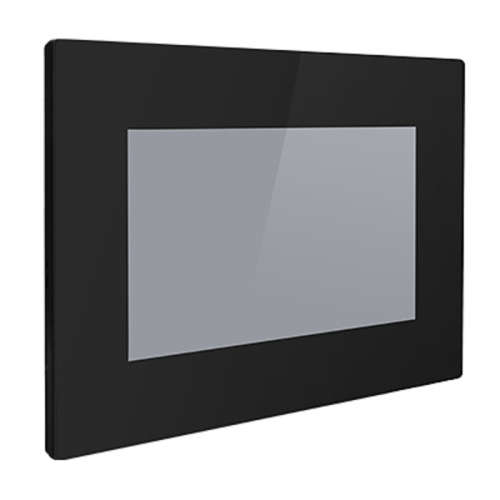

- NX8048P070-011C-Y(7.0'' IPS RGB 65K Capacitive Touchscreen)
- Onboard MCU 200MHz And Up To 128MB For HMI Project
- Built-In RTCEEPROM, 8 Digital GPIOs (2 PWM Capable)
- 4 Pins (+5V, TX, RX, GND) TTL Serial Interface
- 300 Nit Brightness With 1% Interval Adjustment
- Audio Interface
- CE And RoHS Compliant
In The Box
- NX8048P070-011C-Y HMI Display*1
- XH2.54 4P Wire*1
- Power Supply Test Board*1
- Mounting Buckle & Crew*4
