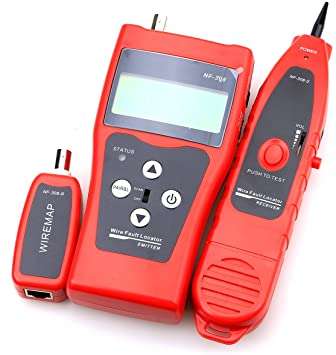

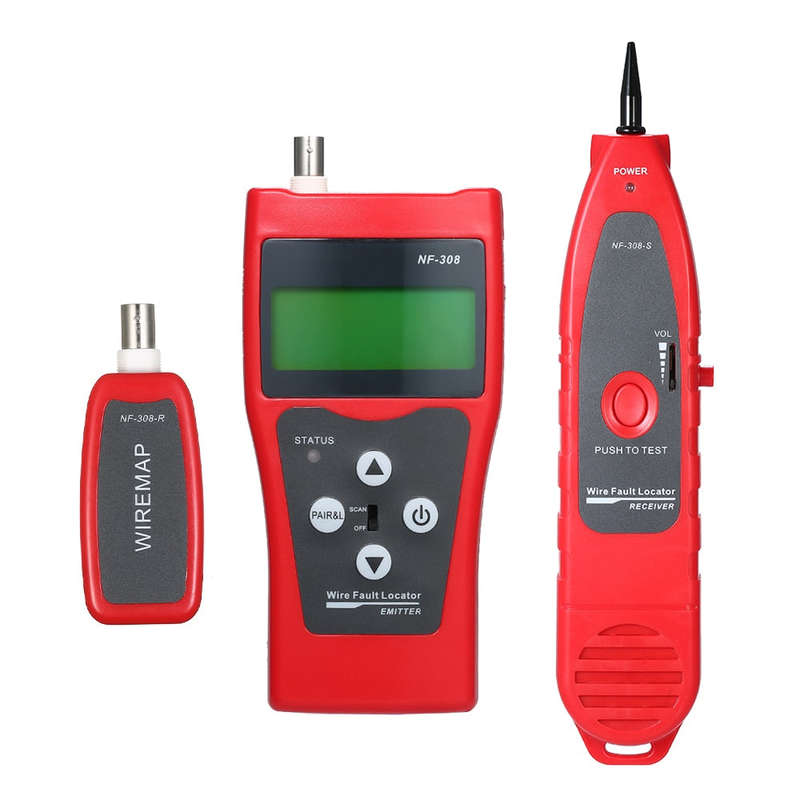

NF-308 Network Telephone Audio Wire Fault Locator

The NF-308 Wire Locator is a professional general purpose cable locator. It is ideal for tracing cables in walls and underground, locating fuses / breakers in final circuits, and locating interruptions and shorts in cables and electrical underfloor heating systems. It can also be used to trace metal and heating water pipes. The unit is supplied as a complete kit consisting of a transmitter and receiver in a purpose-made carrying case. The receiver also incorporates a torch function for working in dimly lit locations

Features:

• Direct hunting 5E, 6E, telephone cable, coaxial cable, USB cable and other cables.
• Hub blink to locate network port by flashing port light on hub / switch.
• Check the wiring error in 5E, 6E, coaxial cable, such as open circuit, short circuit, jumper wire, reverse connection.
• Locate the wiring or connection error.
• Measure the cable length to 3,280.8 ft and locate the break point.
• The polarity test function measures the DC voltage.
• Memory and storage for calibration data.
• Delayed automatic shutdown and low battery alarm function.

Specifications:

• Cable Tested : STP/UTP twin twisted cable,coaxial cable,telephone line
• Cable Detected : 5E, 6E, telephone wire, coaxial cable, USB cable and other metal wires

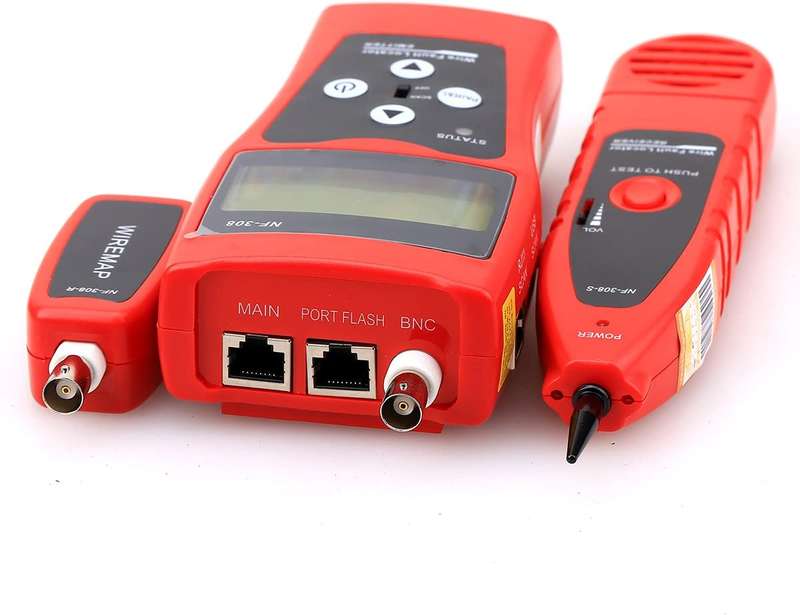

• Tester Port : RJ45 master port (M), LOOPBACK RJ45 port (L) Hunting RJ45 port (With RJ45)
• Remote identifier : RJ45 port (R) The extra BNC and RJ11 converters
• Length Measurement of Twin Twisted Cable :Scope : 1~350 M (3~200 ft)
• Calibration accuracy : 3% (0.5M or 1.5ft) (calibrating cable >5M)
• Shipment accuracy : 5% (0.5M or 1.5ft) (AMP,AT&T class 5 cable)
• Length Calibration : USer can set calibration factor by himself with a given
• length cable. The length of calibrating cable is more than 5M.
• Display : Special 4 x 16 character big screen LCD lattice

• Power : Main Unit : 1 x 9V battery(not include)

• Receiver : 1 x 9V battery(not include)

• Dimension : Main Unit : 185 x 105 x 50mm

• Receiver :218 x 46 x 29mm

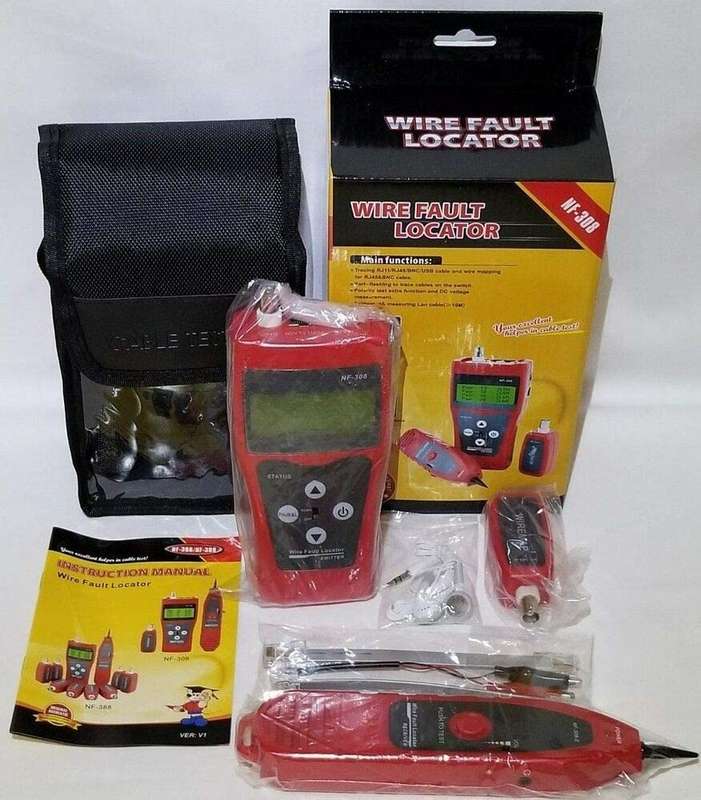

Whats in the Box:

1 x Audio Cable Length Tester
1 x Receiver
1 x Remote Identifier
1 x Earphone
1 x RJ45-to-RJ45 Cable
1 x RJ11-to-RJ11 Cable
1 x RJ11-to-Alligator clip cable
1 x RJ45-to-BNC Converter

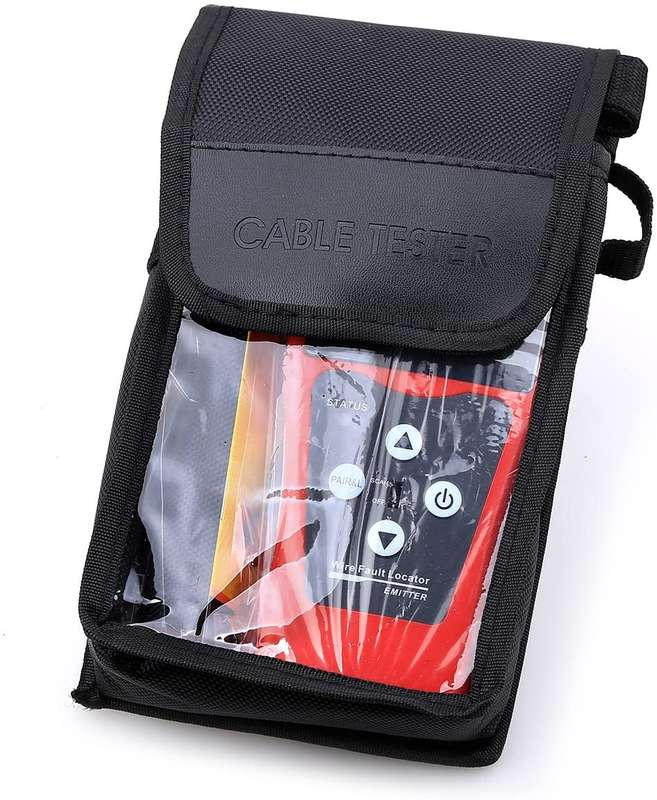

1 x Carrying Bag
1 x English Instruction Manual
