Description :
NF-388 Network Cable Tester LAN RJ45 RJ11 USB Cable Coaxial Tester with 8 Remote Identifier
NF-388 multipurpose network cable test & check the line instrument is the latest development of a more novel features of cable test and check the line instrument.

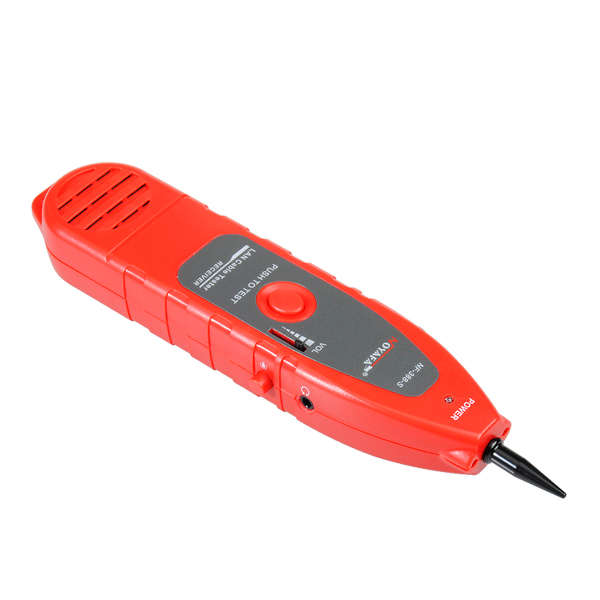

The equipment consists of a main tester (NF-308), a receiver (NF-838-R) and the remote identifier(8pcs) .
It has three mainly functions - line-tracking, line-alignment and Line state test, with a shortcut, accurate characteristics, communication lines, integrated wiring, line weak systems installation, maintenance, a useful tool set for engineering and technical personnel.
Widely used in the telephone system, computer network and other metal wire lines and other fields.
Features :
Single cable connectivity testing can be carried out.
Wiring / connection error positioning.
Measuring the cable length, and determine a distance from the open, short.
Dynamic calibration function of the cable length, the length measurement accuracy of up to 97%.
Easy to use, the large screen display of the test results at a glance.
Portable, long battery life (standby 50 hours).
Automatically delay shutdown and backlit display.
Whether the plug in the remote identification can be carried out measurements of length and pairing.
Cable positioning, eight remote passive test jacks (ID 1D1-ID8).
Remote single-frequency identification tool prompts.
SCM software watchdog design and reliable operation.
The self-test function, can automatically compensate for changes in battery power, the impact of changes in ambient temperature.
5E, 6E, telephone line, coaxial cable, USB lines directly looking for a variety of cable.
Can detect 5E, 6E, coaxial cable and telephone wiring fault lines, including : open circuit, short circuit, jumper, reverse, and string around.
Specification :
(1) Dimensions : Main tester : 185 x 105 x 50mm; receiver : 218 x 46 x 29mm.

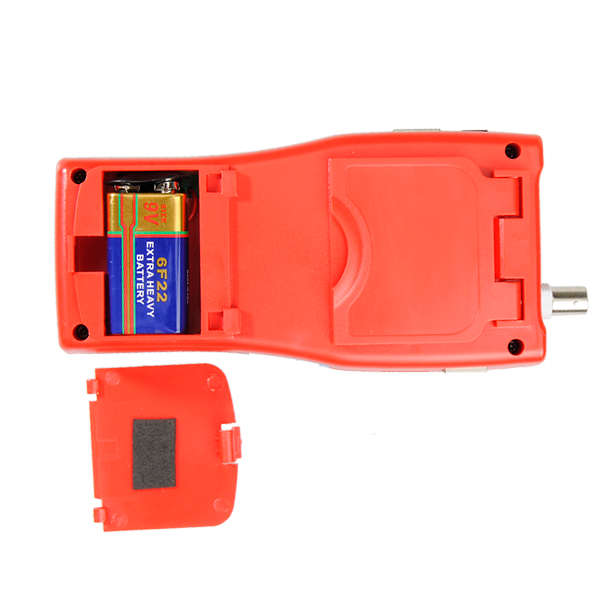

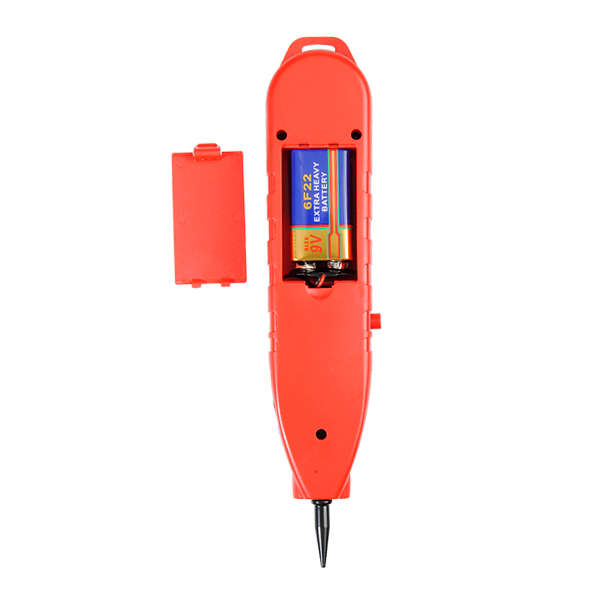

(2) Power supply : main tester : 9V laminated battery; receiver : 9V laminated battery.

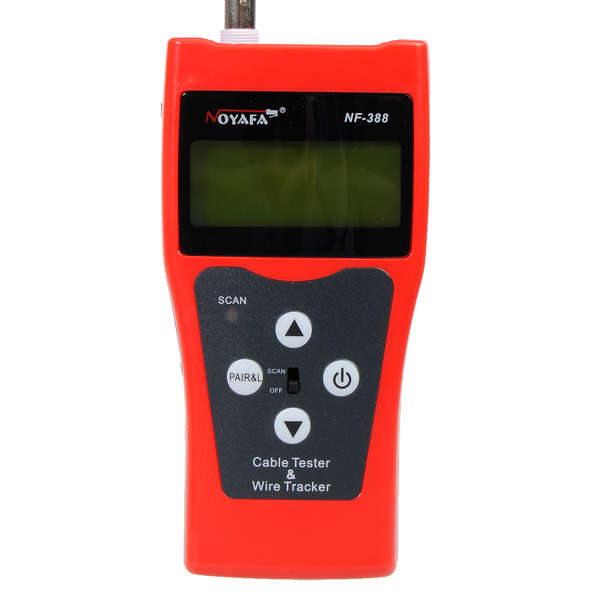

(3) Display : dedicated 4 x 16 character screen LCD dot matrix (effective viewing area 61.6X25.2mm of).
(4) Test Cable Type : STP / UTP twisted pair, coaxial cable, telephone line.
(5) probe cable types : directly looking 5E, 6E, telephone lines, coaxial cable, USB line and other cable.
(6) Operating ambient temperature : -10 degrees to +60 degrees.

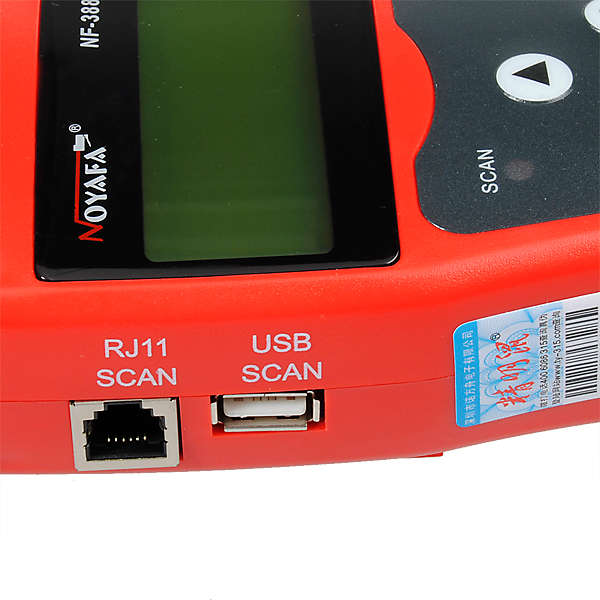

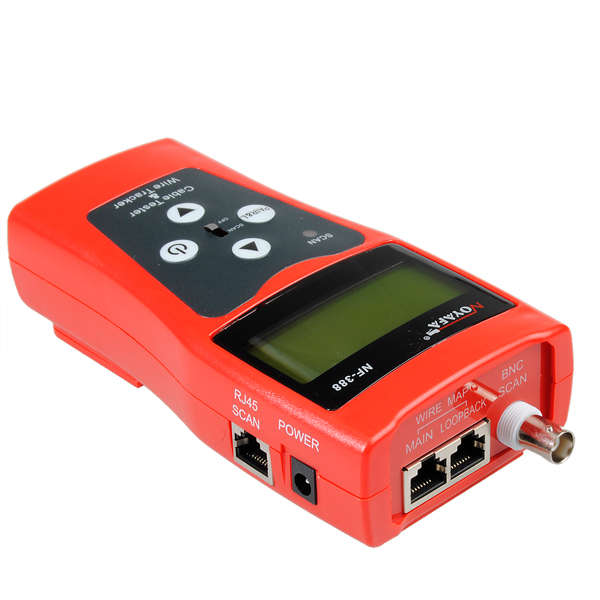

(7) Test instrument port and probe :

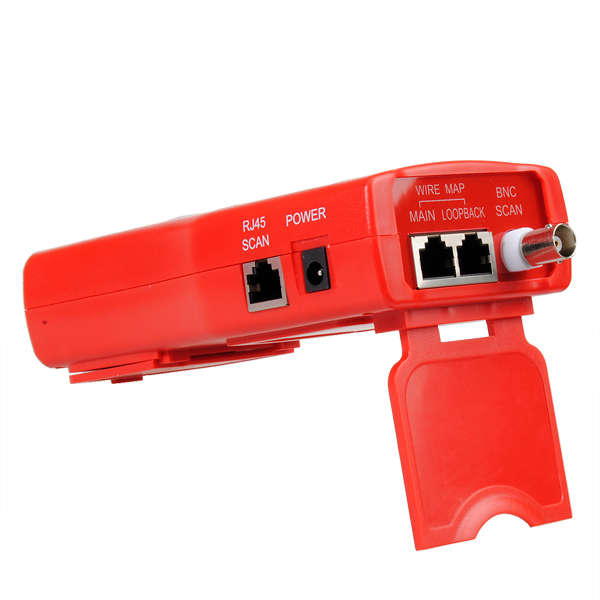

Main tester : RJ45 master port (MAIN), RJ45, deputy port (LOOPBACK),
RJ45 the Hunt ports; receiver probe; remote recognizer RJ45 port (R).
Additional BNC and RJ11 converter measurable coaxial cable, telephone line communication.
(8) Twisted-pair length measurement : range : 1-350 meters (3-1200 feet)
Calibration accuracy : 3% (+ /-0.5M, or + /-1.5ft). (Calibration cable> 5 m)
The factory accuracy : 5% (+ /-0.5M, or + /-1.5ft). (AMP, AT & T5 class lines)
Show : Meters or Feet.
(9) Length Calibration : the user can be used a known length of cable, its own calibration coefficients of the calibration cable length greater than 5 meters.
(10) line sequence and cable fault location : fault detection circuit, open circuit, short circuit, reverse polarity, cross and string around.

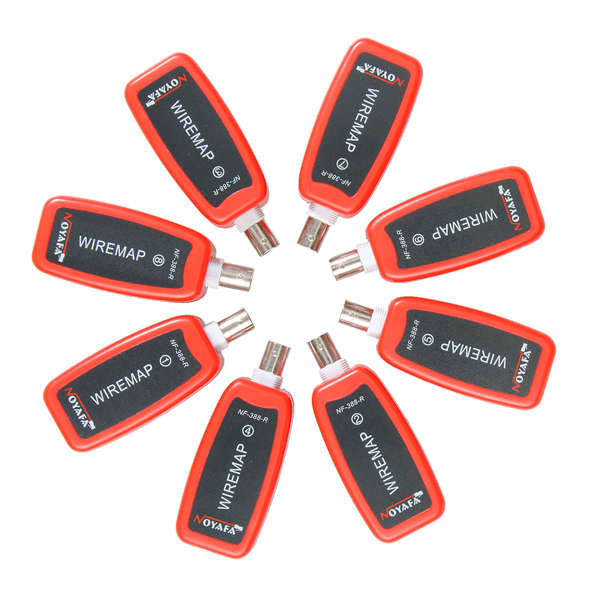

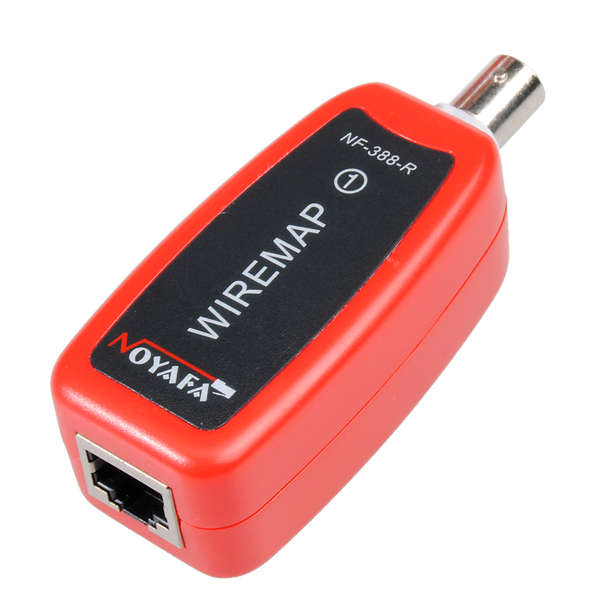

(11) cable positioning : 8 remote passive test jacks (ID1-ID8).
(12) automatically delay shutdown time : 30 minutes without operation.

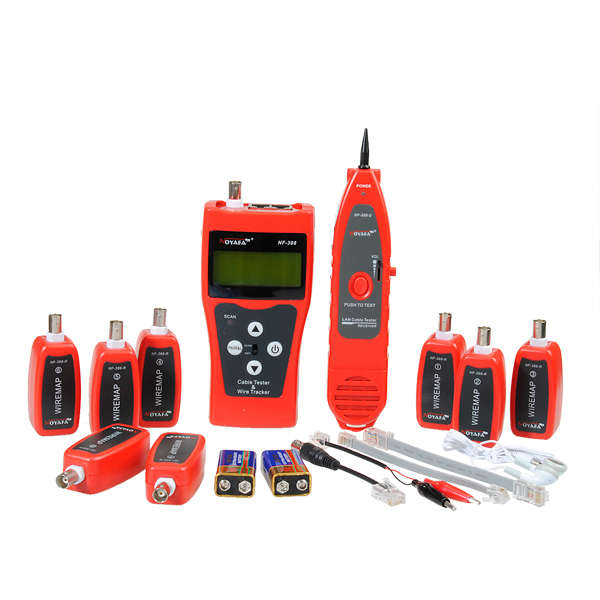

Package includes :

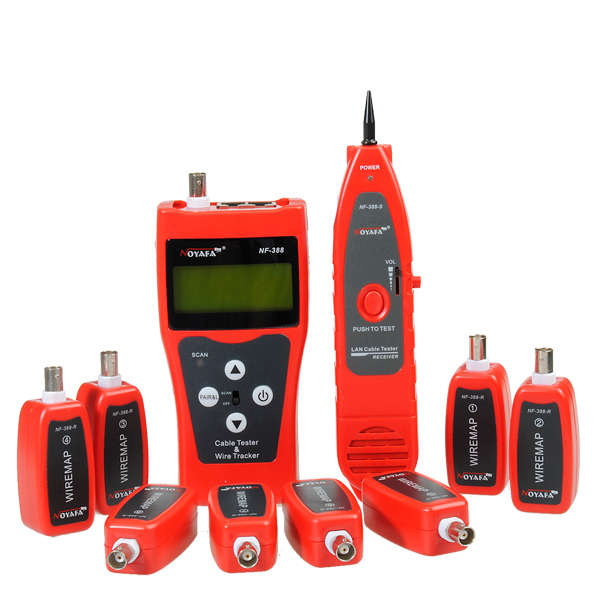

1 x NF-388 Network Cable Tester (main tester and receiver) with 8 Remote Identifier
2 x 9V battery
1 x Portable Storage Bag
1 x Full accessories set as following pictures shows
Comes in color retail box for you.
Details pictures :
