Description:

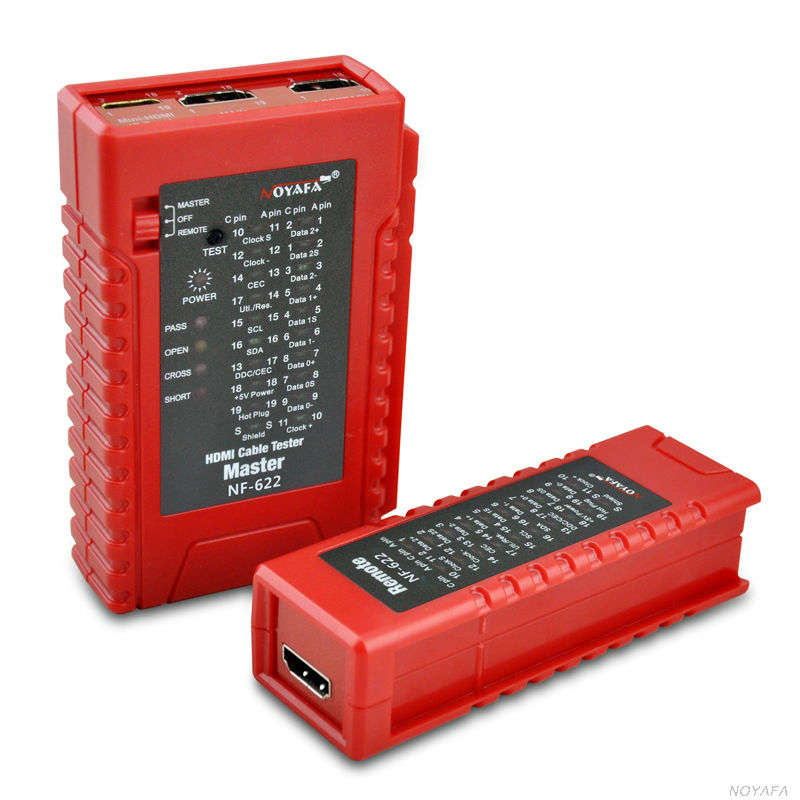

NF-622 HDMI Wire Cable Tester Tracer Check Disorder Short Open and Cross Status of HDMI Cable
Features:
1. Fast and accurate verification with type A - A, A - C,C-A and C - C connectors.
2. Check disorder, short, open and cross status of HDMI cables.
3. Mapping continuity and proper configuration.
4. 19 pins and grounded connection and 4 status leds.
5. Capable of checking wiremap only with master unit.
6. Adjustable test modes: Fast/slow scan/manual test for step by step.
7. Design with loopback function.
8.Low battery indication.
9. Beeper indication.
Specification:
Cables versions support: HDMI cables with type A & C connectors conforming to 1.0,1.1,1.2,1. 2a,1.3,1.3a,1.3b,1.4,1.4a,Category 1 and category 2 HDMI cables.
Support test: 19 pin to pin wiremap and shielding detection.
Test interface of master unit: HDMI ( type A) x 2, Mini HDMI (type A ) x1.
Test mode: Fast / slow scan / step by step.
Test distance: Under 50 meters
Status Display: 19 leds and shield led on both master and remote unit
4 leds (pass, open, short, cross)
Low battery indication: 6.0V
Power source: DC 9V (NEAD 1604/ 6F22) x1 (NOT included)
Environment
Operating: 0 to 40¿¿¿< 80% RH
Storage: -10 to 50¿¿¿<70%RH
Master unit Dimensions:103 x 66 x 27mm
Remote unit Dimensions: 103 x 35 x 27mm
Attention:
1.Don't connected high voltage lines to avoid buring out the machine.
2.Put into the right place to avoid hurting others,because of the sharp part.
3.Connected the cable to the right port.
4.Read the user manual before use it.
Package included:
1 x NF-622 Master unit
1 x NF-622 Remote unit
1 x Portable Bag
