NF-8209 Network Cable Tester with PoE Wire Tracker CAT5e CAT6 CAT6a Cable

Product Description

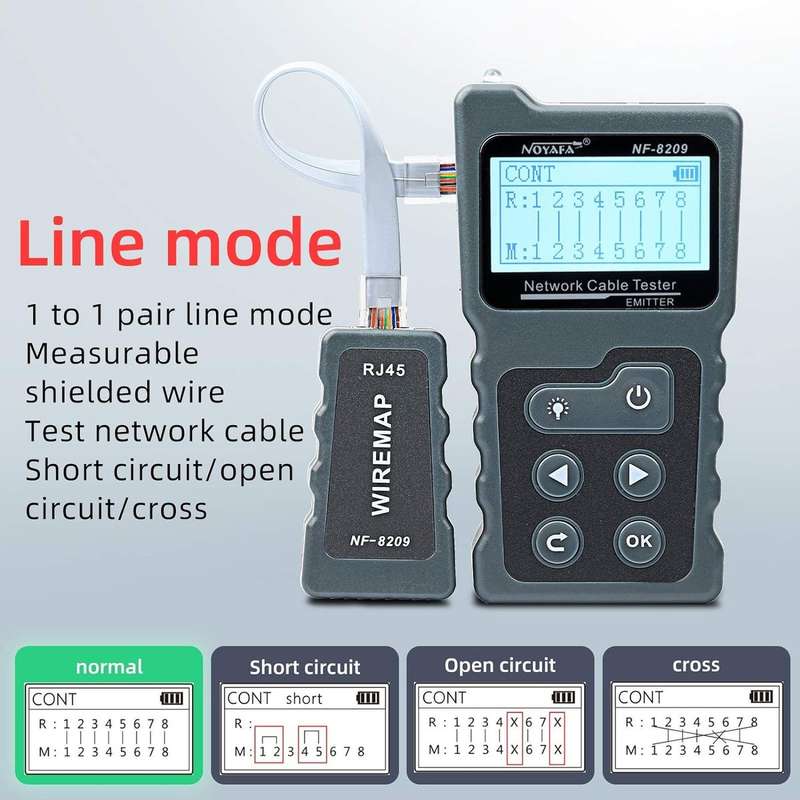

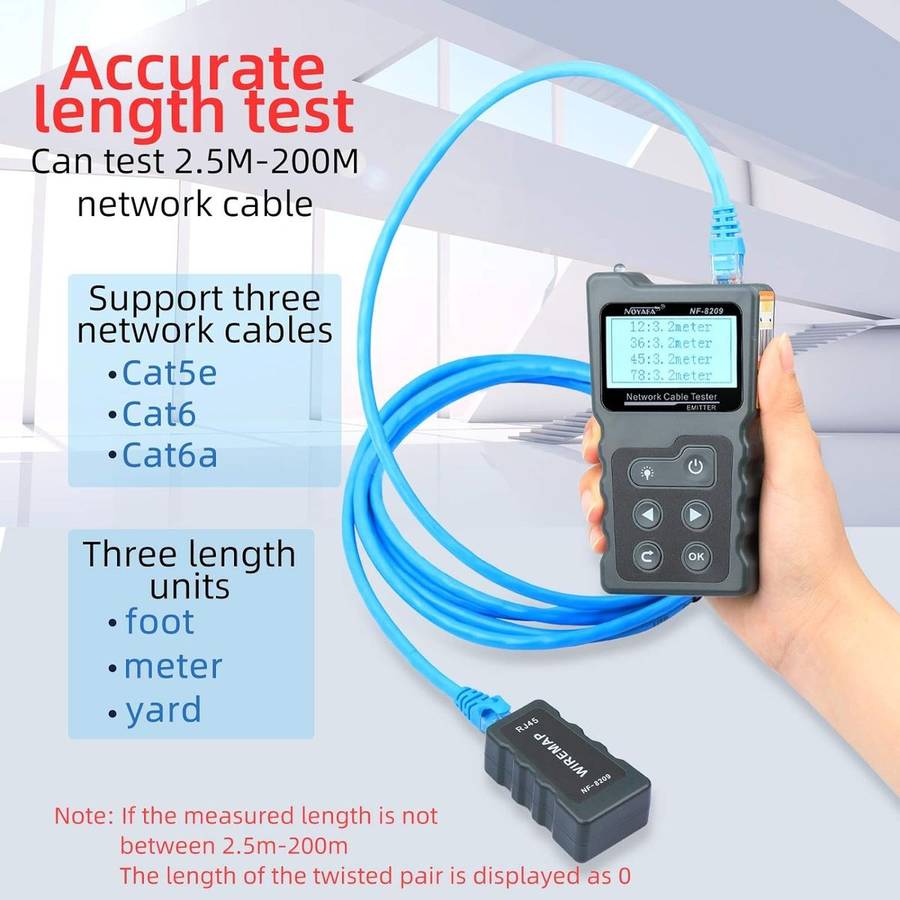

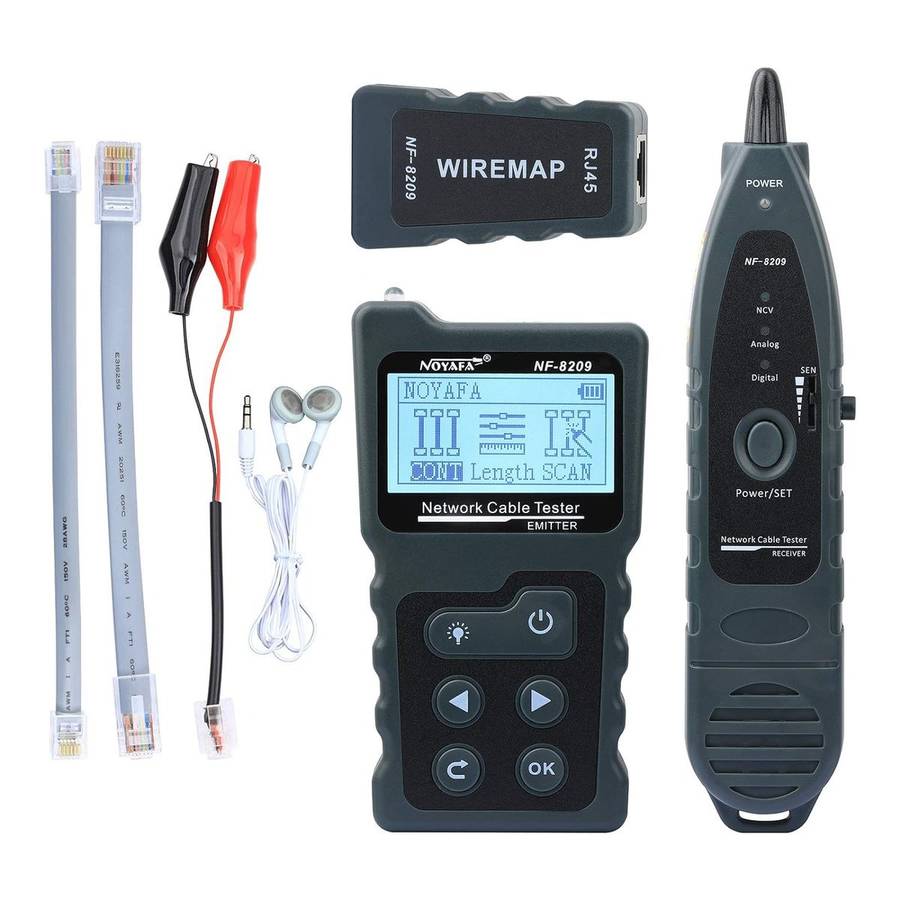

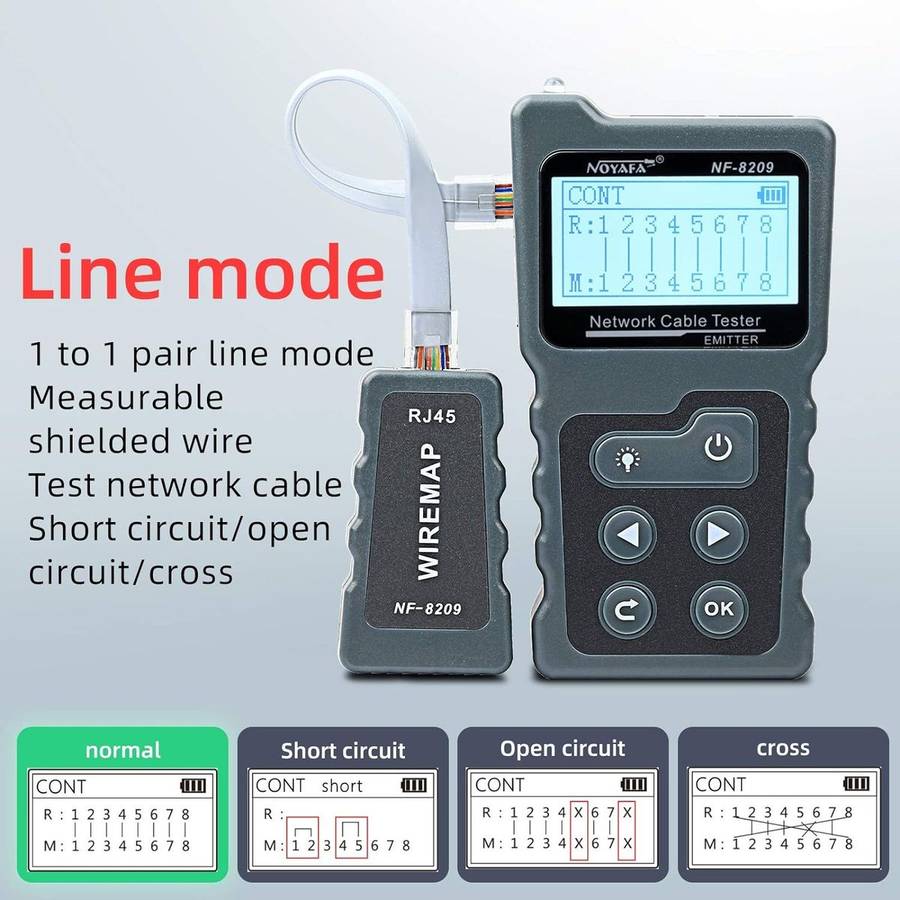

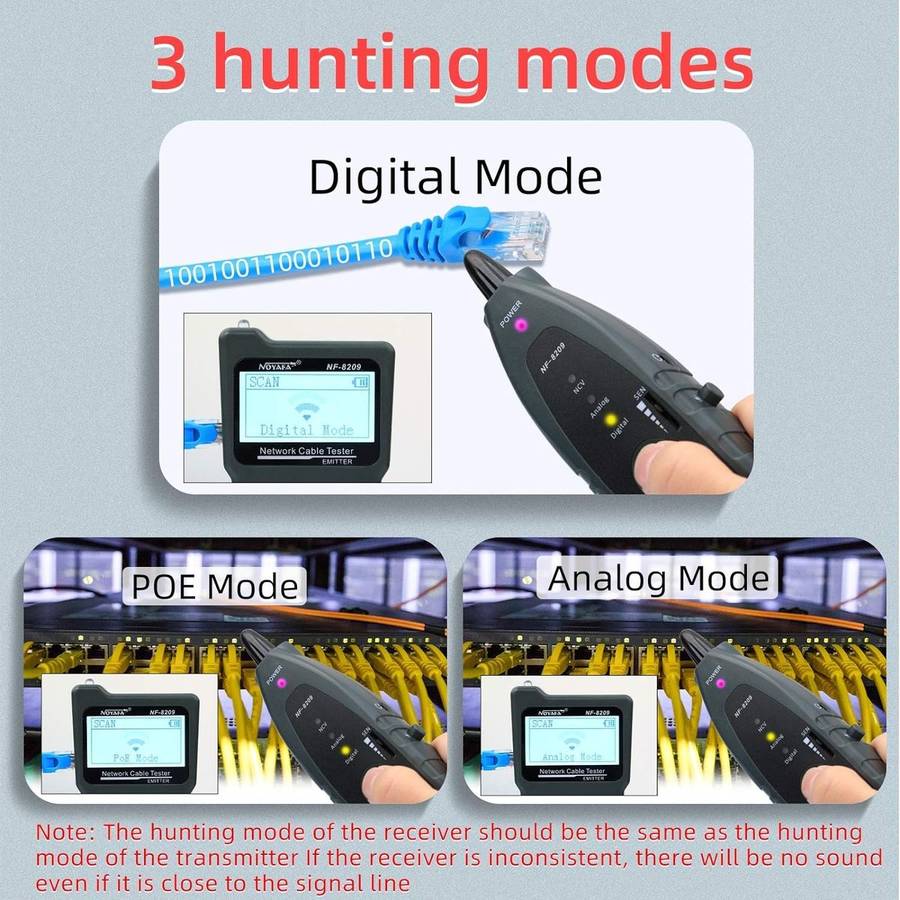

Produce Overview:NF-8209 is a new generation to offer digital and analog signaling all in one network toner and probe.It has three modes for options to track cable like digital mode,analog mode and PoE mode.That means it's equipped with the most powerful cable location technologies for any work environment.Also,it includes cable length measurement,cable faults testing,PoE testing,hub blink and NCV function,all these makes it a must-tool for cabling engineers.NF-8209 Specification:EmitterCable type:Cat5e, CAT6, CAT6a (ST&UTPWiremap with switch directly:YesMax rang(Wiremap & Scan):600mLength test range:2.5 200mLength Accuracy: 1.6mLength Breakage location:YesScan Max. Signal voltage:9 1Vp-pecan Frequency:130KHzScan Analog/Digital mode:YesPoE test range:DC 5 60V standard / non-standard PoE switch PoE voltage display:YesPSE type:Standard:IEEE 802.3af/at;Non standard voltage protection:DC48V 5mALCD display:128 64 Dot-matrix with backlight power supply:AAA 3(Not includedMax working current:<150mAReceiver:Sensitivity adjustable:YesAC Voltage detecting:YesBattery type:9V 1PcsMax working current:<100mARemote:Wiremap Port:RJ45 Packing List:1 Emitter1 Receiver1 Remote1 Earphone1 Crocodile Clip Test Line2 Cable Lead1 Carry Bag1 Manual (English)

What's in the box
1 X NF-8209 Network Cable Tester with PoE Wire Tracker CAT5e CAT6 CAT6a Cable
