NFC RFID Module V3 Schematic + Library PN532 for Arduino

NFC RFID Module V3 Schematic + Library PN532

Product Description

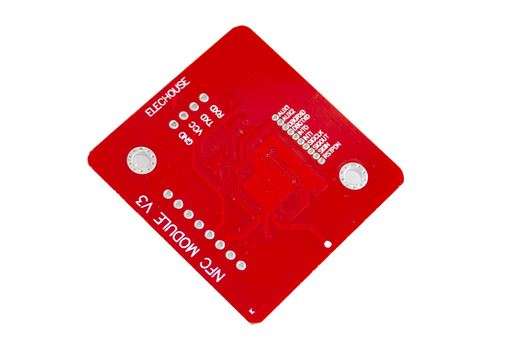

This is the NFC RFID Module V3 Schematic + Library PN532 for Arduino and Android.

Integrate with ToGGeL

Do you require complete end to end setup including software? If this is a requirement, please contact us and we will arrange complete setup with our integration partner.

Product Features

• ^{Supply Voltage: 3.3V-5V}
• ^{Gilt PCB and Small dimension and easy to embed into your project}
• ^{Support I2C.SPI and HSU (High Speed UART), Change between those modes when required}
• ^{Support RFID reading and writing}
• ^{SupportP2P communication with peers}
• ^{Support NFC with Android phone}
• ^{Typical Operating Distance have been updated to 5cm~7cm reading distance}
• ^{Work in NFC Mode or RFID reader/writer Mode}
• ^{6RFID reader/writer supports:}
• ^{1k, 4k, Ultralight, and DesFire cards}
• ^{ISO/IEC 14443-4 cards such as CD97BX, CD light, Desfire, P5CN072 (SMX)}
• ^{Innovision Jewel cards such as IRT5001 card}
• ^{FeliCa cards such as RCS_860 and RCS_854}
• ^{Plug and play, for compatible}
• ^{Built in PCB Antenna, with 4cm~6cm communication distance}
• ^{On-board level shifter, Standard 5V TTL for I2C and UART, 3.3V TTL SPI}
• ^{Work as RFID reader/writer}
• ^{Work as 1443-A card or a virtual card}
• ^{Exchange data with other NFC devices such as smartphones}

Product Package Contents

•     _{1x PN532 NFC RFID Module}
•     _{1x 2.54mm spacing 4pin Cable}
•     _{1x White Card}
•     _{1x Key Card}
•     _{1x bended male pins}

Integrate with ToGGeL

Do you require complete end to end setup including software? If this is a requirement, please contact us and we will arrange complete setup with our integration partner.

Please Note: Locally stocked, Available for immediate shipping!
