Product Description

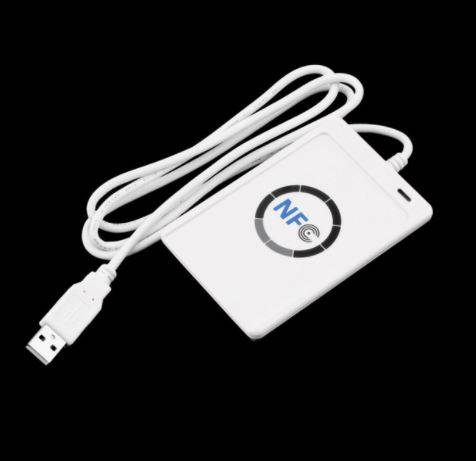

The NFC RFID Smart Card Reader - ACR122U is a PC-linked contactless smart card reader/writer developed based on the 13.56 MHz Contactless (RFID) Technology, Compliant with the ISO/IEC18092 standard for Near Field Communication (NFC), it supports not only for Smart Card Reader and ISO 14443 A and B cards but also all four types of NFC tags. ACR122U is compliant with both CCID and PC/SC. Thus, it is a plug-and-play USB device allowing interoperability with different devices and applications. With an access speed of up to 424 kbps and a full USB speed of up to 12 Mbps, ACR122U can also
read and write more quickly and efficiently.
In order to increase the security level, ACR122U can be integrated with an ISO 7816-3 SAM slot. Furthermore, the ACR122U NFC Reader is available in module form, permitting easy integration into bigger machines, such as POS terminals, physical access, systems and vending machine

Product Features

• ^{Identity verification, data exchange & contactless transaction}
• ^{Supporting different OS}
• ^{USB 2.0 Full Speed Interface}
• ^{Operating Frequency: 13.56MHz}
• ^{CCID Compliance}
• ^{Smart Card Reader:}
• ^{Read/write speed up to 424 kbps}
• ^{Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)}
• ^{Supports ISO 14443 Type A and B cards, for Smart Card Reader, FeliCa, and all 4 types of NFC (ISO/IEC 18092) tags}
• ^{Built-in anti-collision feature}
• ^{Application Programming Interface:}
• ^{Supports PC/SC}
• ^{Supports CT-API (through wrapper on top of PC/SC)}
• ^{User-controllable bi-color LED}
• ^{User-controllable buzzer}

Product Package Contents

• ^{1 X ACR122U NFC Contactless Smart Card Reader&writer}
• ^{5 X for Smart Cards}
