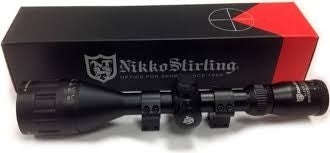

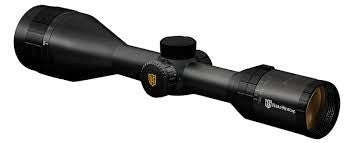

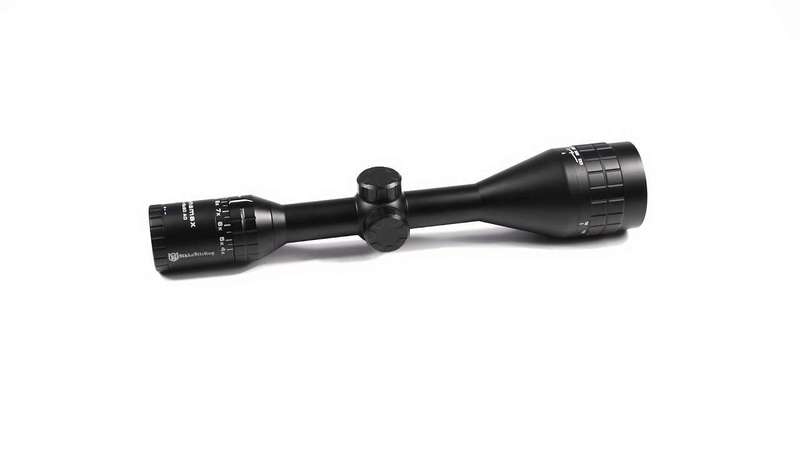

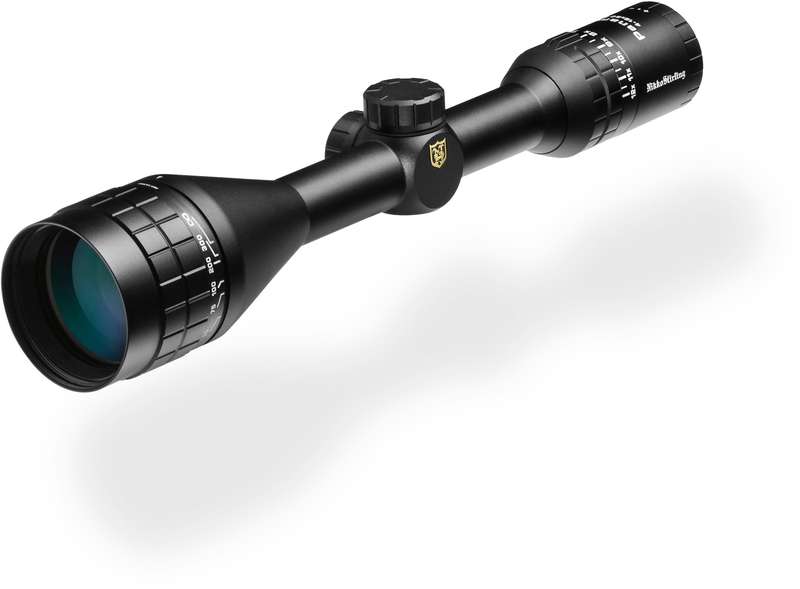

NIKKO STIRLING PANAMAX 4-12X50 AO 1"" /HMD
Upgrade your shooting game with the NIKKO STIRLING PANAMAX 4-12X50 AO 1"" /HMD.
This wide angle lens offers an impressive field of view, boasting 20% more than standard 1" (25.4mm) tube scopes. With its larger sight picture and advanced multi-coated lens technology, it provides clear and steady visuals, even at higher magnifications.
Constructed with a 1-inch hard anodized one-piece aircraft grade aluminum main body tube, this scope is durable and reliable. Its fully multi coated lens surfaces feature Nikko's new proprietary Low Dispersion ETE Microlux Gen 2 coating, allowing for maximum light transmission.
Rated for use with airguns, rimfire, and centerfire rifles, this scope is also dual sealed and can handle the heaviest-recoiling magnum rifles. Plus, its Wire Half Mil dot reticle allows for precise hold-over and wind correction adjustments.
Main Features
- 50mm lens - wide angle
- 4-12x variable magnification
- Half mil dot reticle
- 1" /25mm tube
- Parallax focus adjust from 10 yards/9.1m
AO parallax 10 yards to infinity
- Waterproof - Shockproof - Fogproof
- Nitrogen filled and sealed tube
- Bikini lens caps included.
Half Mil Reticle
Basically mil dot x2 - as half mils are marked as mid-point dashes to give you greater precision than ever before.
Many more aim and calculation points than standard mil dot - or as Nikko write it "making precise hold-over and wind correction adjustments easy and effective"
Note - Picture below exaggerates the mil sizes on the left just to contrast - main mils are the dots. Half mils are the lines.
50mm Fully Multi Coated Lens:
- Fully Multi Coated
- Each individual glass lens surface is fully multi coated with Nikko's new proprietary Low Dispersion ETE Microlux Gen 2 coating and polished to allow the maximum amount of transmitted ambient light into the main tube.
- Very fast target acquisition and moving target tracking.
4-12x variable magnification
- Adjust from 4x to 12x. The most popular all purpose magnification range these days
- A great magnification range for general purpose hunting.
- Very Easy and very fast dial adjustment.
AO Parallax focus adjustment (AO = Adjustable Objective, the lens casing)
Parallax is the term that describes the difference in angles between objects that are seen up close and those seen far away. When you look at telephone poles pass by on the side of the road, those closest to your car seem to pass very fast, while the ones far away seem to go very slow. That difference is due to parallax.
The reticle in your scope is like a telephone pole that's very close. If you move your head on the stock while watching the target through the scope, it's probably possible to see the reticle move against the target. That affects where you perceive the aim point to be, and that affects your accuracy.
Parallax focus adjustment correction reduces this phenomenon to the greatest extent possible.
Specifications
- Tube Diameter: 1 inch - 25.4mm
- Lens Coating: Fully Multi Coated
- Warranty: Limited Lifetime for manufacture defect issues.
- Sunshade Included: No
- Lens Covers Included: Yes - bikini style - NOT flip up
- Finish: Matte black
- Water/Fog and shockProof: Yes
Magnification and reticle
- Fast Focus Eyepiece: Yes
- Min Power magnification : 4x
- Max Power magnification : 12x
- Reticle Construction: Wire
- Reticle: 1/2 Mil-Dot
- Illuminated Reticle: No
- Holdover Reticle: Yes
- Reticle Focal Plane: 2nd
Adjustments, view and focus
- Adjustment Click Value: 1/4 MOA - 60 MOA range
- Turrets: Medium profile with screw on protective covers
- Finger Adjustable Turrets: Yes
- Click or Friction Adjustment: Click
- Reset to Zero Turrets: No
- Parallax Adjustment: 10 yards to infinity
- FOV ft at 100 yards - 10.9-32.9
- FOV m at 100m - 3.6-11
- Eye Relief - 3.1" - 80mm
- Click Value MOA - 1/4 with 30 full click range up/down and left/right
- Length - 321mm / 12.7"
- Weight: 600 grams / 21.2oz
Dimensions in cm (for inches divide figures by 2.54)
A - 32.10
B - 12.7
C - 4.8
D - 4.5
E - 8.5
F - 10.9
G - 6.1
H - 4.3
I - 2.54
