Nixie Clock - DIY Build your own clock
RESTORE MANTLE CLOCKS OR DESIGN YOUR OWN DE-CONSTRUCTED RETRO CLOCK OR FIT THIS TO YOUR STEAMPUNK PROJECT
A great kit for retrofitting old mantle clocks with Nixie displays.
DIY project suitable for electronic students and hobbyists with electronic assembly experience.
Specifications:

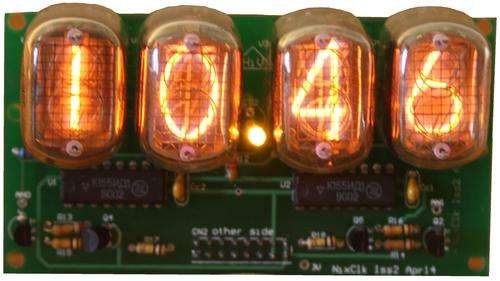

4x IN-12 Nixie numeric displays (18mm high HH.MM) - Unused old Soviet stock. Tubes are pre-tested.
Dallas DS1307 RTC real time clock
Battery back-up for time retention (7 years)
Nominal accuracy <10 minutes/year. Simple to correct time.
Atmel AT89C2051 micro-controller (pre-coded). ASM code available for student customers.

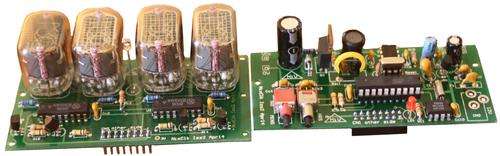

Circuit layout on small footprint suitable for retro-fitting into old mantle clocks.

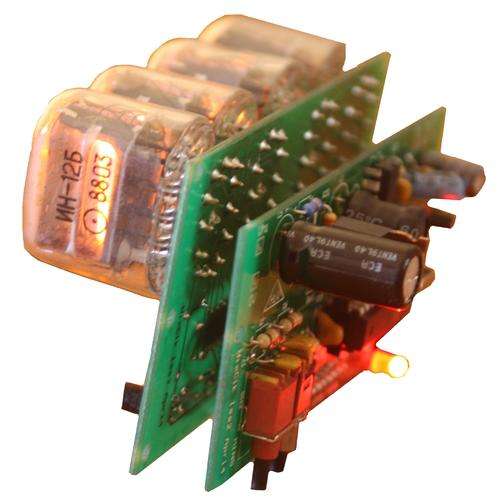

Dim. 95mmW x 55mmH x 60mmD (incl.Nixies)
Power requirement: 12VDC 200mA 2,4VA nom. I recommend the use of a 12VA 6W adapter (use local wall adapter).
Supplied: PCBs, all components and Nixies, circuit diagrams and instructions. Local support.
Not Supplied: 12VDC 6VA power supply or any housing materials.

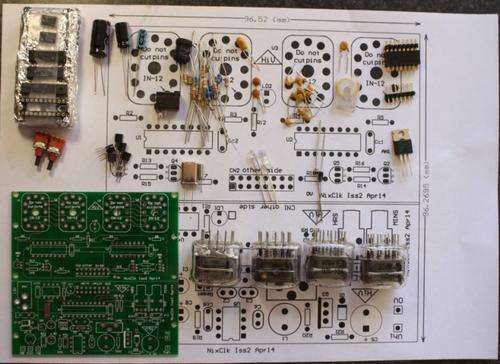

Kit supplied as loose components. You must have experience in electronic PCB assembly.
Shipping by courier until further notice
