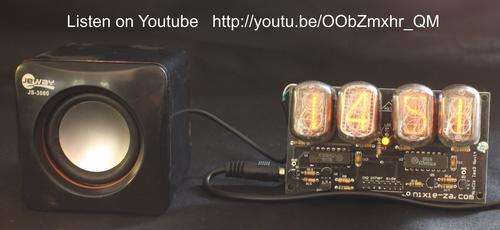

Nixie clock with CHIME - build your own retro kit

Nixie Chime Clock Kit -  DIY Retro-fit or Build your own clock

(Built-up versions also available)

RESTORE MANTLE CLOCKS OR DESIGN YOUR OWN DECONSTRUCT RETRO CLOCK

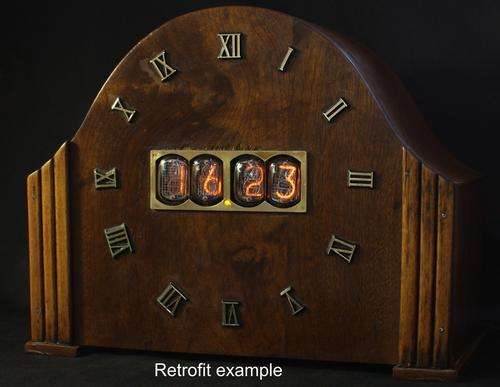

A great kit for retrofitting old mantle clocks with retro Russian Nixie neon displays.

 DIY project suitable for electronic students and hobbyists with electronic assembly  experience.

Specifications:

4x IN-12 Nixie (18mm high) numeric displays (HH.MM) Unused Soviet valves – Pre-tested.

Dallas DS1307 RTC real time clock

Battery back-up for time retention (up to 5 years)

Nominal accuracy : similar to quartz clock.. Simple to correct time.

Atmel AT89C2051 micro-controller. ASM code available for student customers.

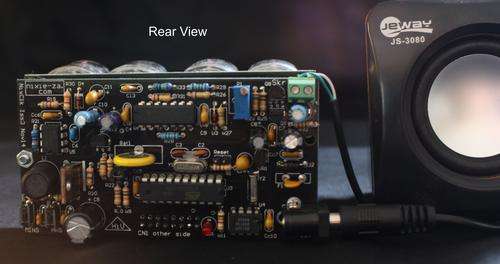

Circuit layout on small footprint suitable for retro-fitting into old mantle clocks.

Dim. 95mmW x 55mmH x 60mmD   (incl.  Nixies)

Power requirement: 12VDC 200mA  2,4VA  nom.  (use local 12V6W wall adapter).

Supplied:  PCBs, all components and Nixies, loudspeaker, circuit diagrams and instructions.

Not Supplied: Housing materials.

Optional: 12VDC 12VA power supply – R90

Shipping:       CONTACT SELLER BEFORE PURCHASING

                      RSA R60.00 domestic insured parcel.  International econoparcel – USD16.00
