Features:
-Pure Sine Wave Inverter
-Built-In MPPT solar charge controller
-Configurable input voltage range for home appliances and personal computers via LCD setting
-Configurable battery charging current based on applications via LCD setting
-Configurable AC/Solar Charger priority via LCD setting
-Compatible to mains voltage or generator power
-Auto restart while AC is recovering
-Overload/Over Temperature/Short circuit protection
-Smart batter charger design for optimized battery performance
-Cold start function
Specifications:
Inverter Mode:
-Rated Power: 5000VA/5000W
-DC Input:48VDC,105A
-AC Output:230VAC,50Hz,22A,1
AC Charger Mode:
-AC Input: 230VAC, 50Hz, 36A
-DC Output;54VDC,10A/60A
-AC Output:230VAC,50Hz,22A
Solar Charger Mode:
-Rated Power 4000W
-System Voltage:48VDC
-Max Solar Voltage (VDC): 145VDC
NB: Please note that the inverter needs to be connected to 4x12V Batteries.
What's in the box

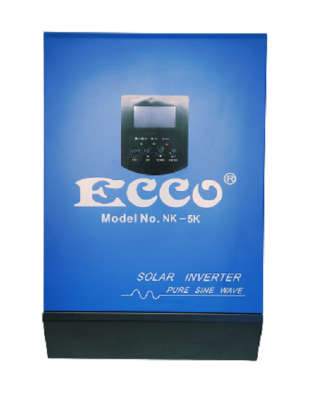

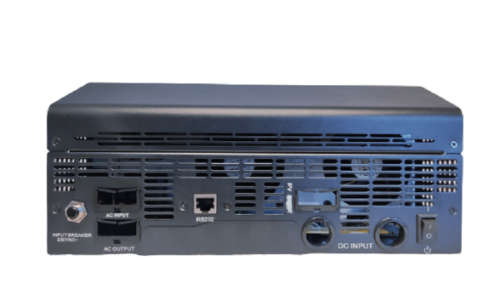

1x NK-5KVA 48V/80A Hybrid Pure Sine Wave Inverter - ECCO NK5
1x User Manual
