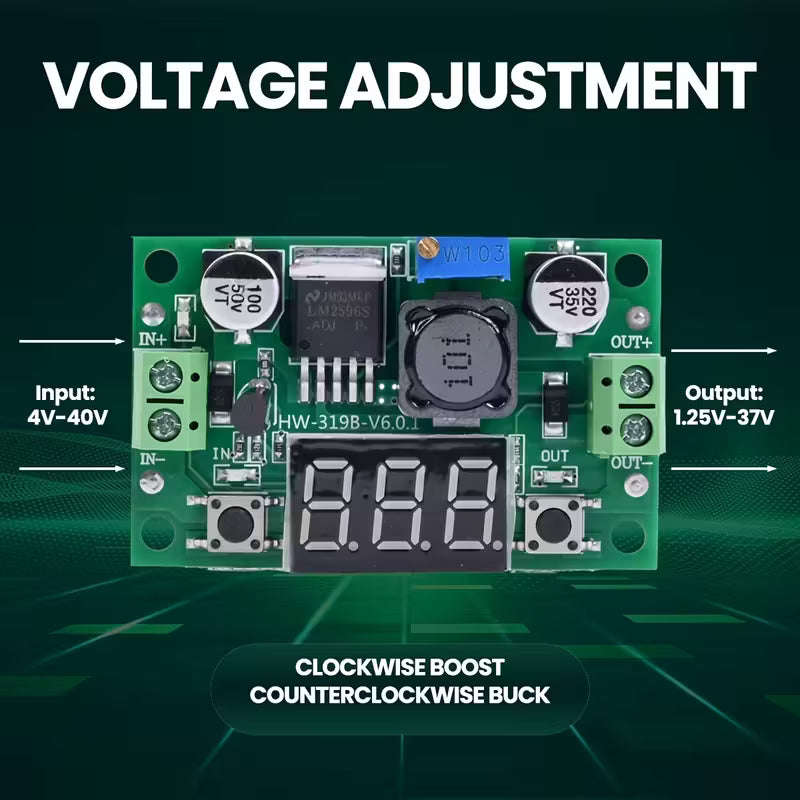

NODEMCU LM2596 Adjustable DC-DC Buck Converter Module (10000840)

with 1 Or 2 LM2596 Chips, Input Voltage from 4.0 to 40V And Output Voltage from 1.5 to 35V, Featuring an LED Voltmeter Display

The LM2596 DC-DC Voltage Regulator Adjustable Step Down Power Supply is a versatile and efficient device that allows you to regulate and adjust the voltage of your electronics. It is designed to convert a higher input voltage to a lower output voltage, making it perfect for various applications. This voltage regulator features a compact design and is capable of delivering up to 3A of continuous current. With its adjustable output voltage range of 1.5V to 35V, it is suitable for a wide range of projects and can be easily adjusted using the onboard potentiometer. The LM2596 DC-DC Voltage Regulator also offers excellent load and line regulation, ensuring a stable and reliable power supply for your devices.

Specification:
1. With the voltmeter shows voltage meter error ± 0.1V, the range 0-40V. (Note: To ensure the accuracy of the voltmeter, please ensure that the input voltage of 4V and above)
2. Touch the key to switch measuring input or output voltage, and has a light show which is being measured voltages
3. Power off memory function, show that road after power voltage values measured for the last time
4. Press the touch button for 3 seconds to turn off LED display, touch the button again to turn on the LED display
5. The band terminals, no iron can also be easy to use, and retention wire connection point
6. Input voltage 4.0-40V (input voltage to the output voltage must be higher than 1.5v.)
7. The adjustable output voltage range of 1.5V-35V continuously adjustable (input voltage must be higher than the output voltage to a high of about 1.5V)
8. The maximum output current up to 3A, normal and stable operating current of 2A
9. the internal oscillation frequency 150KHz, belonging to the second generation of switching voltage regulator, low power consumption, high efficiency
10. The current switching LEDs are red
