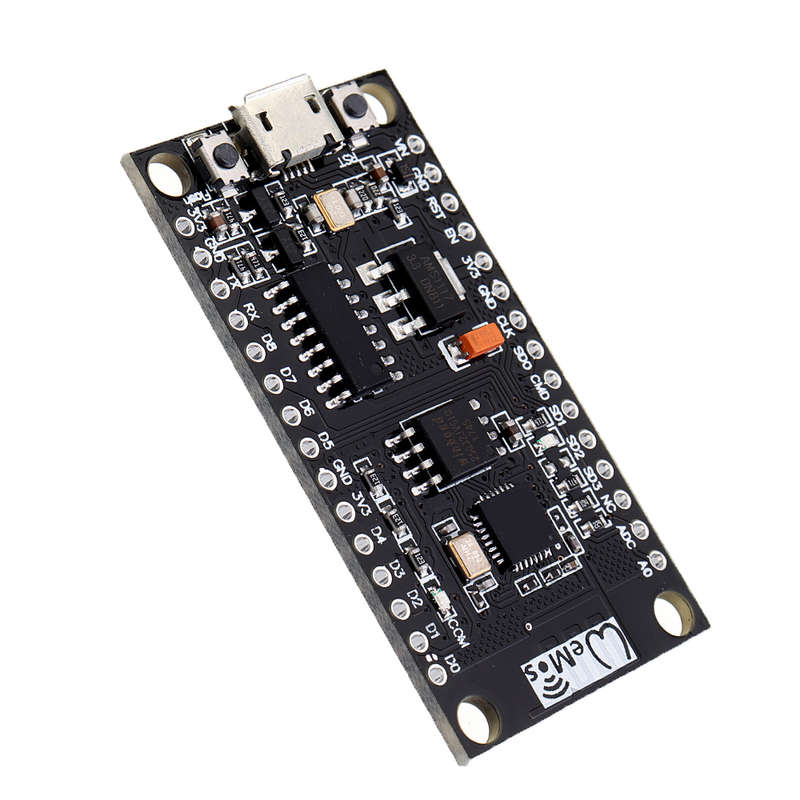

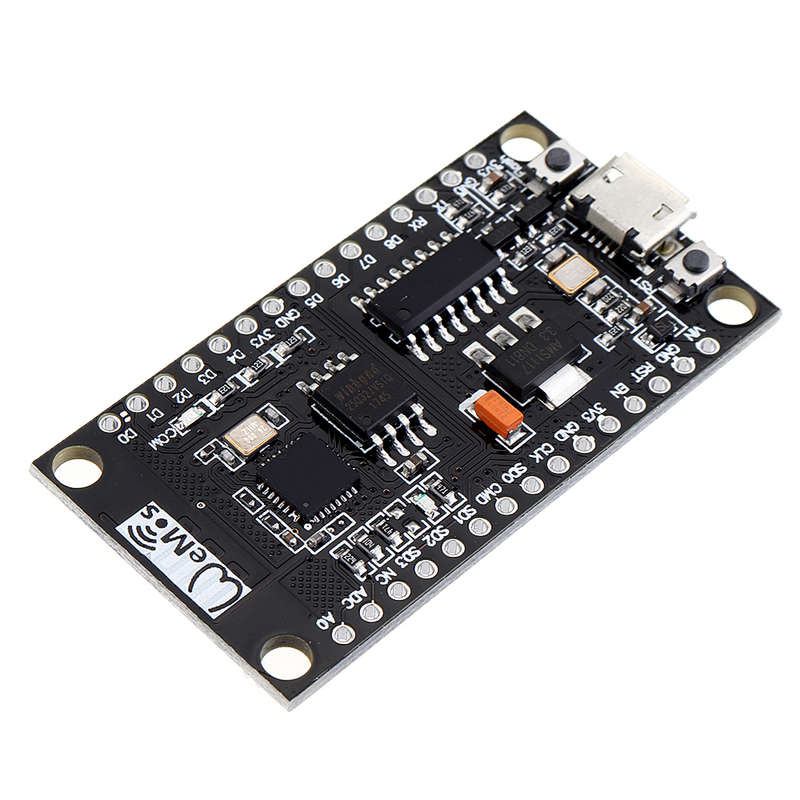

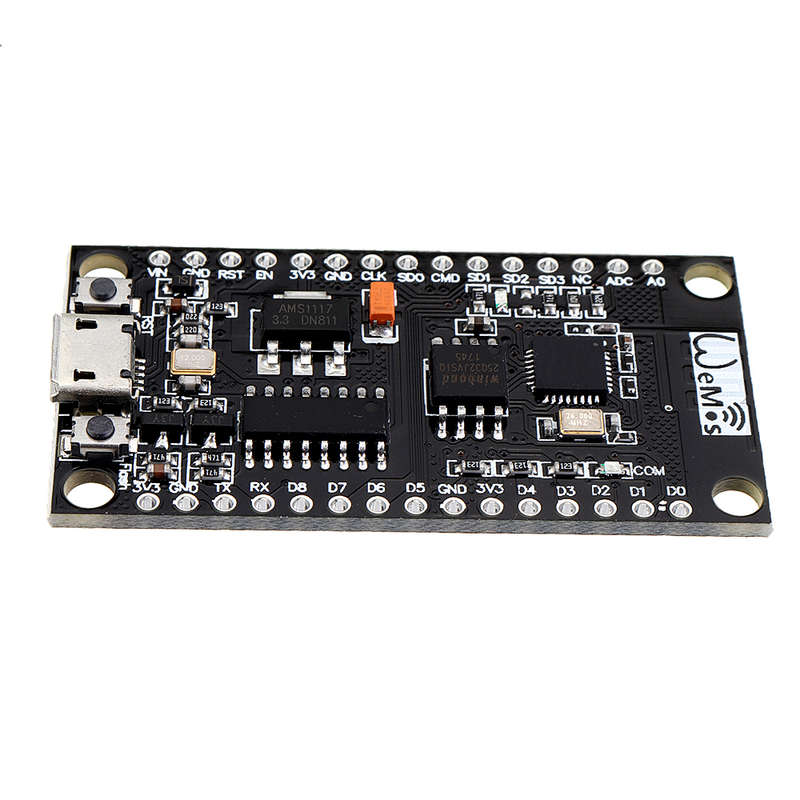

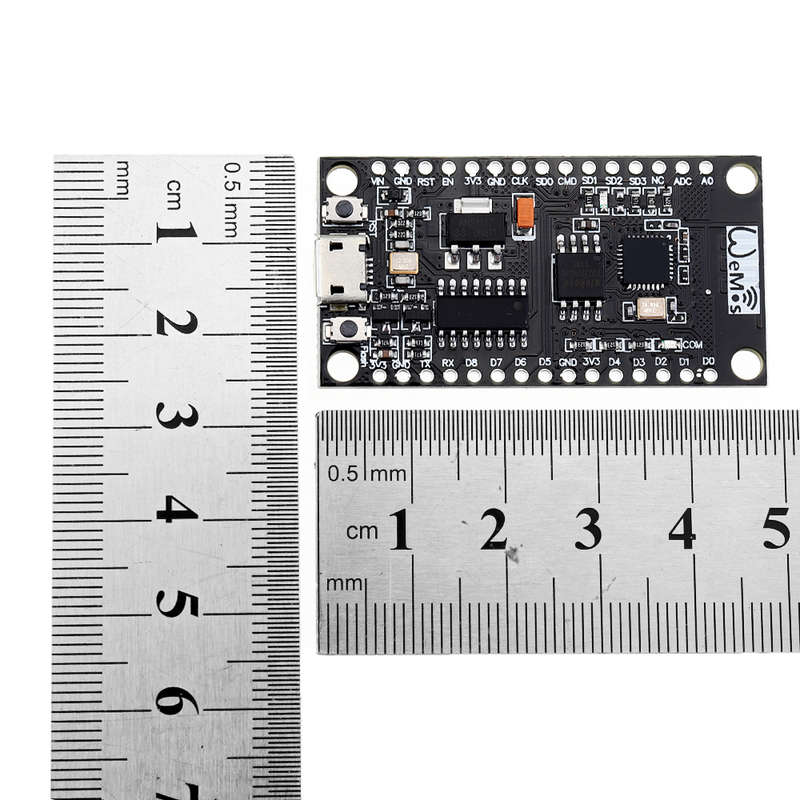

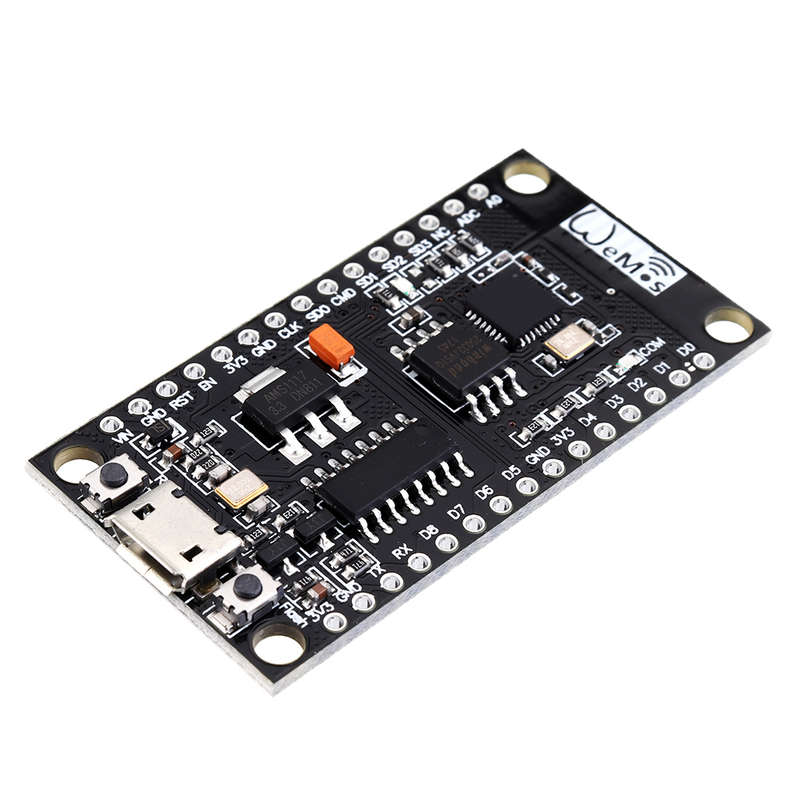

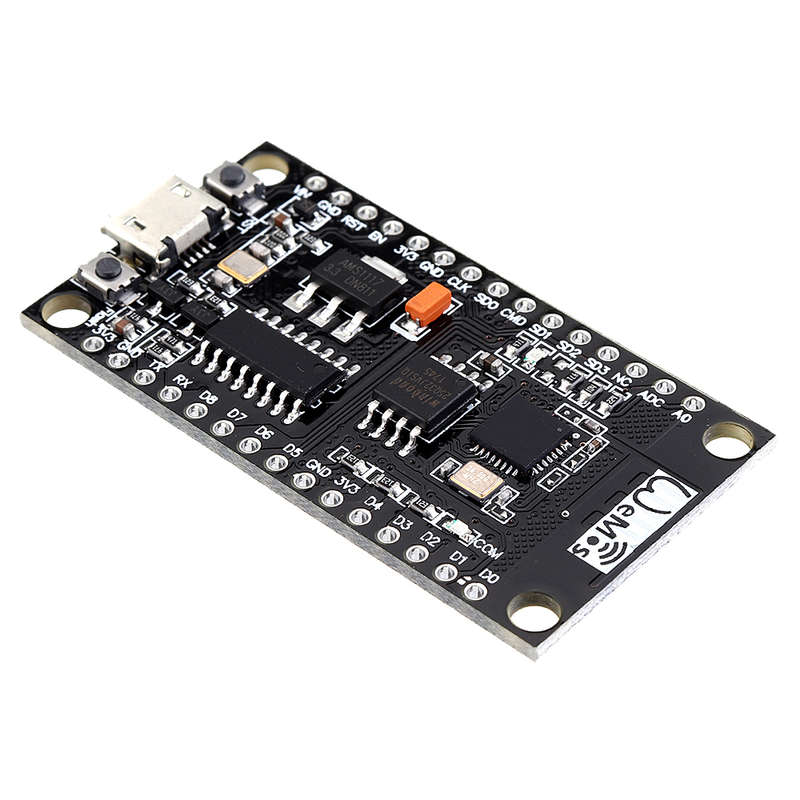

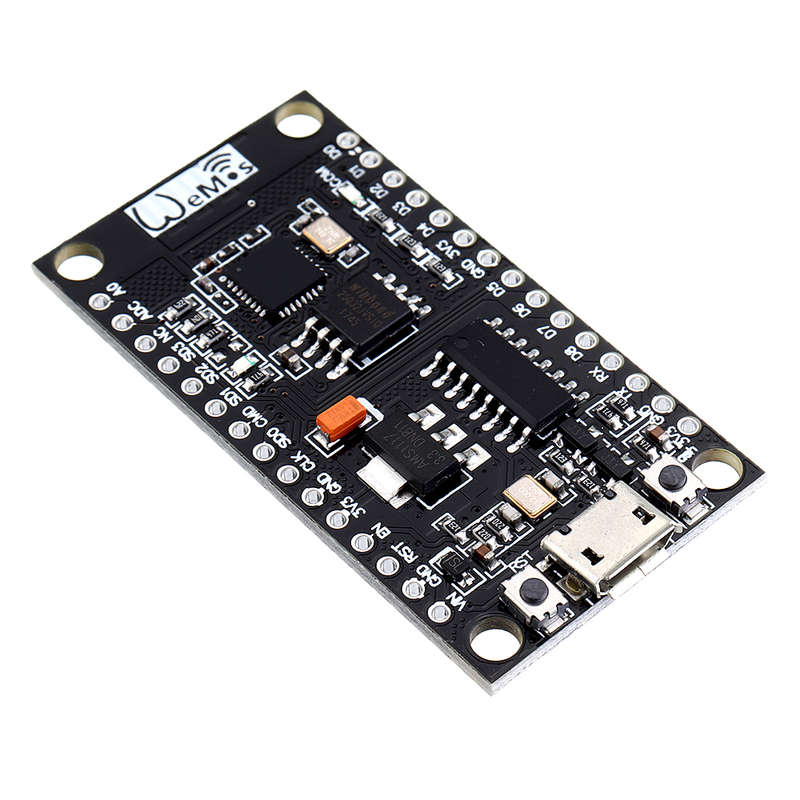

NodeMCU V3 340G Lua WIFI Module Integration Of ESP8266 Extra Memory 32M Flash

20 available / new

R421.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3462

93.47 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

641130460

Description:

WIFI NodeM ESP8266+32Mb, module is based on widely explored esp8266 System on Chip from Expressif.
WIFI NodeM ESP8266+32Mb, compatible forNodeMCUboard. We add extra memory size to 32Mb. This better, for make big project with big library. You not need to worry about size of memory.
On board have USB-TTL serial converter CH340G, with Micro-USB socket.
PowerIn for DC 4~9V, to pin VIN.
Pin headers 2.54mm (0.1)15 pins x 2 linesin set. Don't soldered.

It combined features of WIFI accesspoint and station + microcontroller and uses simple LUA based programming language.
WIFI NodeM ESP8266+32Mb, offer:
Arduin0-like hardware IO. And can programming in Arduin0 IDE
Event-driven API for network applicaitons
10 GPIOs D0-D10, PWM functionality, IIC and SPI communicaiton, 1-Wire and ADC A0 etc. all in one board
Wifi networking (can be uses as access point and/or station, host a webserver), connect to internet to fetch or upload data.
For developing can use install to breadboard.

Package included:

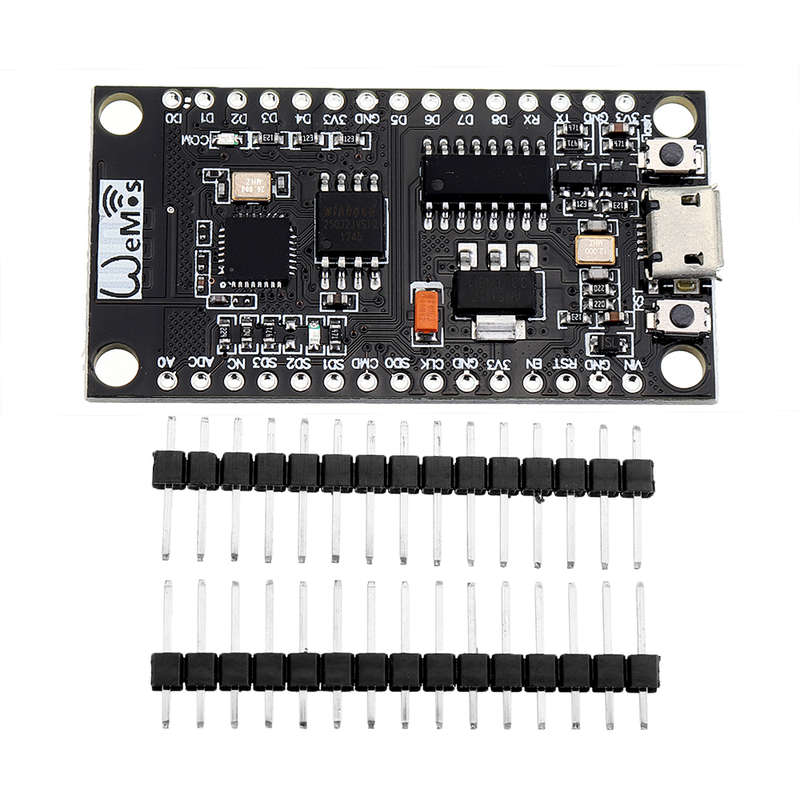

1 x NodeMCU V3 340G Lua WIFI Module
