Nokia 5110 LCD Display ***LOCAL STOCK***

Nokia 5110 LCD Display

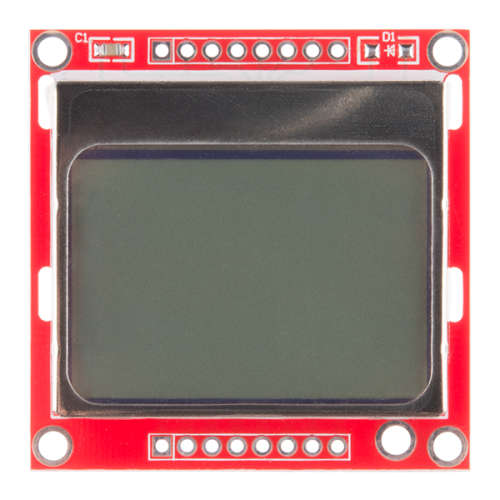

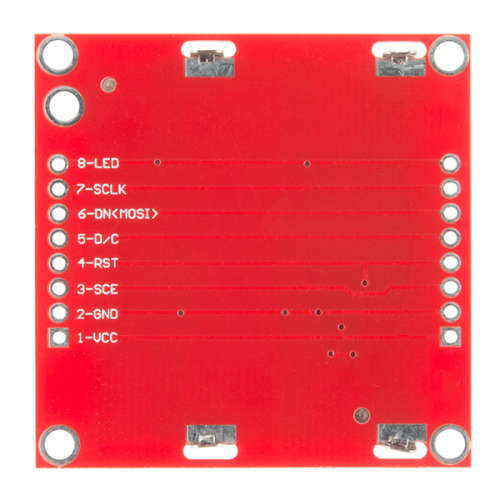

The Nokia 5110 is a basic graphic LCD screen for lots of applications. It was originally intended for as a cell phone screen. This one is mounted on an easy to solder PCB.

It uses the PCD8544 controller, which is the same used in the Nokia 3310 LCD. The PCD8544 is a low power CMOS LCD controller/driver, designed to drive a graphic display of 48 rows and 84 columns. All necessary functions for the display are provided in a single chip, including on-chip generation of LCD supply and bias voltages, resulting in a minimum of external components and low power consumption. The PCD8544 interfaces to microcontrollers through a serial bus interface.

48 x 84 Dot LCD Display
Serial Bus Interface with maximum high speed 4.0 Mbits/S
Internal Controller No.PCD8544
LED Back-Light
Run at Voltage 2.7 -5.0 Volt
Low power consumption; it is suitable for battery applications
Temperature range from -25°C to +70°C
Support Signal CMOS Input

This item is available in stock and is not drop shipped. This avoids delays, customs charges and extra VAT.
