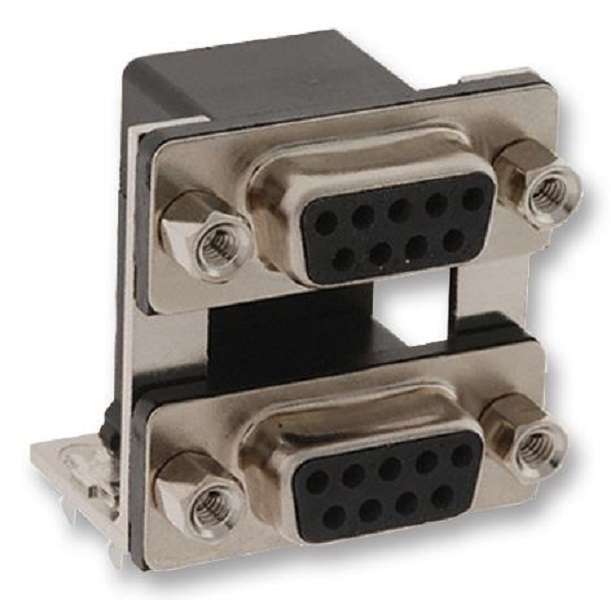

Norcomp (178-009-513R571) Stacked D Sub Connector, Dual Port, 9 Contacts

Stacked D Sub Connector, Dual Port, Upper - Receptacle / Lower - Receptacle, DE,9 ContactsProduct OverviewThe 178-009-513R571 is a 9-way Female over Female Right Angle Dual Ports D-subConnector, 178 series, with nickel-plated shell, gold-plated brass contacts,PA9T insulation and 4-40 hex standoffs/fork board locks. Nickel shell hasindents to provide grounding and additional retention.Black colour insulatorHigh performance stamped contactsProvides proper mating while maximizing available board spaceMetal shell for improved shieldingFully intermateable with other D-sub connectors5A Current rating1000MR Insulation resistance-55 to +105°C Temperature rangeApplicationsIndustrialProduct InformationGender: Upper - Receptacle / Lower - ReceptacleUpper D Sub Shell Size: DED Sub Shell Size: DENo. of Contacts: 9ContactsUpper D Sub Gender: Receptacle (View Associated Connectors)No. of Contacts Upper D Sub: 9ContactsConnector Mounting: Through Hole MountLower D Sub Shell Size: DEContact Termination Type: SolderContact Material: BrassLower D Sub Gender: Receptacle (View Associated Connectors)No. of Contacts Lower D Sub: 9Contact Plating: Gold Plated ContactsConnector Body Material: Steel BodyProduct Range: 178 Series
