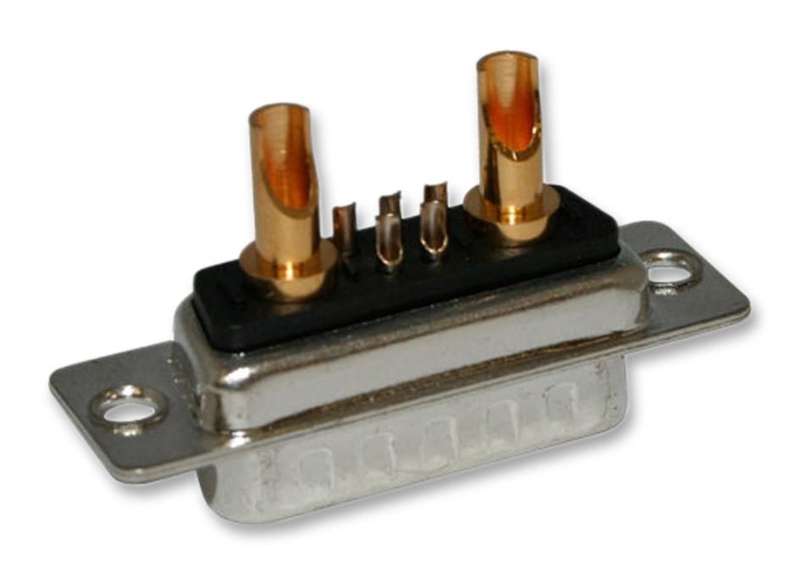

Norcomp (680M7W2203L201) Combination Layout D Sub Connector, 7 Contacts

Combination Layout D Sub Connector, Power-D 680M Series, DA-7W2, Receptacle, 7ContactsProduct OverviewThe 680M series POWER-D solder cup Mixed D-sub Connectors with machined copperalloy, full gold flash signal and power contacts with glass-filled thermoplasticinsulator and nickel-plated, steel shell. It is available in 12 industrystandard contact arrangements are 3W3, 3W3K, 5W1, 5W5, 7W2, 9W4, 11W1, 13W3,13W6, 17W2, 21W1 and 21WA4.Available in 9, 15, 25 and 37 sizes/positionsAvailable with 20 or 40A power contacts, 5A signalAllows signal, high current and high voltage in one connectorContacts are pre-loaded into the insulatorUL94V-0 FlammabilityApplicationsCommunications & Networking, Computers & Computer Peripherals, Power Management,IndustrialProduct InformationProduct Range: Power-D 680M SeriesInsert Arrangement: DA-7W2No. of Signal Contacts: 5ContactsGender: Receptacle (View Associated Connectors)No. of Contacts: 7ContactsContact Type: 5 Signal, 2 PowerNo. of Power Positions: 2Contact Termination Type: Solder CupD Sub Shell Size: DAConnector Mounting: Cable MountConnector Body Material: Steel BodyContact Material: Copper AlloyContact Plating: Gold Plated Contacts
