Feature:
1.LCD display shows error code, reason & solution on screen.
2.No need error code book. Much more inconvenience than LED hexadecimal character display.
3.Compatible with all laptop,Mini PCI interface for easy access to your laptop PC.
4.Ideal for IT enthusiasts and engineers to test and repair computer.
5.Inserts into Mini PCI slot and sets correct BIOS by BIOS button before booting.
6.Displays error code, reason and solution quickly after booting, if there is a problem.
7.Supports AMI, Award & Phoenix.
8.Supports English language.
9.BIOS button for setting correct BIOS and PAGE button for viewing records.
10.CLK, SYS, +5V, +3.3V indicators available.
11. SYS, CLK, +3.3V,+5V, -12, +12 indicators available.
12. Indicator LED will show the state of the power on board. as the follow table show:
12 V PCI slots 12V Power supply indicator LED
-12V PCI slots -12V Power supply indicator LED
5V PCI slots 5V Power supply indicator LED
3.3V PCI slots 3.3V Power supply indicator LED
SYS System Operation indicator light,flash in the normal condition.
CLK When hour clock output,weak light in the normal condition.
PAGE Key jump to previous code for short time press; jump to the previous five code for a long time press BOIS key Switchover present "BOIS" for short time press;Save the current selection for a long time press.
13. LCD size: 3.8x2.5cm(approx)
14. Dimension: 5.9cm x 4.9cm(approx)
15. Note: If the main board doesn't work .If the screen without any display, please check the 3.3V output of the computer power. Suggest you change another PCI slot when fail to get code.
Please note that it does not support hot swapping.
Packing include:

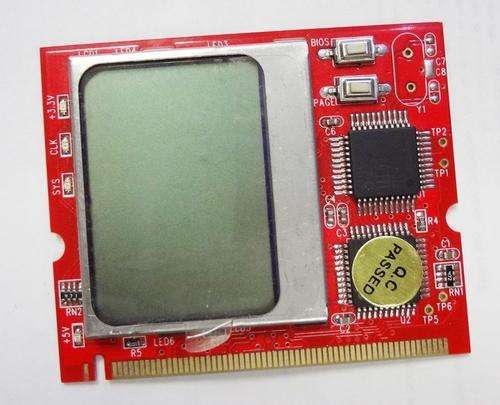

One Mini PCI PC analyzer
