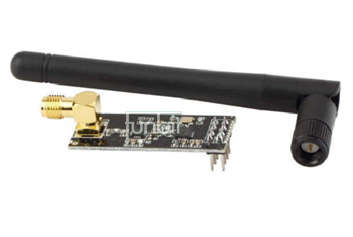

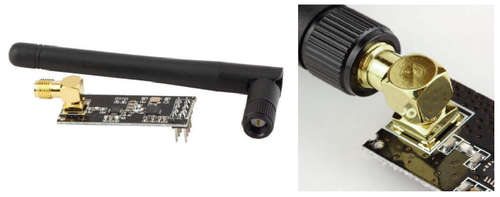

NRF24L01 Wireless Transceiver Module with PA and LNA SMA Antenna
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product details
NRF24L01 WIRELESS TRANSCEIVER MODULE WITH PA AND LNA SMA ANTENNA
Product information
This 2.4GHz wireless transceiver module incorporates a power amplifier and SMA antenna connector and is suitable for setting up a low cost wireless communication system with a transmission distance of up to 1000 meters (with no barrier). It achieves a good balance between wireless transition performance and cost and facilitates easy connection with ARM, PIC, AVR or 8051 microcontrollers.
Specifications
Frequency: 2.4GHz~2.5GHz
Operating voltage: 3 ~ 3.6V
Max Current: 115mA
Maximum output power: 20dBm
PA gain: 20dB
LNA gain: 10dB
Antenna gain: 2dBI
Speed ratio (2MB): 520m
Transmission distance: 1100m
Multi-frequency: 125 frequencies
Support up to six channels of data reception

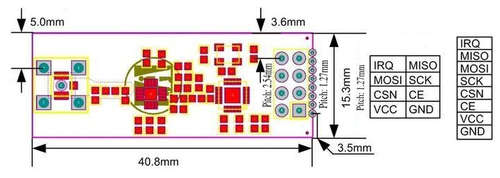

Size: 40.8x15.3mm
Package includes
1 x NRF24L01+PA+LNA
