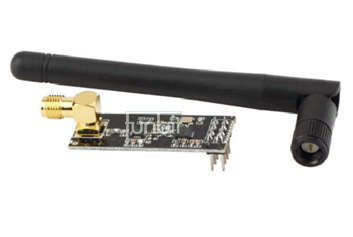

NRF24L01 Wireless Transceiver Module with PA and LNA SMA Antenna

2 were available / new
Indicative market price: R305.00
R130.00
57% off
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Customer ratings:
Product code
NRF24L01-AMPLIFIED
Bob Shop ID
201218045

NRF24L01 WIRELESS TRANSCEIVER MODULE WITH PA AND LNA SMA ANTENNA






Product information
This 2.4GHz wireless transceiver module incorporates a power amplifier and SMA antenna connector and is suitable for setting up a low cost wireless communication system with a transmission distance of up to 1000 meters (with no barrier). It achieves a good balance between wireless transition performance and cost and facilitates easy connection with ARM, PIC, AVR or 8051 microcontrollers.

Specifications
Frequency: 2.4GHz~2.5GHz
Operating voltage: 3 ~ 3.6V
Max Current: 115mA
Maximum output power: 20dBm
PA gain: 20dB
LNA gain: 10dB
Antenna gain: 2dBI
Speed ratio (2MB): 520m
Transmission distance: 1100m
Multi-frequency: 125 frequencies
Support up to six channels of data reception

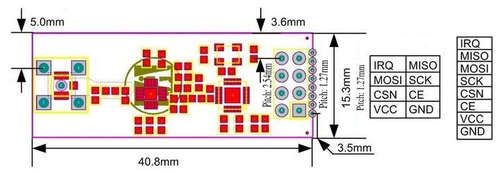

Size: 40.8x15.3mm

Package includes
1 x NRF24L01+PA+LNA
