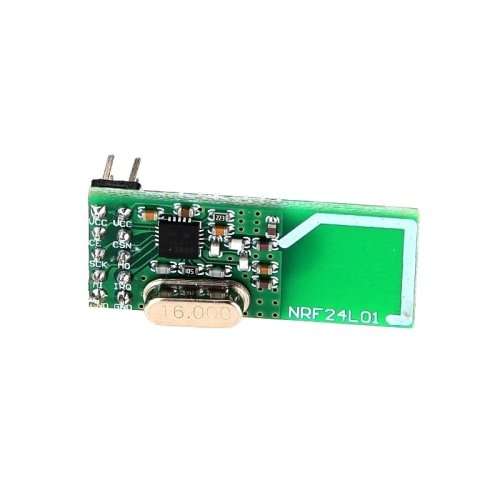

NRF24L01 Wireless Transceiver Module

The NRF24L01 is a highly integrated, ultra low power (ULP) 2Mbps RF transceiver IC for the 2.4GHz ISM (Industrial, Scientific and Medical) band. With peak RX/TX currents lower than 14mA, a sub A power down mode, advanced power management, and a 1.9 to 3.6V supply range, the nRF24L01 provides a true ULP solution enabling months to years of battery lifetime when running on coin cells or AA/AAA batteries .

Technical Specifications:

• Module: Nordic nRF24L01+
• Operating Voltage: 3V 3.6V
• Max Current: 115mA
• Standby Current: 32uA
• Power Down Mode Current: 1uA
• Uses an SMA antenna for improved range
• 125 Channels, Multi-point communication and frequency hopping to meet communication needs
• Built-in hardware CRC error detection, Multi-point communication address control
• Maximum operating speeds up to 2Mbps, GFSK modulation efficiency, Anti-interference ability, Particularly suitable for industrial control applications
• Standard DIP Pitch Interface for embedded applications
