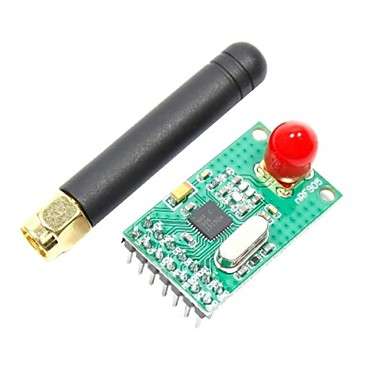

NRF905 433/868/915MHz 2.7~3.3V Wireless Module w/ Antenna for Electronics DIY (Arduino Compatible)

NRF905 433/868/915MHz 2.7~3.3V Wireless Module w/ Antenna for Electronics DIY, Development & Projects (Arduino Compatible)..!

Product Information

Key Features

Fully compatible with PTR8000+ module
One tri-band transceiver operating frequency for the international ISM band 433/868/915MHz GMSK modulation
Strong anti-interference ability
Especially for industrial control applications using DSS + PLL frequency synthesizer technology
Excellent frequency stability
High sensitivity up to -100dBm
Low working voltage (2.7V)
Low power consumption, standby only 1uA, to meet the low-power device requirements of maximum transmit power of +10dBm
With multiple channels (up to 170 or more) to meet the needs of multi-channel working
Minimal external components (only 10), basically no need for debugging
Because of the low transmission power and high receiver sensitivity design, no need to apply for a permit/license for using
The operating range in the open field is up to 1000 meters
Drivers can be found here

Specifications

Model: NRF905
Quantity: 1
Color: Green
Material: PCB + plastic + iron
Features: Wireless module
Working frequency: 433/868/915MHz
Number of channels: 170
Function: Transmit / Receive
Frequency stabilization mode: PLL
Modulation: FSK / GMSK
Maximum output power: +10dBm
Sensitivity: -100dBm
Maximum operating rate: 76.8Kbit/s
Working voltage: 2.7~3 .3V
Application: Various of electronic products or DIY projects

Physical

Dimensions (cm): 3.2 x 1.9 x 2.3 cm
Weight (kg): 0.01kg

Packing List

1x NRF905 wireless module
1x Antenna (SMA male)
