NT-9800 Handheld Wireless Real-time Laser Barcode Reader Terminal Warehouse Mobile Scanner for Data CollectorFeatures : 1. Large storage, maximum of
100000 barcodes
2. Function of automatic wireless transmission, offline scan.
3. Fast and accurate 433Mhz wireless two-way, transmission certification
4. Screen display of data, easy and fast operation
5. Data will be saved automatically and will not get lost after power off
6. Easily handling barcodes in bulk

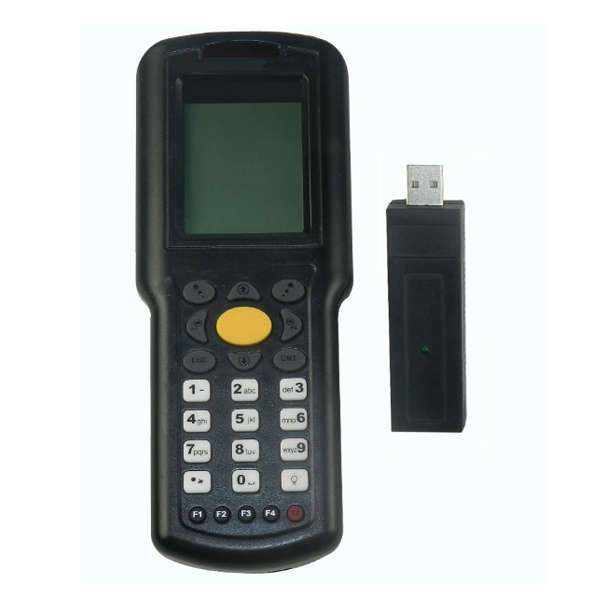

Main Functions : 1) Wireless Real-time Barcode Scanner Data TerminalIn this mode, the terminal works as a portable laser scanner and collect the barcode data while at the same time transmit the data wirelessly to the wireless base station which is connected with the computer via USB data cable.
Usually, after being scanned, the barcode data is automatically and immediately transmitted to the wireless base station and computer. The number of “Wait to send” displays as “0”, it means that all collected data have been transmitted. The base station uploads the received data to the computer instantly.

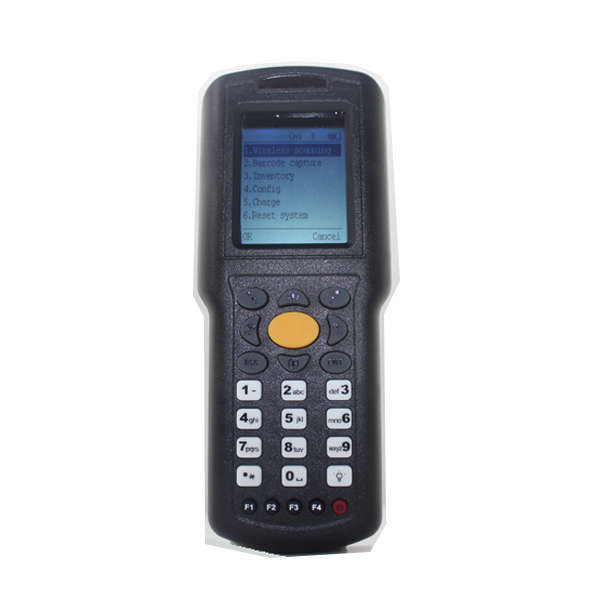

The top of the terminal’s LCD screen displays useful information like the quantity of already scanned barcodes, channel number, signal strength and remaining battery.
2) Offline Barcode Data ScannerThis mode works as offline barcode collector. If there is no need of real time online data transmission, the user can choose to operate the terminal in this mode. The collected data will be saved in the terminal first and can be transmitted to the base station and computer in one lot after collection of all barcode data.
In
offline mode, the terminal can save up to
30000pcs of barcode data.
3) Inventory-taking Data CollectorThe inventory mode collects barcodes and their quantity. It supports both automatic accumulated quantity and hand input quantity. The user can view and check the collected barcodes and their quantity conveniently on the LCD screen.
The
inventory mode can save up to
30000pcs barcode data. It works offline while collecting data. The saved inventory data can be transmitted to the base station and computer in one lot after collection of all barcode data collector.
Specification : | Product Name | NT-9800 Handfree Mobile Terminal Data Terminal |
| CPU | 32-bit high-speed ARM |
| Flash memory | 2MB |
| Power supply | 1) 2pcs AA dry batteries or rechargeable NiMH batteries (best 1600-2400mah NiMH Battery)
2) Supporting USB charging for rechargeable NiMH batteries.
3) With remaining power indicator on LCD display. |
| Screen display | 128x128 FSTN LCD screen, supporting 16-row and 20-line character display |
| Backlight | Blue highlighted LED |
| Terminal size & weight | 165 x 65 x 45 mm, about 200 grams |
| Keyboard | Standard high quality silicon 26-key keyboard |
| Standby time | More than six months (starting from 100% remaining power).
Power consumption is lower than most similar devices on the market. |
| Data protection | Data will be saved automatically and will not get lost when the terminal is powered off.
The user can switch on/off the terminal freely without damaging the data. After switching on,
the screen resumes to the display before last switching off. |
| Power saving mode | Support automatic powering off when not in use. |
| Wireless transmission | 1) Frequency : 433MHz. Two-way transmission.
2) Maximum wireless transmitting power : +10dB.
3) Wireless receiving sensitivity : -102dB.
4) CRC verification to ensure stable wireless transmission.
5) With wireless signal strength indicator on the LCD display.
6) USB connection with computer. |
| Scanning depth of field | 1 - 80cm |
| Scanning frequency | 200 times / second |
| Light source |
|
