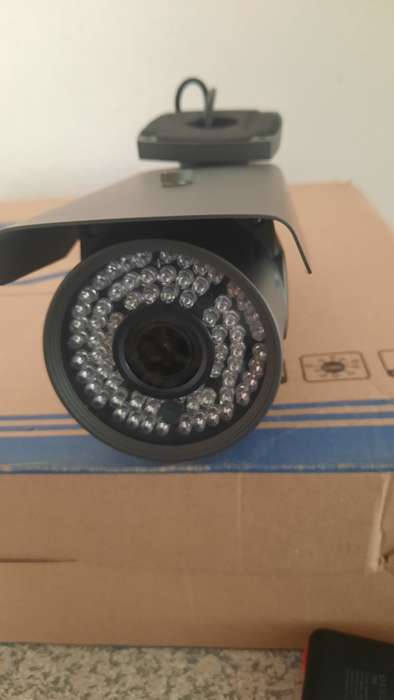

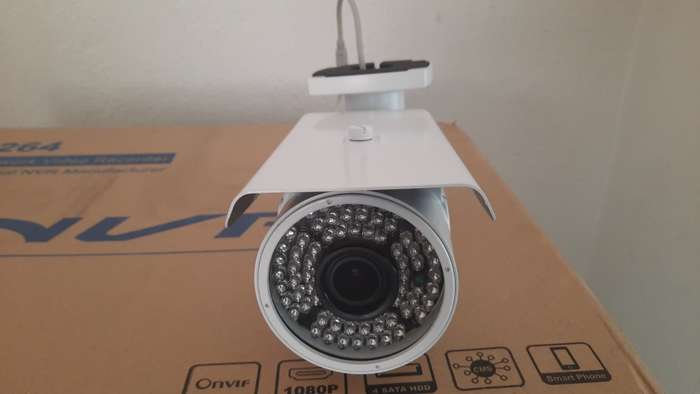

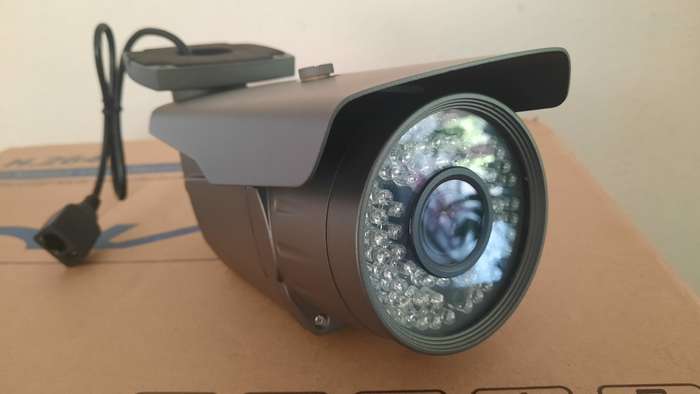

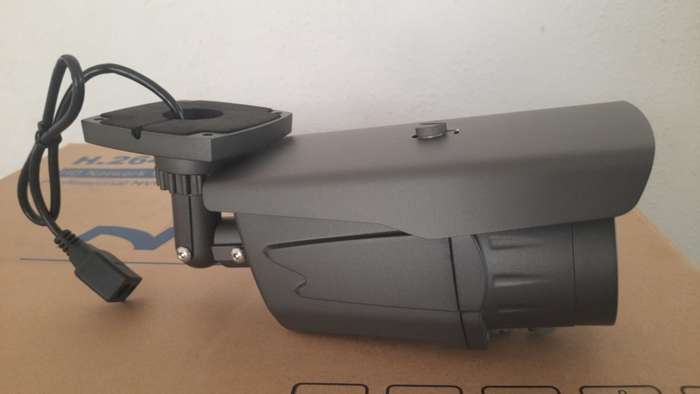

Features > 1/2.5 5.0 Megapixel Progressive Scan Aptina CMOS sensor > Ti DaVinci Series DSP > H.264&MJPEG video compression and JPEG image capture > Max 10fps @ 5.0MP (2592×1920) > Dual encoding streams supported > Lens: 2.8-12mm Varifocal Lens > 72pcs of ￠5mm IR LEDs, Max. IR Distance: 60m > True Day/Night ICR > Support Alarm I/O > Micro SD Card > IP66 all-environments protection > Support DC12V power supply, PoE > Built-in Web server, NVR, CMS
Technical Specifications Model NT-IP8500MV General processor DaVinci High Performance DSP of TI Operating System Embedded LINUX Resource Simultaneous remote monitoring, local recording and remote control User Interface WEB, CMS, NVR Camera Image Sensor 1/2.5" 5.0 Megapixel Progressive Scan Aptina CMOS Sensor Effective Pixels 2592 (H)×1920(V) Electronic Shutter 1/5s to 1/50,000s Mini. Illumination Color:0.6Lux/F1.2 ；B/W:0.08Lux/F1.2；0 Lux/F1.2(IR on)
Signal Noise Ratio >50dB Day/Night Mode Auto, dual IR-Cut filter Gain Control Auto/Manual White Balance Auto/Manual WDR Dynamic Range DWDR Lens 2.8mm-12mm 5mm IR LEDs Max IR Distance 60m, 72pcs of ￠
Video Video Compression: H.264/MJPEG Optional H.264 Encode Type: H.264 Baseline/H.264 Main Profile/H.264 High Profile Optional Video Bit Rate Main Stream：200Kbps~8Mbps Sub Stream： 100Kbps~6Mbps Image Resolution: 5.0Mp(2592 × 1920)/3.0Mp(2048 × 1536 )/1080P(1920× 1080) / 720P(1280× 720) / D1(704× 576/704× 480) 3.0Mp /20 fps ； 1080P/720P(1~25fps/30fps) Encoding Speed: Main Stream: 5.0Mp /10fps ；Extra Stream: D1/CIF:(1~25fps/30fps) Video Format: PAL/NTSC
Audio Audio Compression: G.711a/G.711u Optional Audio Bit Rate: G.711a(8kbps)/G.711u(8kbps)/ Audio Input: 1-channel 3.5mm audio interface MIC IN/Line IN Audio Output: 1-channel 3.5mm audio interface (line level,600)
Network Ethernet: RJ-45 (10/100Base-T) Network Protocol: Ipv4/Ipv6,RTSP,TCP/UDP,HTTP,DHCP,DNS,FTP,DNS,PPPoE,SMTP
Common Features: One button Reset, Prevent Flicker, Dual-stream, Heartbeat, Password
Protect, Video cover, Motion Alarm
ONVIF: ONVIF Ver.2.3 Max User Access: 10 users
Smart phone: Iphone , Ipad ,Android
Remote Operation: Monitor, Playback, System setting, File download, Log information, Maintenance & Upgrade
Auxiliary Interface Reset Input: One Reset Button(Hold on 3 seconds at least) Memory Slot: Micro SD Card, Max 32GB Alarm Input: 1-channel input, Normally Open/Normally Close modes adjustable Alarm Output: 1-channel output,, 120VAC 1A/24VDC 1A Video Output: N/A 1Vp-p Composite Output(75/BNC)
Environmental Power Supply: DC12V Power Consumption: <10W Working Environment: -40ºC ~ +60ºC, Humidity less than95%(Non-condensing) Dimensions(mm): 275mm x 90mm x120.5mm Weight(kg): 0.107Kg PoE: IEEE802.3af IP Grade: IP66
