Feature:
1. Working voltage: 9V ~ 24V
2. Input resistance: NTC 10K thermal resistance (B value 3435K)
3. Output voltage: 0.00V 5.00V/0.00V 10.00V
4. Temperature measurement range: -40+150 (degrees).
5. Output mode: S2 pad on the circuit board: open circuit (output 0.00V ~ 5.00V); short circuit (output 0.00V ~ 10.00V), the default is open circuit.
6. Application scope: remote data acquisition and control equipment;
7. Size: (length) 26mm * (width) 23mm * (height) 10mm

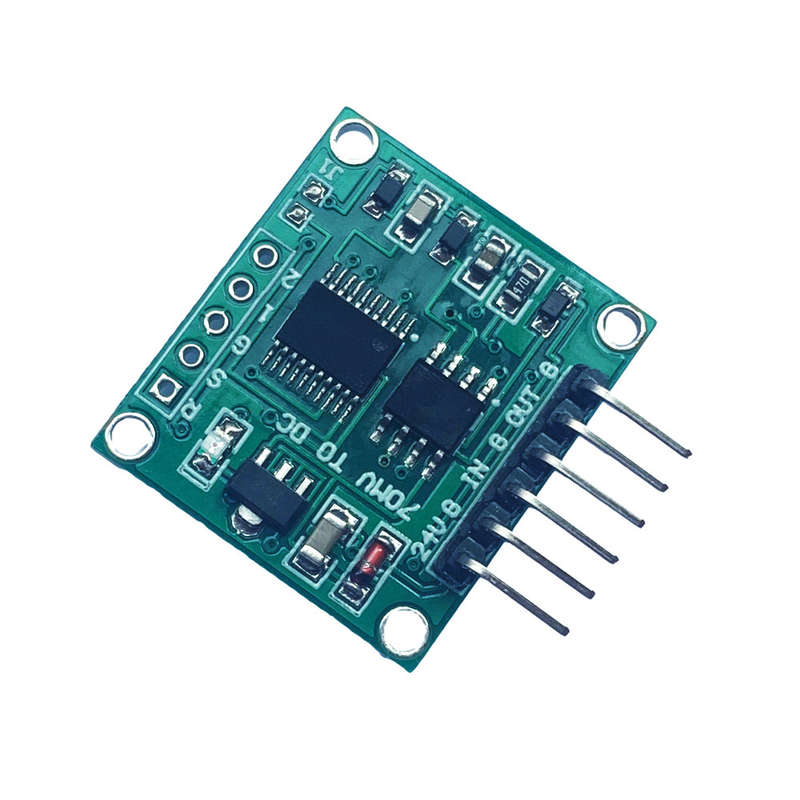

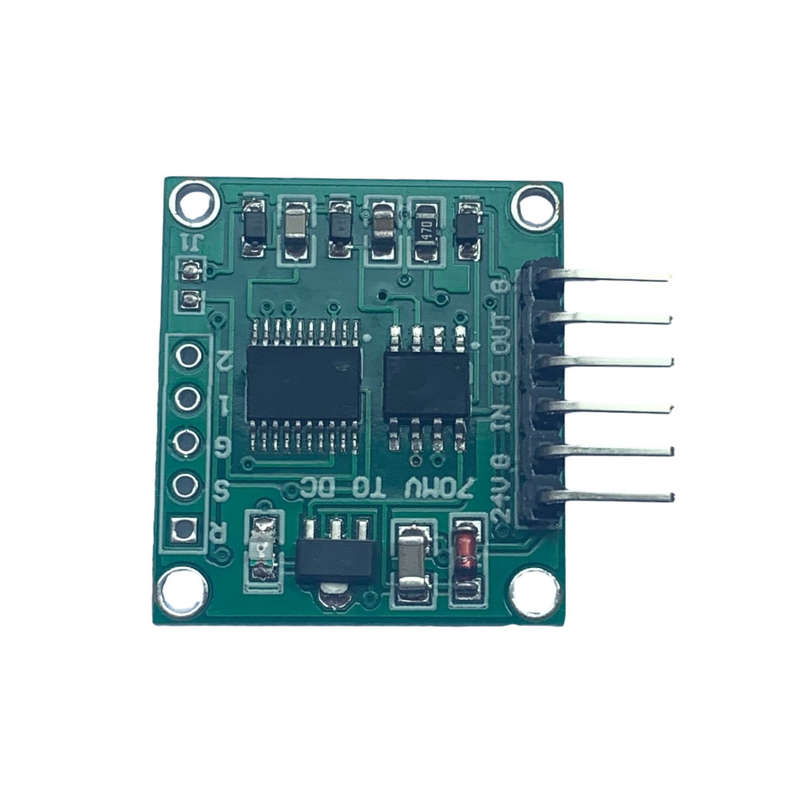

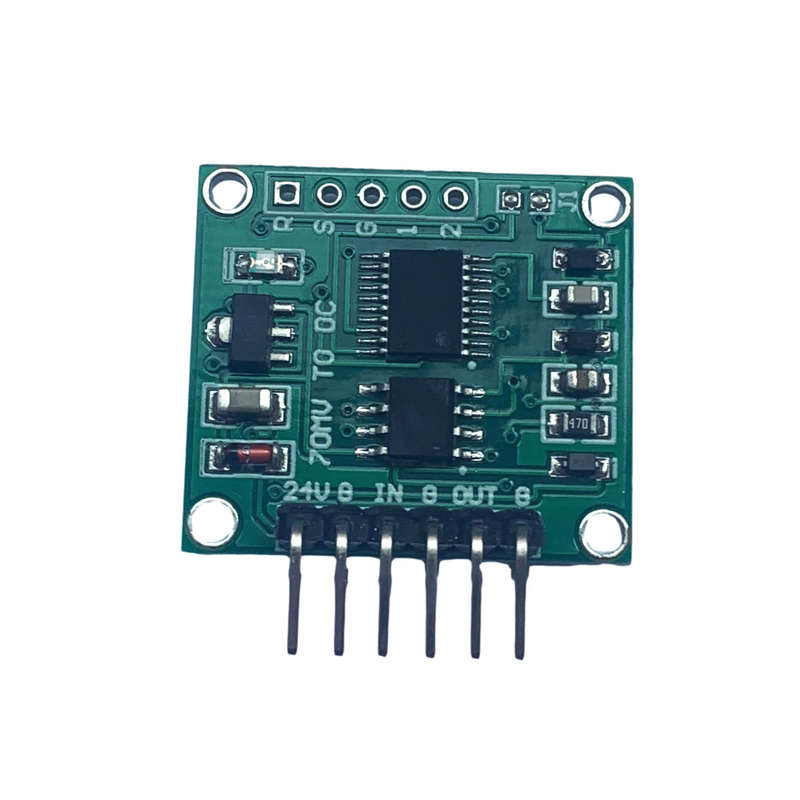

8. Module interface:
24V: Power supply positive port (9V ~ 24V).
G: Power ground interface.
IN: Thermal resistance positive interface.
G: The negative terminal of the thermal resistance.
OUT: Signal output interface (0.00V 5.00V/0.00V 10.00V).
G: Power ground interface.
Note: When outputting 0.00V ~ 10.00V, the power supply voltage must be 15V.
Output (0.00V 5.00V) resolution: 0.0263157V/a (Volt/a)
Output (0.00V 10.00V) Resolution: 0.0526315V/a (Volt/a)
Calculate the measured temperature formula: (output voltage (V)/resolution) -40a = measured temperature (a).
Package includes:
1 xTransmitter Module
