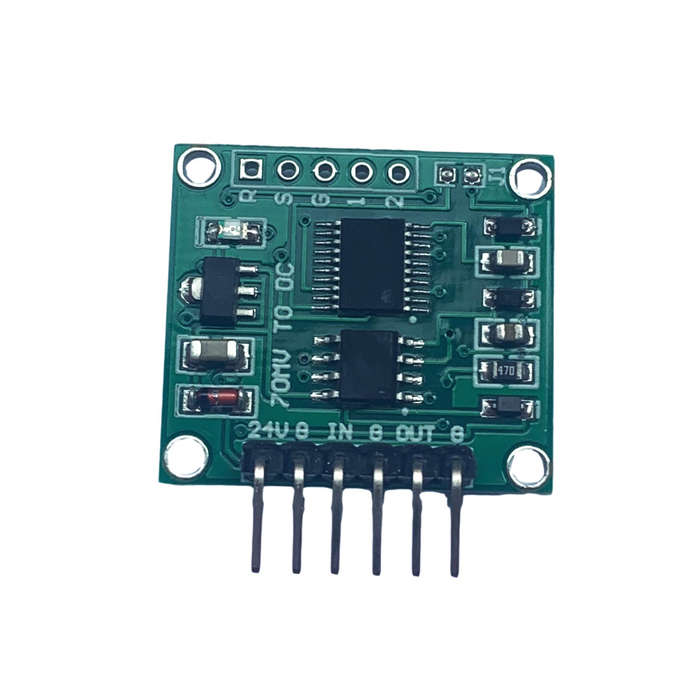

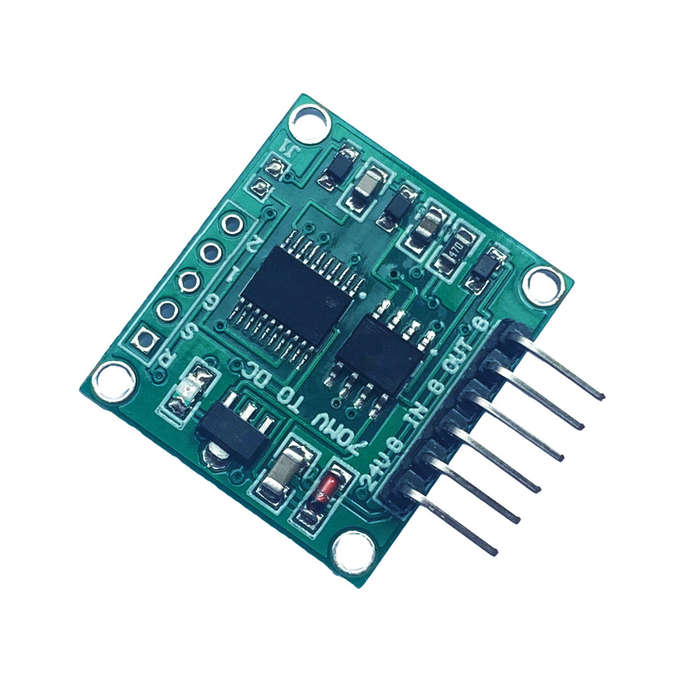

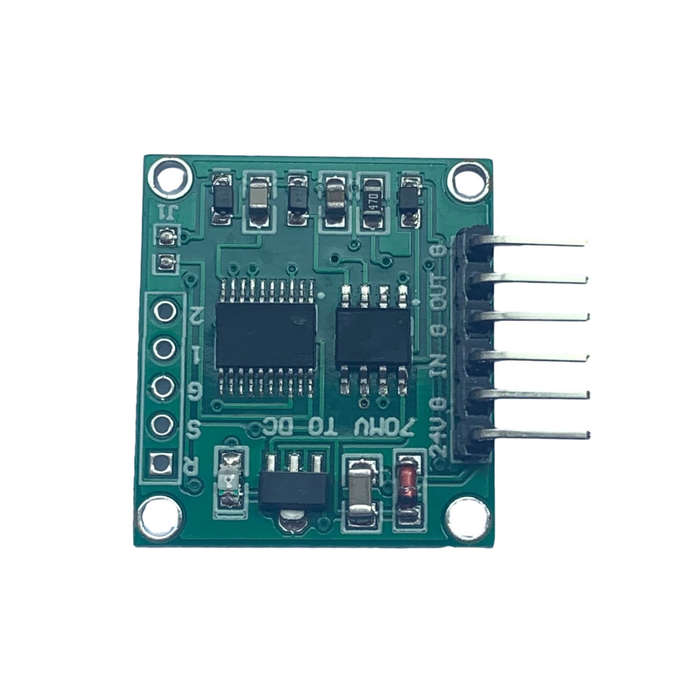

NTC Thermistor to Voltage 10K NTC to 0-5V 0-10V Linear Conversion Temperature Transmitter Module

Feature:

1. Working voltage: 9V ~ 24V

2. Input resistance: NTC 10K thermal resistance (B value 3435K)

3. Output voltage: 0.00V 5.00V/0.00V 10.00V

4. Temperature measurement range: -40+150 (degrees).

5. Output mode: S2 pad on the circuit board: open circuit (output 0.00V ~ 5.00V); short circuit (output 0.00V ~ 10.00V), the default is open circuit.

6. Application scope: remote data acquisition and control equipment;

7. Size: (length) 26mm * (width) 23mm * (height) 10mm

8. Module interface:

24V: Power supply positive port (9V ~ 24V).

G: Power ground interface.

IN: Thermal resistance positive interface.

G: The negative terminal of the thermal resistance.

OUT: Signal output interface (0.00V 5.00V/0.00V 10.00V).

G: Power ground interface.

Note: When outputting 0.00V ~ 10.00V, the power supply voltage must be 15V.

Output (0.00V 5.00V) resolution: 0.0263157V/a (Volt/a)

Output (0.00V 10.00V) Resolution: 0.0526315V/a (Volt/a)

Calculate the measured temperature formula: (output voltage (V)/resolution) -40a = measured temperature (a).

Package includes:

1 xTransmitter Module
