PLEASE NOTE: Requires Switches and Keycaps to complete.

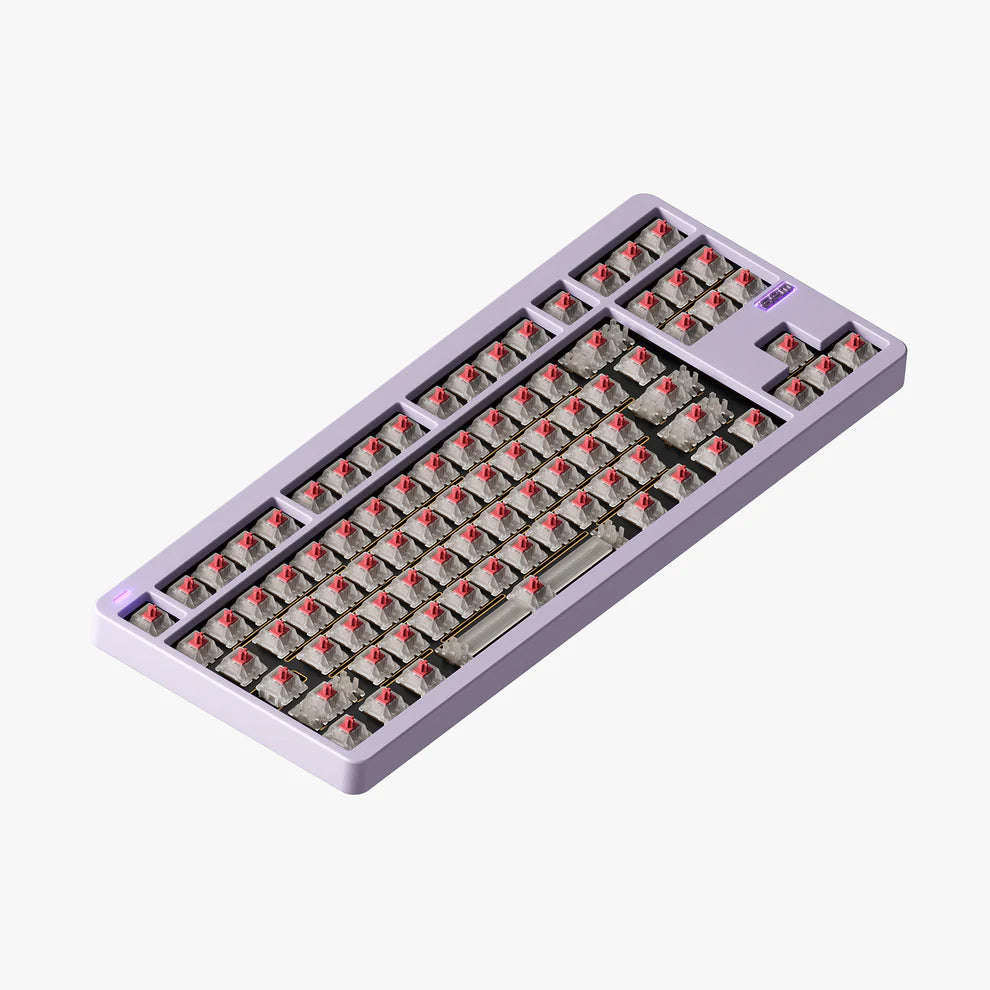

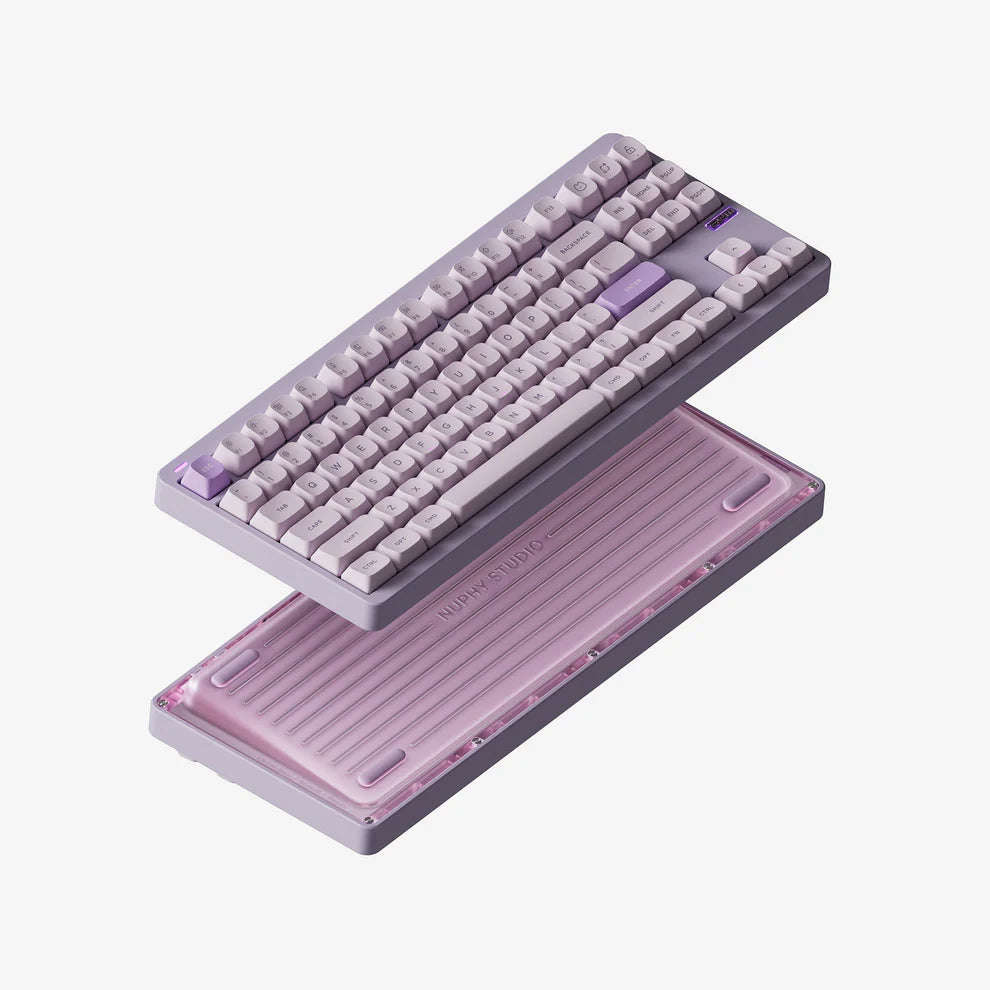

The NuPhy Gem80 is a premium, barebones mechanical keyboard designed for enthusiasts who crave a personalized typing experience.

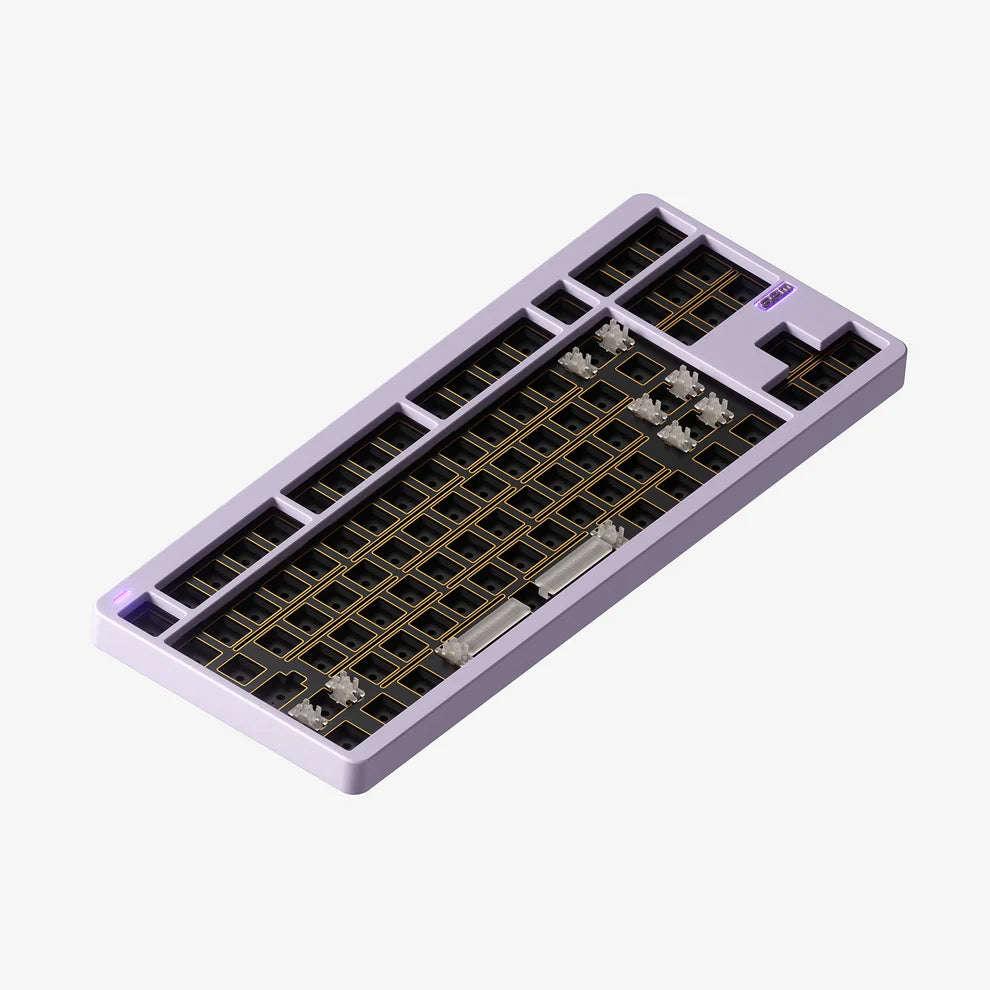

Highly Customizable: It arrives pre-built with the essentials - PCB, stabilizers, and sound dampening - but lets you choose the perfect keycaps and switches to match your style and typing preferences.
Wireless Freedom: Choose between wired, 2.4GHz wireless, or Bluetooth connectivity for a clutter-free desk setup or on-the-go use.
Gasket Mount Design: This innovative mounting style absorbs sound and creates a softer typing feel, reducing fatigue during long typing sessions.
Multiple Plate Options: Experiment with different plate materials (sold separately) like FR4 or aluminum to find the sound and feel you prefer.
QMK/VIA Compatibility: Program your ideal keymap and macros using the intuitive QMK or VIA software for maximum control and efficiency.
Compact 75% Layout: The space-saving 75% layout includes all the essential keys while maintaining a compact footprint for better desk organization.
Whether you're a seasoned keyboard enthusiast or looking to craft your first custom keyboard, the NuPhy Gem80 offers the perfect foundation for a truly personalized typing experience.
Specifications:
- Layout: ANSI 80%/TKL
- Number of Keys: 88
- Switch Type: Normal-profile
- Stabilizer Type: Plate Mounted
- Mount Type: Gasket & Top
- Hot-swappable Support: Yes (3/5 pin MX-style)
- N-key Rollover Support: Yes
- Backlight: South-facing RGB-LED
- Backlight Modes: 40+
- Compatible System: macOS/Windows/Linux/Android/iOS
- Operating Environment: -10 to 50
- MCU: ARM STM32F072
- RF: NRF52810 (tri-mode)
- Wired Polling Rate: 1000Hz
- 2.4GHz Polling Rate: 1000Hz (tri-mode)
- Bluetooth 5.0 Polling Rate: 125Hz (tri-mode)
- Top Case: Aluminum
- Bottom Case: PC
- Plate Material: Fr4
Size & Weight:
- Length: 141.3mm (5.56 inches)
- Width: 358.1mm (14.10 inches)
- Back Height: 36.7mm (1.44 inches)
- Front Height: 21.5 mm (0.85 inches)
- Weight: 1120 grams (2.47 pounds)
- Type Angle: 6
Power & Battery (Tri Mode):
- Battery Capacity: 4000mAh
- Working Time (all lights on): 24~45 hours (lab test result)
- Working Time (homing bars only): 34~70 hours (lab test result)
- Working Time (all lights off): Up to 330 hours (lab test result)
What's in the box:
- 1 x Gem80 Keyboard Kit
- 1 x USB-C Data Cable
- 1 x 2.4G Receiver (Tri-mode)
- 1 x Keycap/Switch Puller
- 3 x Extra Switches
- 5 x Silicone Sets
- 1 x Screwdriver
- 1 x Extra Food Pad Set
- 1 x Installation Guide
- 1 x Quick Guide
- 1 x Q&A
