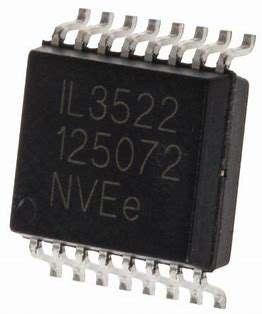

NVE Line Transceiver IL3522E, 16-Pin SOIC

NVE Line Transceiver IL3522E, 16-Pin SOIC

New 50 available
R87.40
Shipping
R65.00 Standard shipping applies to orders under R100.00, in most areas in South Africa. R35.00 Standard shipping applies to orders over R100.00. Some areas may attract a surcharge surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
EC-170
Bob Shop ID
614718303

NVE Line Transceiver IL3522E, 16-Pin SOIC

This NVE line transceiver is a galvanically isolated high speed differential bus with the ability to do bidirectional data communication. What makes this NVE line transceiver impressive is that is has good data integrity over long cable lengths at data transfer rates of up to 40Mbps. It also has current limiting to protect your device from short circuits on external circuits, and it has thermal shutdown capabilities to protect your device from over heating.

Technical specifications:

Supply voltage 3V - 5V
Delivered voltage 2.3V
Data rate 40Mbps
Propagation delay 20ns
ESD protection 15kV
Max digital output current 5mA
High level digital input voltage 2.4V / 3V
High level digital output voltage 3.3V / 5V

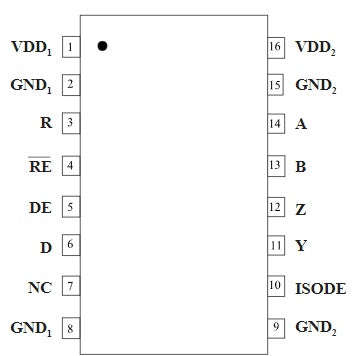

Pin layout:

NVE pin layout

Extra resources:

To go to the data sheet, klick here
