Nvidia Quadro 2000 Professional Workstation Graphics Solution

 PROFESSIONAL WORKSTATION GRAPHICS CARD

IDEAL CAD MID-PERFORMANCE SOLUTION

The Quadro 2000 was a high-end professional graphics card by NVIDIA. Built on the 40 nm process, and based on the GF106 graphics processor, in its GF106-875-KA-A1 variant, the card supports DirectX 12.0. The GF106 graphics processor is an average sized chip with a die area of 238 mm² and 1,170 million transistors.

It features 192 shading units, 32 texture mapping units and 16 ROPs. NVIDIA has placed 1,024 MB GDDR5 memory on the card, which are connected using a 128-bit memory interface. The GPU is operating at a frequency of 625 MHz, memory is running at 650 MHz.

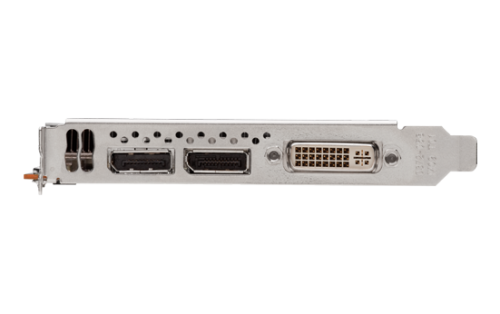

Being a single-slot card, the NVIDIA Quadro 2000 does not require any additional power connector, its power draw is rated at 62 W maximum. Display outputs include: 1x DVI, 2x DisplayPort. Quadro 2000 is connected to the rest of the system using a PCI-Express 2.0 x16 interface. The card measures 178 mm in length, and features a single-slot cooling solution.

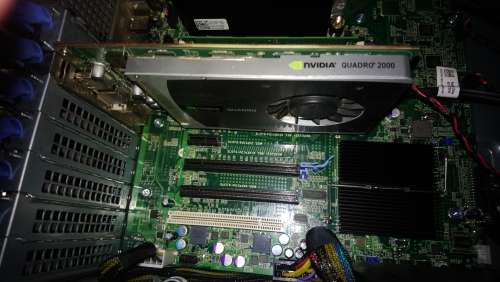

The card was previously operating perfectly in a high end DELL workstation and is in great condition.
