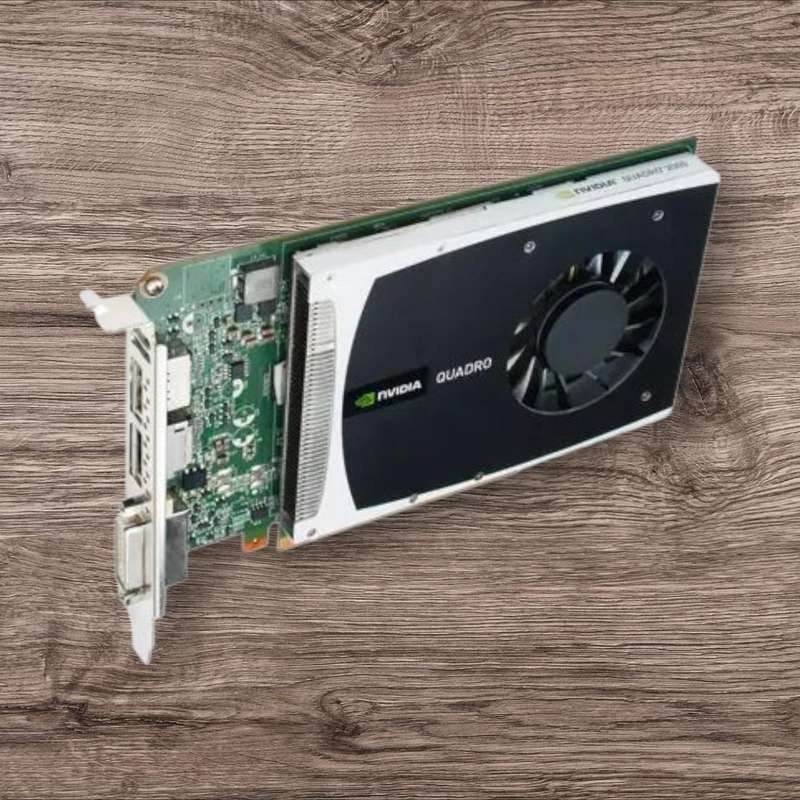

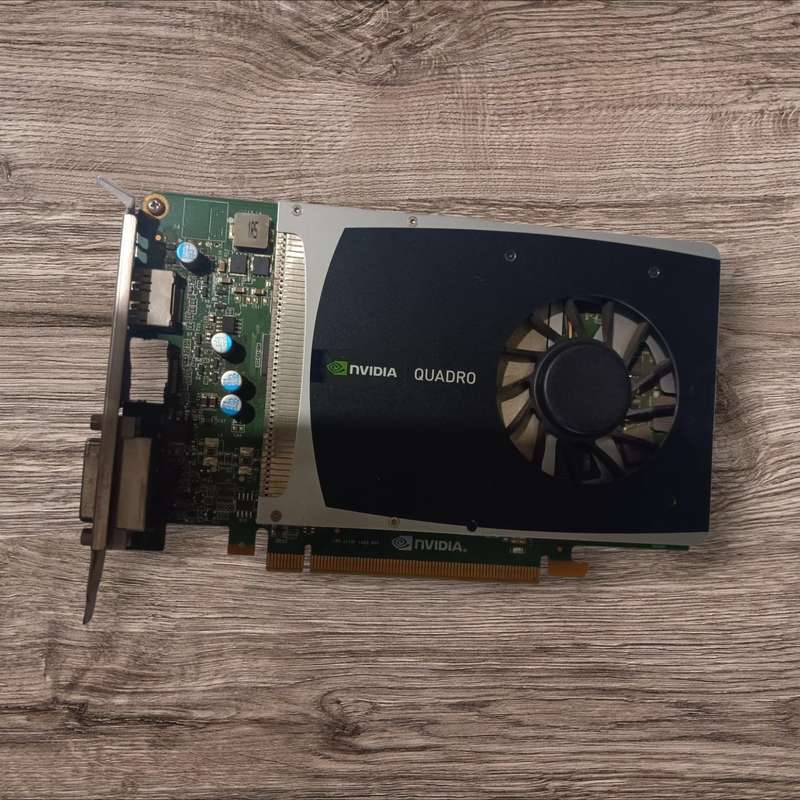

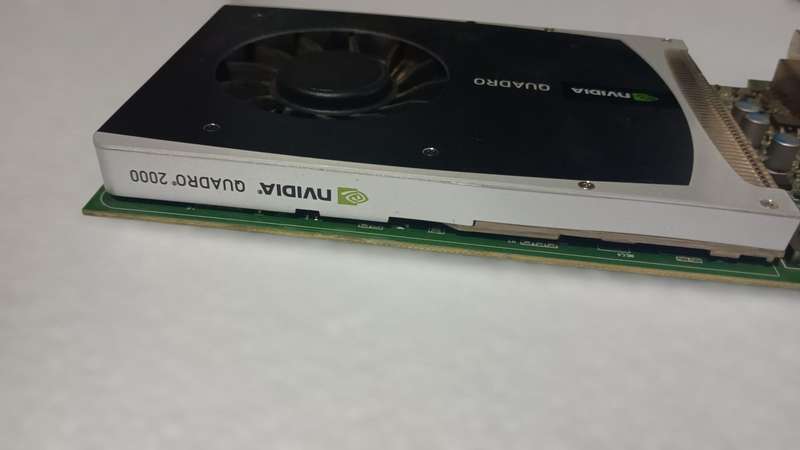

NVIDIA Quadro 2000 is a professional graphics card designed for mid-range workstation applications.
Here are its key specifications:
🖥 GPU Architecture & Performance
GPU Model: NVIDIA GF106 (Fermi architecture)
CUDA Cores: 192
Core Clock Speed: 625 MHz
Transistor Count: 1.17 billion
Die Size: 238 mm²
Floating-Point Performance: Approximately 0.48 TFLOPS (single-precision)
Memory
Memory Size: 1 GB GDDR5
Memory Interface: 128-bit
Memory Clock Speed: 650 MHz (2.6 Gbps effective)
Memory Bandwidth: 41.6 GB/s
Connectivity & Power
Display Outputs: 1× Dual-Link DVI-I, 2× DisplayPort
Bus Interface: PCI Express 2.0 x16
Power Consumption (TDP): 62 W
Power Connector: None required (draws power directly from the PCIe slot)
Form Factor: Single-slot design, 178 mm length
