NVIDIA Quadro FX 3800 is a professional workstation graphics card released on March 30, 2009, designed for applications like CAD, 3D modeling, and video editing. It is based on the GT200B GPU architecture and offers a solid balance of performance and efficiency for its time.
🔧 Technical Specifications
GPU Architecture: GT200B (Tesla 2.0)
CUDA Cores: 192
Core Clock: 600 MHz
Shader Clock: 1204 MHz
Memory: 1 GB GDDR3
Memory Interface: 256-bit
Memory Clock: 800 MHz (1600 MHz effective)
Memory Bandwidth: 51.2 GB/s
Transistor Count: 1.4 billion
Process Node: 55 nm
TDP (Thermal Design Power): 108 W

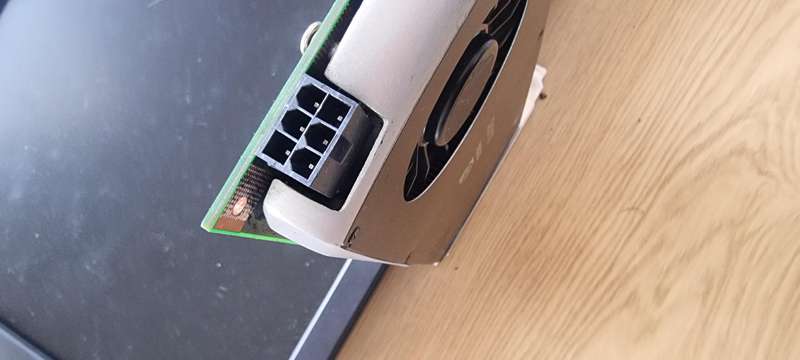

Power Connector: 1× 6-pin PCIe
Bus Interface: PCI Express 2.0 x16
Form Factor: Single-slot, 198 mm (length) × 111 mm (width)
🎮 Graphics & Compute Capabilities
DirectX Support: 10.0
OpenGL Support: 3.3
Shader Model: 4.0
CUDA Compute Capability: 1.3
OpenCL Support: 1.1
Pixel Fill Rate: 9.6 GPixel/s
Texture Fill Rate: 38.4 GTexel/s
Single-Precision Performance: Approximately 462 GFLOPS
🖥 Display & Connectivity
Outputs: 1× Dual-Link DVI-I, 2× DisplayPort
Maximum Digital Resolution: 3840 × 2400
Maximum VGA Resolution: 2048 × 1536
Max Monitors Supported: 2
Stereo 3D Support: Optional via 3-pin bracket
🧰 Additional Features
SLI Multi-OS Support: Allows running multiple operating systems with GPU acceleration from a single system.
PureVideo HD: Hardware-accelerated video decoding for high-definition contents
Rotated Grid Full-Scene Antialiasing (RG FSAA): Enhances image quality.
Graphics card its in working condition
Ready for Shipping.
