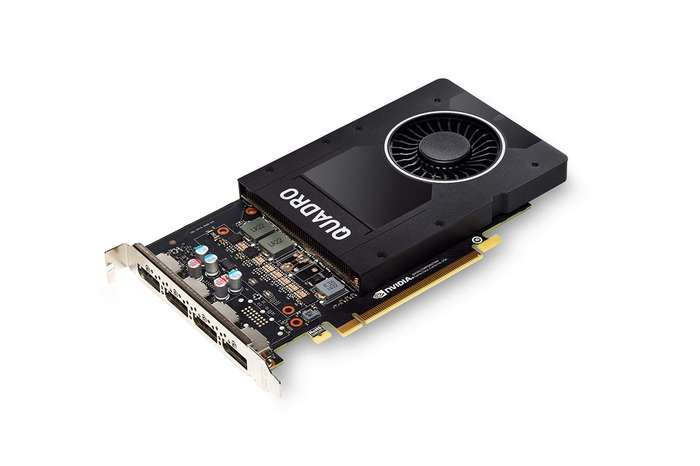

NVIDIA QUADRO P2000 - 5 GB GDDR5 GPU - 4x DP 1.4 - GRAPHICS CARD

SPECIFICATIONS

GPU Memory  5 GB GDDR5

Memory Interface  160-bit

Memory Bandwidth  Up to 140 GB/s

NVIDIA CUDA® Cores  1024

System Interface  PCI Express 3.0 x16

Max Power Consumption 75 W

Thermal Solution  Active

Form Factor  4.4 H x 7.9 L, Single Slot

Display Connectors 4x DP 1.4

Max Simultaneous  Displays  4 direct, 4 DP 1.4  Multi-Stream

Display Resolution  4x 4096x2160 @ 120Hz  4x 5120x2880 @ 60Hz

Graphics APIs Shader Model 5.1,  OpenGL 4.56^4,  DirectX 12.0 ^5,  Vulkan 1.0^4

Compute APIs  CUDA, DirectCompute, OpenCL

FEATURES

• Four DisplayPort 1.4 Connectors1
• DisplayPort with Audio
• NVIDIA nView Desktop Management Software
• HDCP 2.2 Support
• NVIDIA Mosaic2
• Dedicated hardware video encode and decode engines3

INTENDED USES

The NVIDIA Quadro P2000 graphics card is tailored to cater to the needs of professionals across diverse industries, offering enhanced graphics capabilities that are vital for specific applications. Here are some intended uses:

• CAD and Design: Architects, engineers, and designers can leverage the Quadro P2000's rendering power to create intricate designs, visualize complex structures, and bring their concepts to life.

• Media and Entertainment: Video editors, animators, and 3D artists benefit from the Quadro P2000's exceptional performance, allowing for smoother real-time playback and quicker rendering times.

• Scientific Visualization: Researchers and scientists can accelerate their data analysis and visualization tasks, whether it's simulating complex models or processing intricate datasets.

• Architecture and Engineering: Simulate and analyse architectural designs, perform finite element analysis, and optimize structures with the Quadro P2000's robust processing capabilities.

• Medical Imaging: Medical professionals can rely on the Quadro P2000 to render high-resolution medical images, enabling accurate diagnoses and treatment planning.

 Full specifications available here:

https://www.nvidia.com/content/dam/en-zz/Solutions/design-visualization/productspage/quadro/quadro-desktop/quadro-pascal-p2000-data-sheet-us-nvidia-704443-r2-web.pdf
