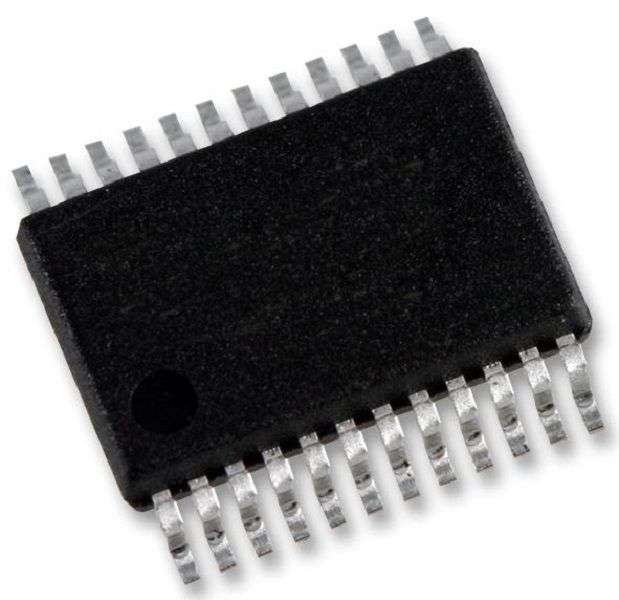

Nxp (1627054) I/O Expander, 16bit, 400 kHz, I2C, 2.5 V, 5.5 V, SSOP

Product Overview:The PCF8575TS/1,112 is a remote 8-bit I/O Expander for I²C-bus with interrupt.It provides general-purpose remote I/O expansion via the Two-Wire bi-directionalI²C-bus. The devices consist of eight quasi-bi-directional ports, 100KHz I²C-businterface, three hardware address inputs and interrupt output operating between2.5 and 6V. The quasi-bi-directional port can be independently assigned as aninput to monitor interrupt status or keypads or as an output to activateindicator devices such as LEDs.I²C-bus to parallel port expander8bit remote I/O pins that default to inputs at power-upLatched outputs directly drive LEDsActive low open-drain interrupt outputLow standby currentESD protection exceeds 2000V HBM per JESD22-A114 and 1000V CDM per JESD22-C101Latch-up testing is done to JEDEC standard JESD78 which exceeds 100mAProduct Information:Chip Configuration: 16bitBus Frequency: 400kHzIC Interface Type: I2CSupply Voltage Min: 2.5VSupply Voltage Max: 5.5VInterface Case Style: SSOPNo. of Pins: 24PinsNo. of I/O's: 16I/O'sProduct Range: -MSL: MSL 1 - Unlimited
