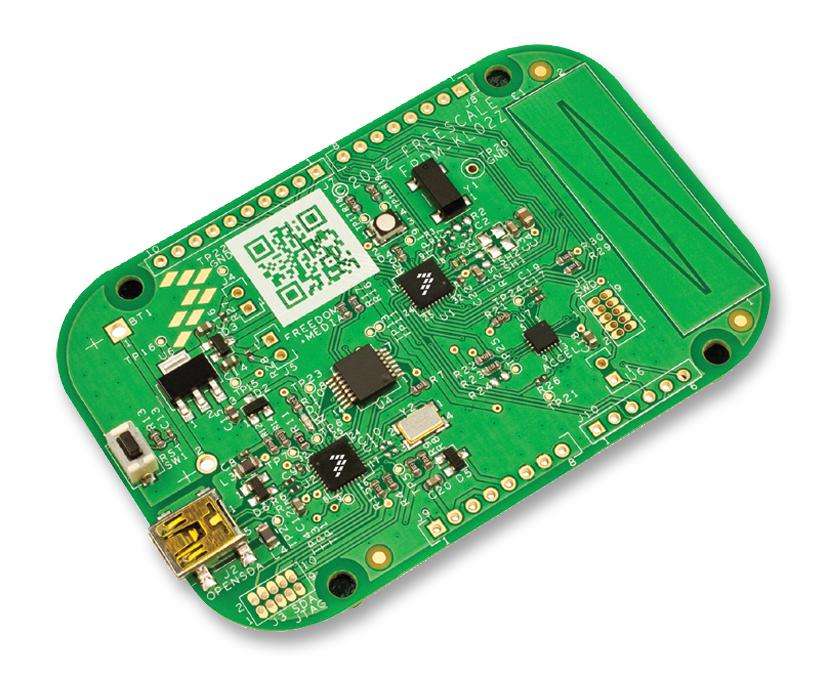

NXP (FRDM-KL02Z) Development Board, Capacitive Touch Slider

Product InformationSilicon Manufacturer: NXPNo. of Bits: 32bitSilicon Family Name: Kinetis - KL0Core Architecture: ARMCore Sub-Architecture: Cortex-M0+Silicon Core Number: KL02ZKit Contents: Dev Board KL02ZProduct Range: -Product OverviewThe FRDM-KL02Z is an ultra low cost development kit for Kinetis MKL02Z32VFM4microcontroller. The MKL02Z32VFM4 is a Kinetis KL02 series ARM Cortex-M0+ coremicrocontroller. Freedom development platform is an evaluation and developmenttool ideal for rapid prototyping of microcontroller based applications. Thehardware design is form factor compatible with popular third party hardwaredesigned to work with Arduino and Arduino compatible boards. The specificationsof the KL02Z32 and the flexible design of the FRDM-KL02Z enable a wide varietyof design prototypes including those dependent on battery power or harvestedenergy. The FRDM-KL02Z is the first hardware platform to feature the NXP openstandard embedded serial and debug adapter known as OpenSDA. This circuit offersthe user several options for serial communications, flash programming and runcontrol debugging.I/O headers for easy access to MCU I/O pins3 axis MMA8451Q accelerometer sensorCapacitive touch slider using GPIO method based on TSS libraryReset pushbuttonRGB LEDOn board serial and debug adapter (OpenSDA)Multiple power supply options32.768KHz crystal
