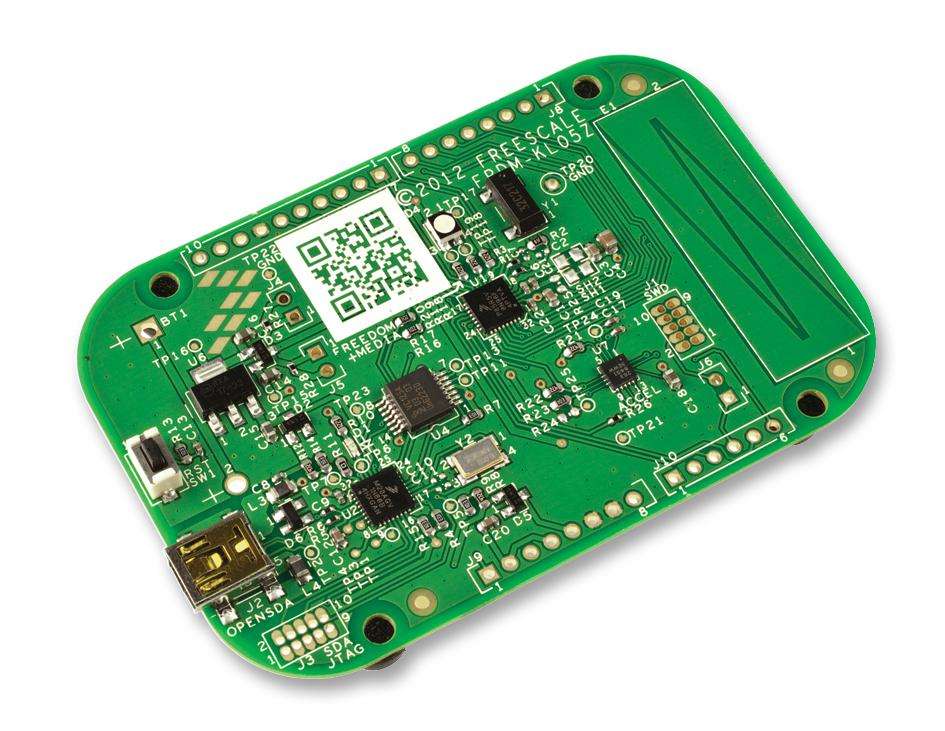

NXP (FRDM-KL05Z) Development Board, Kinetis KL05 and KL04 MCUs

Product InformationSilicon Manufacturer: NXPNo. of Bits: 32bitSilicon Family Name: Kinetis - KL0Core Architecture: ARMCore Sub-Architecture: Cortex-M0+Silicon Core Number: MKL0Kit Contents: Evaluation BoardProduct Range: -Product OverviewThe FRDM-KL05Z is an ultra low cost development kit for MKL05Z32VFM4microcontroller. The MKL05Z32VFM4, a KL0 family device boasting a max operatingfrequency of 48MHz, 32KB of flash and a multitude of analog and digitalperipherals. Freedom development platform is a set of software and hardwaretools for evaluation and development. It is ideal for rapid prototyping ofmicrocontroller based applications. The FRDM-KL05Z can be used to evaluate theKL04 and KL05 Kinetis L series devices. The freedom board hardware is formfactor compatible with the Arduino R3 pin layout, providing a broad range ofexpansion board options. The on board interfaces include an RGB LED, a 3 axisdigital accelerometer, and a capacitive touch slider. The FRDM-KL05Z alsofeatures the open standard embedded serial and debug adapter known as OpenSDA.This circuit offers several options for serial communications, flash programmingand run control debugging.Capacitive touch sliderMMA8451Q accelerometerTri colour (RGB) LEDFlexible power supply options like USB, coin cell battery, external sourceBattery ready, power measurement access pointsEasy access to MCU I/O via Arduino R3 compatible I/O connectorsMass storage device flash programming interfaceCMSIS-DAP interface (new ARM standard for embedded debug interface)Data logging
