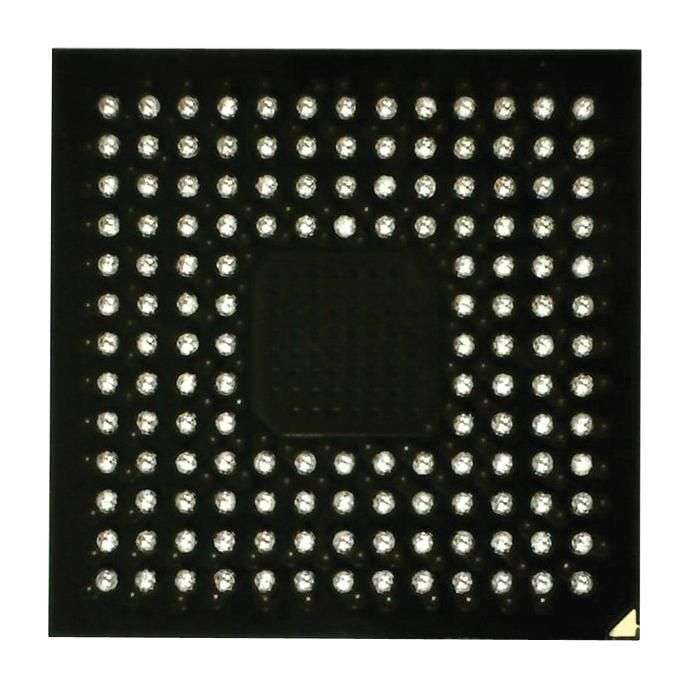

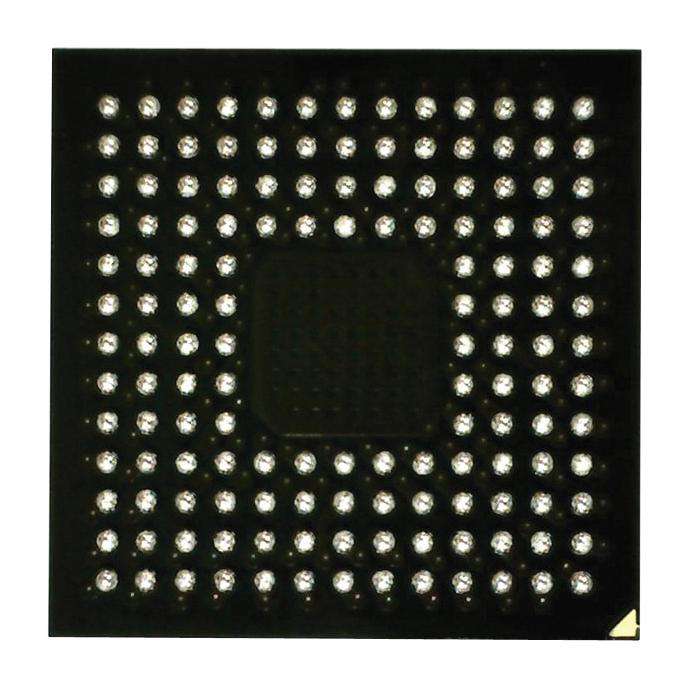

Nxp (LPC1768FET100,551) ARM MCU, 32 bit, 100 MHz, 512 KB

ARM MCU, LPC Family LPC1700 Series Microcontrollers, ARM Cortex-M3, 32 bit, 100MHz, 512 KBProduct OverviewThe LPC1768FET100,551 is a 512kB flash 64kB SRAM Ethernet USB Cortex-M3Microcontroller Unit for embedded applications featuring a high level ofintegration and low power consumption at frequencies of 100MHz. It featuresEthernet MAC, USB device, 8-channel DMA controller, quadrature encoderinterface, 6-output general purpose PWM, ultra-low power real-time clock withseparate battery supply and up to 70 general purpose I/O pins.ARM Cortex-M3 built-in nested vectored interrupt controller8-channel General purpose DMA controllerMultilayer AHB matrix interconnect provides a separate bus for each AHB masterFour UARTs with fractional baud rate generationOne standard PWM/timer block with external count inputWatchdog timerStandard JTAG test/debug interfaceIntegrated PMU (power management unit)ApplicationsMetering, Lighting, Communications & Networking, Industrial, SecurityProduct InformationProduct Range: LPC Family LPC1700 Series MicrocontrollersDevice Core: ARM Cortex-M3No. of Bits: 32bitData Bus Width: 32bitOperating Frequency Max: 100MHzCPU Speed: 100MHzProgram Memory Size: 512KBRAM Memory Size: 64KBIC Case / Package: TFBGANo. of Pins: 100PinsMCU Case Style: TFBGANo. of I/O's: 70I/O'sInterfaces: CAN, I2C, I2S, SPI, UARTEmbedded Interface Type: CAN, I2C, I2S, SPI, UARTSupply Voltage Min: 2.4VSupply Voltage Max: 3.6VMCU Family: LPCMCU Series: LPC1700Operating Temperature Min: -40°COperating Temperature Max: 85°C
