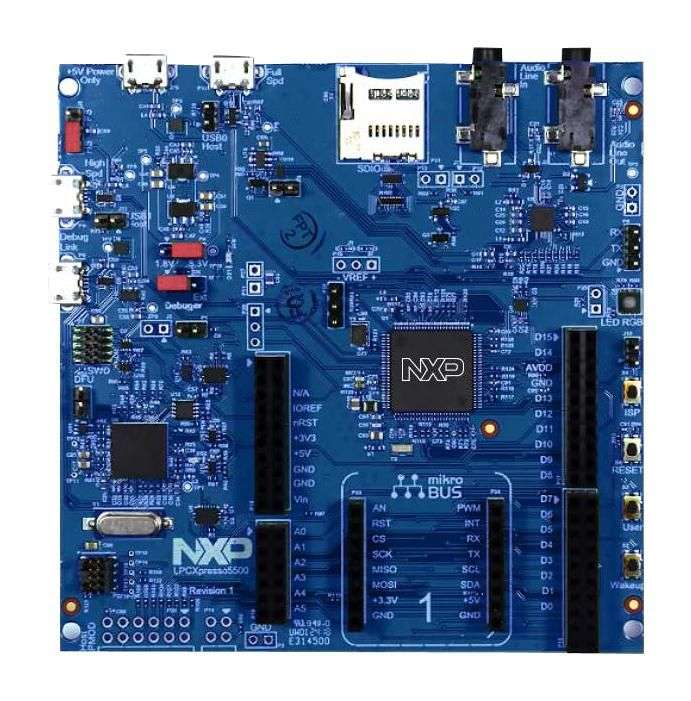

NXP (LPC55S69-EVK) Development Board, LPCXpresso55S69, LPC55S69 MCU

Product InformationSilicon Manufacturer: NXPNo. of Bits: 32bitSilicon Family Name: LPCXpressoCore Architecture: ARMCore Sub-Architecture: Cortex-M33Silicon Core Number: LPC55S69Kit Contents: Dev Board LPCXpresso55S69Product Range: -Product OverviewLPCXpresso55S69 development board provides ideal platform for evaluation of anddevelopment with the LPC55S6x MCU based on the Arm® Cortex®-M33 architecture.The board includes a high performance on-board debug probe, audio subsystem andaccelerometer with several options for adding off-the-shelf add-on boards fornetworking, sensors, displays and other interfaces. The LPCXpresso55S69 is fullysupported by the MCUXpresso suite of tools, which provides device drivers,middleware and examples to allow rapid development, plus configuration tools andan optional free IDE. MCUXpresso software is compatible with the open source MCUoperating system FreeRTOS, tools from popular tool vendors such as Arm and IARand the LPCXpresso55S69 may also be used with the popular debug probes availablefrom SEGGER and P&E Micro.LPC55S69 dual core Arm Cortex-M33 microcontroller running at up to 150MHzUART and SPI port bridging from LPC55S69 target to USB via the on-board debugprobeHigh and full speed USB ports with micro A/B connector for host or devicefunctionalityOn-board, high-speed USB, Link2 debug probe with CMSIS-DAP and SEGGER J-Linkprotocol optionsHardware support for external debug probeNXP MMA8652FCR1 accelerometer and stereo audio codec with a line in/outMikroEletronika click expansion optionLPCXpresso-V3 expansion connectors compatible with Arduino® UNO Rev3PMod compatible expansion / host connectorRGB user LED, plus Reset, ISP, wake and user buttons
