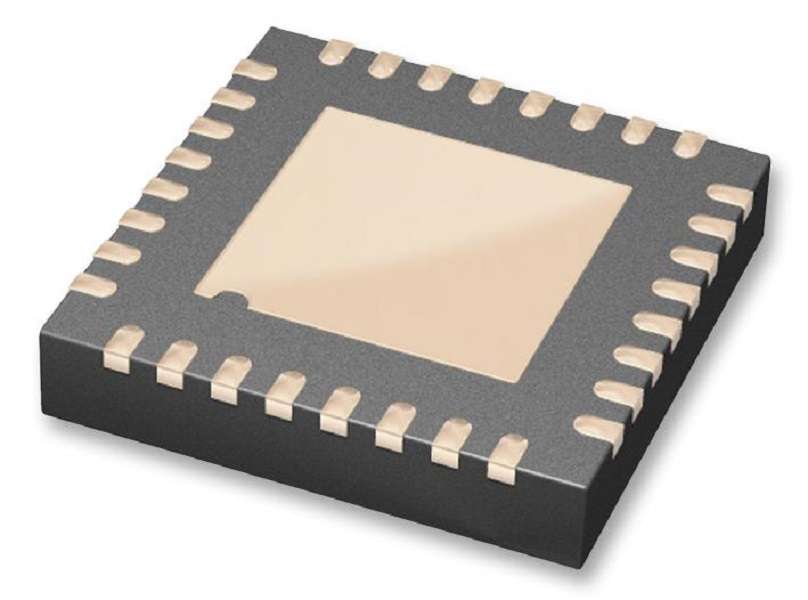

Nxp (MFRC52202HN1,151) RFID IC, 13.56 MHz, Reader, 5 µA, 2.5 V to 3.6 V

RFID IC, 13.56 MHz, Reader, 5 µA, 2.5 V to 3.6 V supply, HVQFN-32Product OverviewThe MFRC52202HN1,151 is a highly integrated Reader/Writer IC for contactlesscommunication and supports ISO/IEC 14443 A/MIFARE mode. The internal transmitteris able to drive a reader/writer antenna designed to communicate with ISO/IEC14443 A/MIFARE cards and transponders without additional active circuitry. Thereceiver module provides a robust and efficient implementation for demodulatingand decoding signals from ISO/IEC 14443 A/MIFARE compatible cards andtransponders. The digital module manages the complete ISO/IEC 14443 A framingand error detection (parity and CRC) functionality. The MFRC522 supportscontactless communication and uses MIFARE higher transfer speeds up to 848kBd inboth directions.Highly integrated analogue circuitry to demodulate and decode responsesBuffered output drivers for connecting an antenna with the minimum number ofexternal componentsTypical operating distance in read/write mode up to 50mm depending on theantenna size and tuningSupports MFIN/MFOUTAdditional internal power supply to the smart card IC connected via MFIN/MFOUTFIFO buffer handles 64-byte send and receiveApplicationsCommunications & Networking, Signal ProcessingProduct InformationFrequency Max: 13.56MHzRFID IC Type: ReaderRF IC Case Style: HVQFNNo. of Pins: 32PinsSupply Voltage Min: 2.5VSupply Voltage Max: 3.6VCurrent Consumption: 5µAProduct Range: MFRC522
