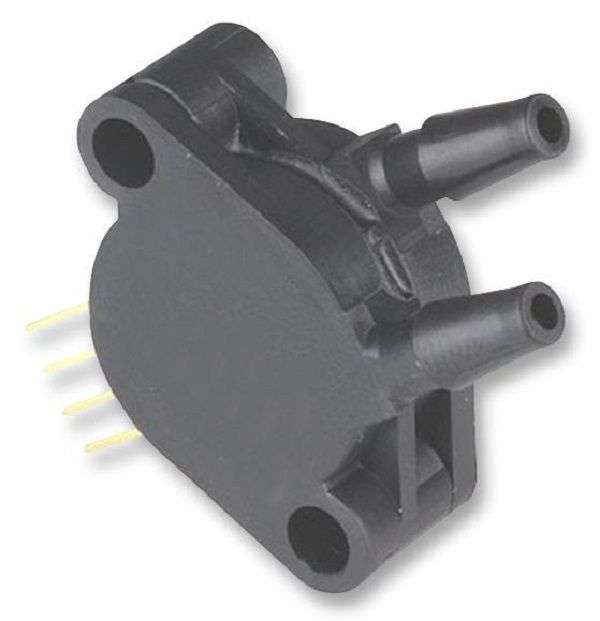

Nxp (MPX10DP) Pressure Sensor, Differential, 3.5 mV/kPa, 0 kPa, 10 kPa

Pressure Sensor, Differential, 3.5 mV/kPa, 0 kPa, 10 kPa, 3 V, 6 VProduct OverviewThe MPX10DP is a dual-port uncompensated silicon Pressure Sensor forenvironmental control systems and level indicators. The MPX10 series siliconpiezoresistive pressure sensor provides a very accurate and linear voltageoutput, directly proportional to the applied pressure. This standarduncompensated sensor permits manufacturers to design and add their own externaltemperature compensation and signal conditioning networks. Compensationtechniques are simplified because of the predictability of NXP's single elementstrain gauge design.Patented silicon shear stress strain gauge designRatiometric to supply voltageAvailable in differential configurationApplicationsSensing & Instrumentation, Medical, Industrial, Robotics, Automation & ProcessControlProduct InformationPressure Type: DifferentialSensitivity, V/P: 3.5mV/kPaOperating Pressure Min: 0kPaOperating Pressure Max: 10kPaSupply Voltage Min: 3VSupply Voltage Max: 6VSensor Case Style: SIPNo. of Pins: 4PinsOperating Temperature Min: -40°COperating Temperature Max: 125°CProduct Range: MPX10
